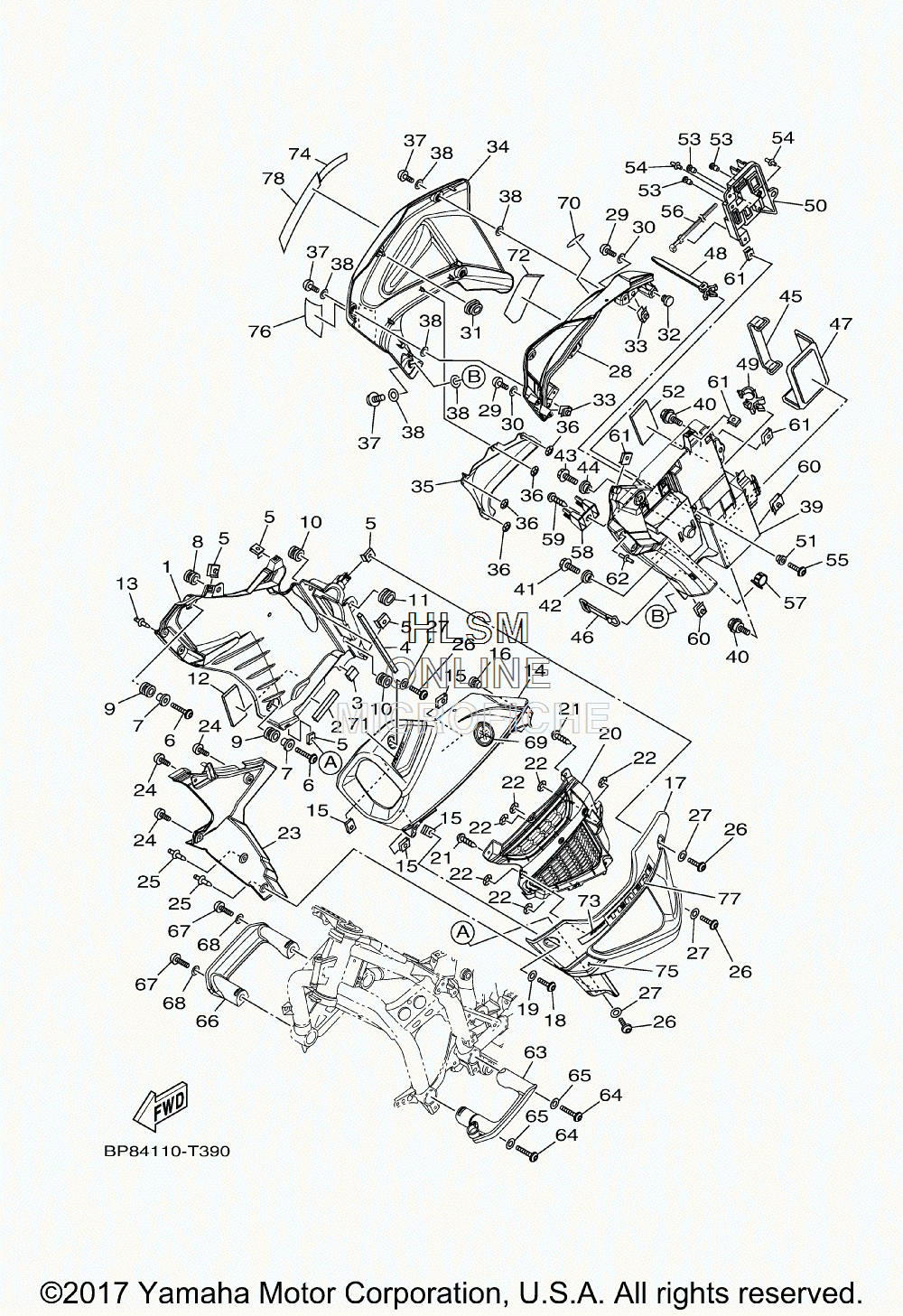

COWLING для Yamaha SUPER TENERE - 2018 года выпуска
-
№АртикулНазвание
-
123P-2137U-00-00 GUIDE, AIR 1GUIDE, AIR 1
-
290520-10006-00 DAMPER, PLATEDAMPER, PLATE
-
390520-10007-00 DAMPER, PLATEDAMPER, PLATE
-
42D1-2174Y-00-00 DAMPERDAMPER
-
590183-05076-00 NUT, SPRINGNUT, SPRING
-
690111-06137-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
790387-07042-00 COLLARCOLLAR
-
890480-12596-00 GROMMETGROMMET
-
990480-14452-00 GROMMETGROMMET
-
1090480-18431-00 GROMMETGROMMET
-
1190480-01558-00 GROMMETGROMMET
-
125XT-21746-00-00 DAMPERDAMPER
-
1390269-06008-00 RIVETRIVET
-
1423P-2842M-00-P6 COVER 1 (MBL2 - MAT BLACK FOR DPBMC - BLUE)COVER 1 (MBL2 - MAT BLACK FOR DPBMC - BLUE)
-
1590183-05076-00 NUT, SPRINGNUT, SPRING
-
1690338-10132-00 PLUGPLUG
-
1723P-2835U-00-P1 PANEL 1 (MBL2 - MAT BLACK FOR DPBMC - BLUE)PANEL 1 (MBL2 - MAT BLACK FOR DPBMC - BLUE)
-
1890111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1990202-05180-00 WASHER, PLATEWASHER, PLATE
-
2023P-2837V-00-00 GRILL, AIR OUTLET 1GRILL, AIR OUTLET 1
-
2197702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
2290183-05M02-00 NUT, SPRINGNUT, SPRING
-
2323P-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
2490111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2590269-06008-00 RIVETRIVET
-
2690111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2790202-05180-00 WASHER, PLATEWASHER, PLATE
-
2823P-2842N-00-P6 COVER 2 (MBL2 - MAT BLACK FOR DPBMC - BLUE)COVER 2 (MBL2 - MAT BLACK FOR DPBMC - BLUE)
-
2990111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3090202-05180-00 WASHER, PLATEWASHER, PLATE
-
3190480-01558-00 GROMMETGROMMET
-
3290338-10132-00 PLUGPLUG
-
335PW-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
3423P-2835V-00-P1 PANEL 2 (MBL2 - MAT BLACK FOR DPBMC - BLUE)PANEL 2 (MBL2 - MAT BLACK FOR DPBMC - BLUE)
-
3523P-28365-00-00 COVERCOVER
-
3690183-05M02-00 NUT, SPRINGNUT, SPRING
-
3714B-28386-00-00 HEADHEAD
-
382TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
3923P-8210E-01-00 BATTERY BOX ASSYBATTERY BOX ASSY
-
4090109-06171-00 BOLTBOLT
-
4195822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4290387-06153-00 COLLARCOLLAR
-
4395802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4490387-066R8-00 COLLARCOLLAR
-
45137-82131-01-00 BAND, BATTERYBAND, BATTERY
-
46116-82131-00-00 BAND, BATTERYBAND, BATTERY
-
4723P-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
4890464-50001-00 CLAMPCLAMP
-
4990464-16006-00 CLAMPCLAMP
-
5023P-28396-00-00 PLATE 1PLATE 1
-
5190387-06184-00 COLLARCOLLAR
-
525TH-21268-01-00 SEALSEAL
-
5390338-06018-00 PLUGPLUG
-
5490269-06008-00 RIVETRIVET
-
5590111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5690464-34002-00 CLAMPCLAMP
-
5790464-20021-00 CLAMPCLAMP
-
5823P-28321-00-00 STAY 1STAY 1
-
5997702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
605PW-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
6190183-05076-00 NUT, SPRINGNUT, SPRING
-
6290269-06008-00 RIVETRIVET
-
6323P-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
6492012-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6590201-08043-00 WASHER, PLATEWASHER, PLATE
-
6623P-2834W-00-00 PROTECTOR 2PROTECTOR 2
-
6792012-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6890201-08043-00 WASHER, PLATEWASHER, PLATE
-
695YU-2411B-01-00 EMBLEMEMBLEM
-
705YU-2411B-01-00 EMBLEMEMBLEM
-
71BP8-28391-10-00 GRAPHIC 1GRAPHIC 1
-
72BP8-28392-10-00 GRAPHIC 2GRAPHIC 2
-
73BP8-28315-10-00 EMBLEMEMBLEM
-
74BP8-28315-10-00 EMBLEMEMBLEM
-
75BP8-28393-00-00 GRAPHIC 3GRAPHIC 3
-
76BP8-28394-00-00 GRAPHIC 4GRAPHIC 4
-
77BP8-2839B-00-00 EMBLEM 3DEMBLEM 3D
-
78BP8-2839B-00-00 EMBLEM 3DEMBLEM 3D
