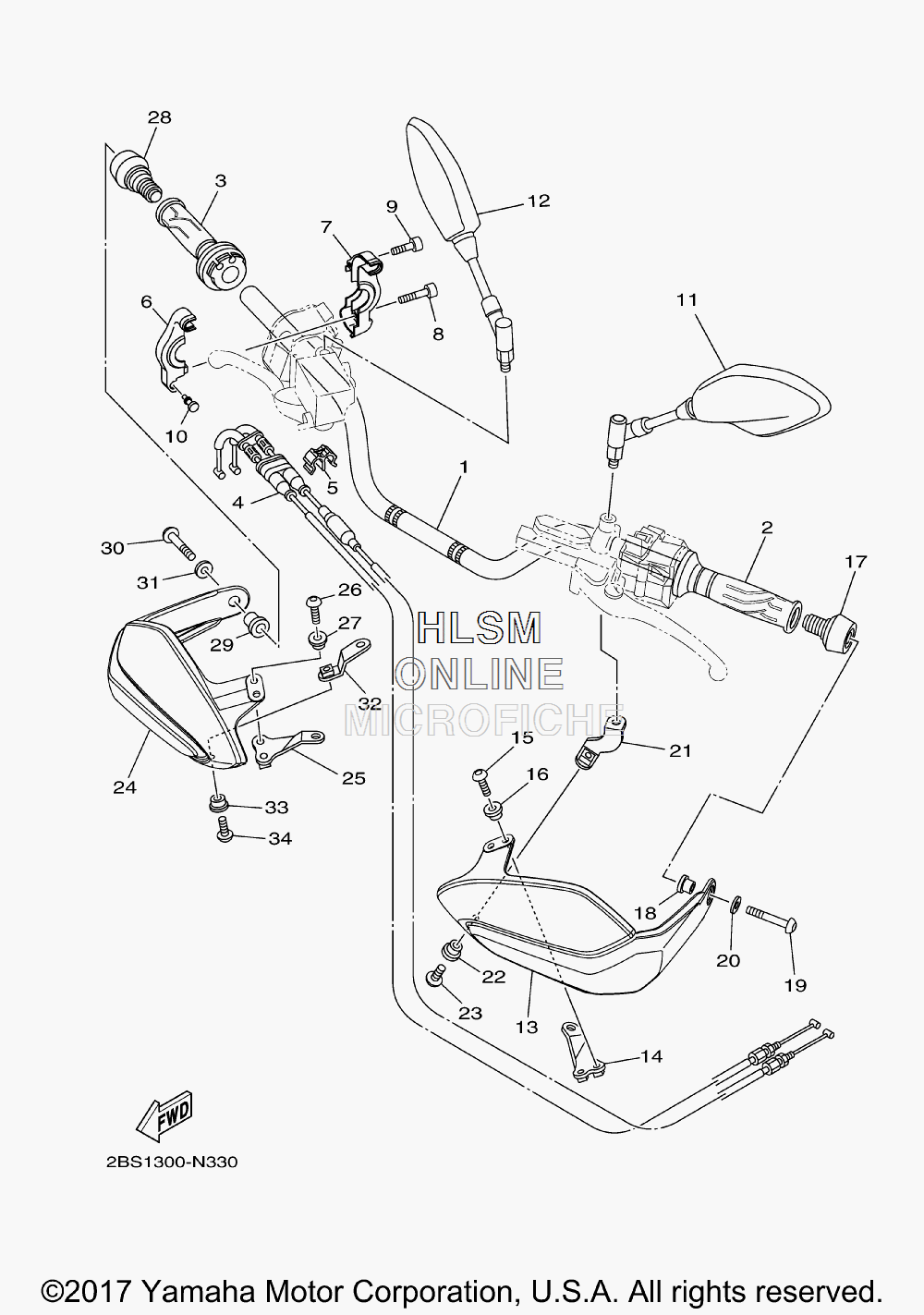

HANDLEBAR W/ CABLES для Yamaha SUPER TENERE - 2018 года выпуска
-
№АртикулНазвание
-
12BS-26111-00-00 HANDLEBARHANDLEBAR
-
25JW-26241-00-00 GRIPGRIP
-
32BS-26240-00-00 GRIP ASSYGRIP ASSY
-
42BS-26302-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
590464-07M20-00 CLAMPCLAMP
-
62BS-26281-00-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
72BS-26282-00-00 CAP, GRIP UNDERCAP, GRIP UNDER
-
891317-05025-00 BOLT, HEX.SOCKET HEADBOLT, HEX.SOCKET HEAD
-
991317-05020-00 BOLT, HEX.SOCKET HEADBOLT, HEX.SOCKET HEAD
-
1090338-07008-00 PLUGPLUG
-
112BS-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
122BS-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
1323P-26141-01-00 GUARD, BRUSH 1GUARD, BRUSH 1
-
1423P-26223-00-00 BRACKET, HANDLE 1BRACKET, HANDLE 1
-
1592014-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1690387-05017-00 COLLARCOLLAR
-
172BS-26246-00-00 END, GRIPEND, GRIP
-
1890387-08089-00 COLLARCOLLAR
-
1992012-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2090201-086P8-00 WASHER, PLATEWASHER, PLATE
-
2123P-2622A-00-00 BRACKET, HANDLE 3BRACKET, HANDLE 3
-
2290387-05021-00 COLLARCOLLAR
-
2390111-05031-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2423P-26142-01-00 GUARD, BRUSH 2GUARD, BRUSH 2
-
2523P-26224-00-00 BRACKET, HANDLE 2BRACKET, HANDLE 2
-
2692014-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2790387-05017-00 COLLARCOLLAR
-
282BS-26246-00-00 END, GRIPEND, GRIP
-
2990387-08089-00 COLLARCOLLAR
-
3092012-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3190201-086P8-00 WASHER, PLATEWASHER, PLATE
-
3223P-2622E-00-00 BRACKET, HANDLE 4BRACKET, HANDLE 4
-
3390387-05021-00 COLLARCOLLAR
-
3490111-05031-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
