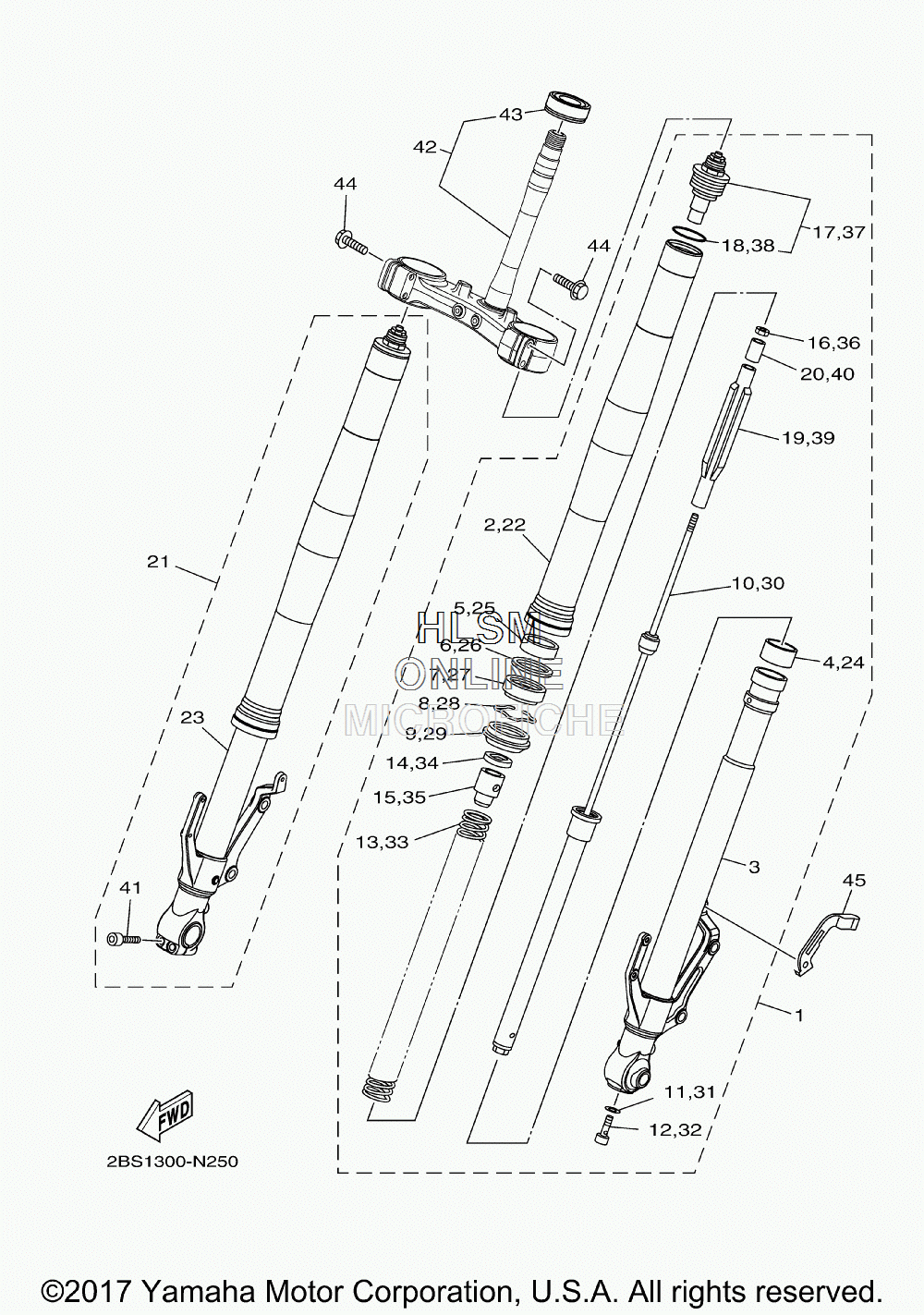

SUSPENSION - FRONT FORK для Yamaha SUPER TENERE - 2018 года выпуска
-
№АртикулНазвание
-
12BS-23102-20-00 FRONT FORK ASSY (LEFT)FRONT FORK ASSY (LEFT)
-
22BS-23136-20-00 ...TUBE, OUTER 2 (L.H.)...TUBE, OUTER 2 (L.H.)
-
323P-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
45EB-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
55EB-23125-00-00 ...METAL, SLIDE 1 (KYB)...METAL, SLIDE 1 (KYB)
-
64V4-23146-L0-00 ...WASHER, OIL SEAL (KYB)...WASHER, OIL SEAL (KYB)
-
74PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
84V4-23153-L0-00 ...RING, SNAP (KYB)...RING, SNAP (KYB)
-
94PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
102BS-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
11509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
125UX-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1323P-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
145VY-12277-00-00 ...WASHER...WASHER
-
1523P-23118-00-00 ...SPACER...SPACER
-
163LC-23357-00-00 ...NUT...NUT
-
175SL-23111-41-00 ...BOLT, CAP...BOLT, CAP
-
183XJ-23147-L0-00 ......O-RING......O-RING
-
1923P-23117-00-00 ...GUIDE, SPRING...GUIDE, SPRING
-
2023P-23113-00-00 ...COLLAR...COLLAR
-
212BS-23103-20-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
222BS-23136-20-00 ...TUBE, OUTER 2 (R.H.)...TUBE, OUTER 2 (R.H.)
-
2323P-23120-00-00 ......INNER TUBE COMP. 2......INNER TUBE COMP. 2
-
245EB-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
255EB-23125-00-00 ...METAL, SLIDE 1 (KYB)...METAL, SLIDE 1 (KYB)
-
264V4-23146-L0-00 ...WASHER, OIL SEAL (KYB)...WASHER, OIL SEAL (KYB)
-
274PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
284V4-23153-L0-00 ...RING, SNAP (KYB)...RING, SNAP (KYB)
-
294PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
302BS-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
31509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
325UX-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
3323P-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
345VY-12277-00-00 ...WASHER...WASHER
-
3523P-23118-00-00 ...SPACER...SPACER
-
363LC-23357-00-00 ...NUT...NUT
-
375SL-23111-41-00 ...BOLT, CAP...BOLT, CAP
-
383XJ-23147-L0-00 ......O-RING......O-RING
-
3923P-23117-00-00 ...GUIDE, SPRING...GUIDE, SPRING
-
4023P-23113-00-00 ...COLLAR...COLLAR
-
4191314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
4223P-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4393332-00081-00 ...BEARING...BEARING
-
4495022-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4523P-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
