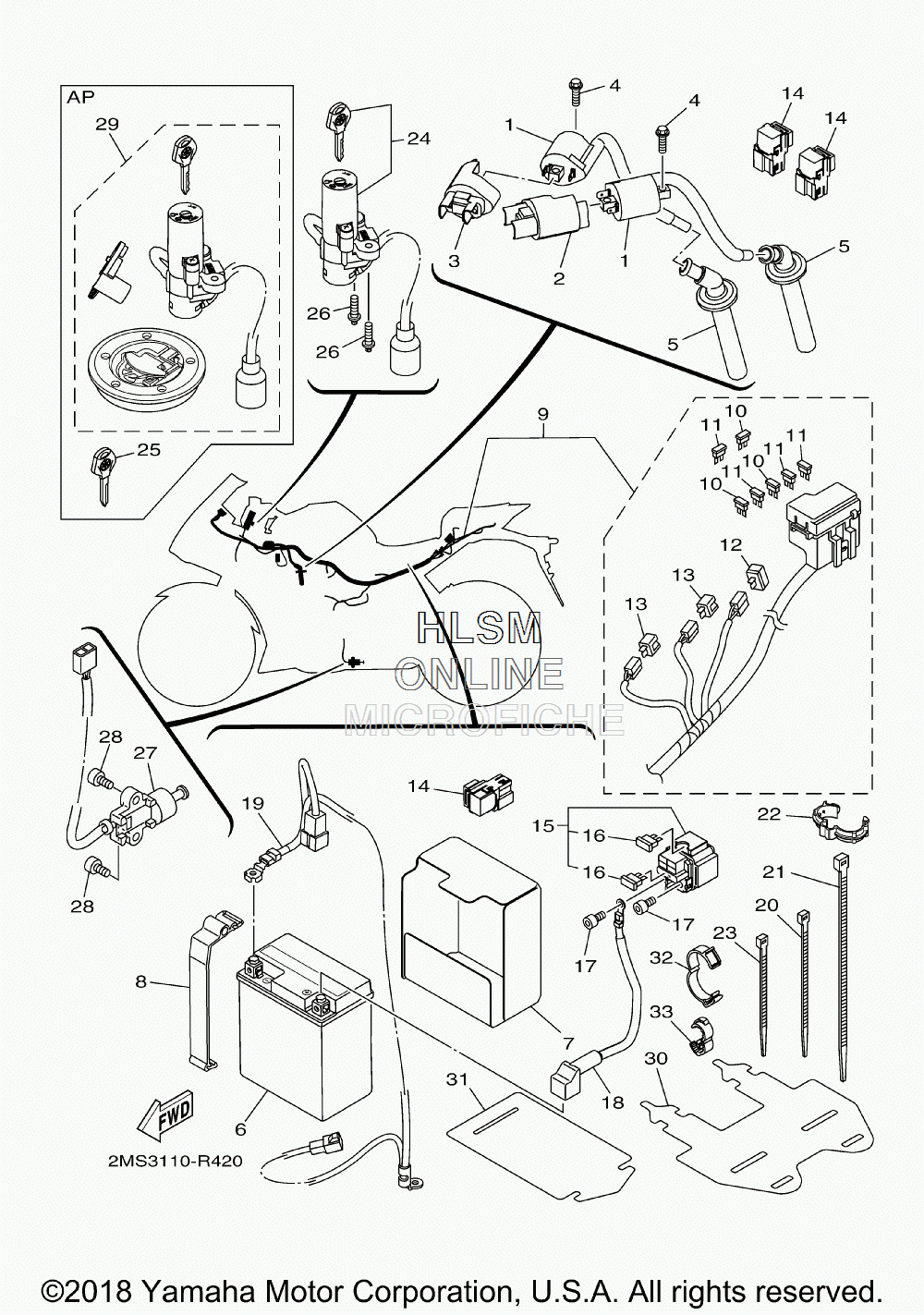

ELECTRICAL для Yamaha YZFR3 - 2018 года выпуска
-
№АртикулНазвание
-
11WD-H2310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
2B04-H2314-00-00 COVER, IGNITION COILCOVER, IGNITION COIL
-
3B04-H2314-10-00 COVER, IGNITION COILCOVER, IGNITION COIL
-
495022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
51WD-H2370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
61WD-H2100-00-00 BATTERY ASSY (GS GTZ8V)BATTERY ASSY (GS GTZ8V)
-
71WD-H2121-00-00 PAD, BATTERYPAD, BATTERY
-
81WD-H2131-00-00 BAND, BATTERYBAND, BATTERY
-
92MS-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
101WD-H2151-20-00 ...FUSE (7.5A BL)...FUSE (7.5A BL)
-
111WD-H2151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
124WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
133WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
141WD-H1950-00-00 RELAY ASSYRELAY ASSY
-
151WD-H1940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
161WD-H2151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
1791312-05008-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
181WD-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
191WD-H2116-01-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
2090464-36800-00 CLAMPCLAMP
-
2190464-70800-00 CLAMPCLAMP
-
2290464-14803-00 CLAMPCLAMP
-
2390464-22800-00 CLAMPCLAMP
-
241WD-H2501-02-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
251WD-H2511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
2690109-060G4-00 BOLTBOLT
-
271WD-H2566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2890110-05809-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
291WD-XH250-02-00 MAIN SWITCH STEERING LOCK SUB A (OPT)MAIN SWITCH STEERING LOCK SUB A (OPT)
-
301WD-F179E-00-00 BANDBAND
-
311WD-H2591-00-00 BANDBAND
-
3290464-26001-00 CLAMPCLAMP
-
3390464-13227-00 CLAMPCLAMP
