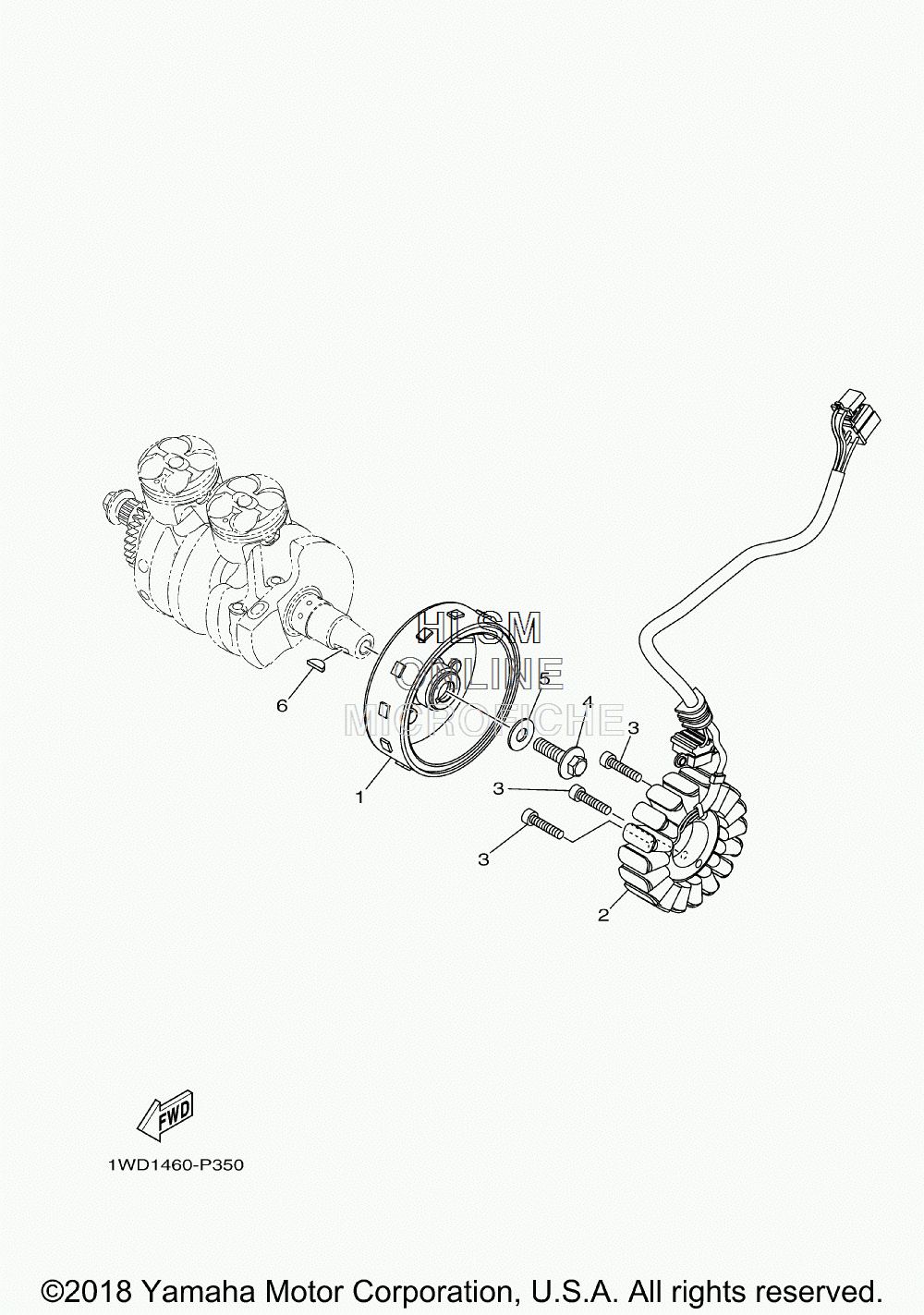

GENERATOR для Yamaha YZFR3 - 2018 года выпуска
-
№АртикулНазвание
-
11WD-H1450-00-00 ROTOR ASSYROTOR ASSY
-
21WD-H1410-01-00 STATOR ASSYSTATOR ASSY
-
391312-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490105-10883-00 BOLT, FLANGEBOLT, FLANGE
-
590201-102R1-00 WASHER, PLATEWASHER, PLATE
-
690280-05013-00 KEY, WOODRUFFKEY, WOODRUFF
