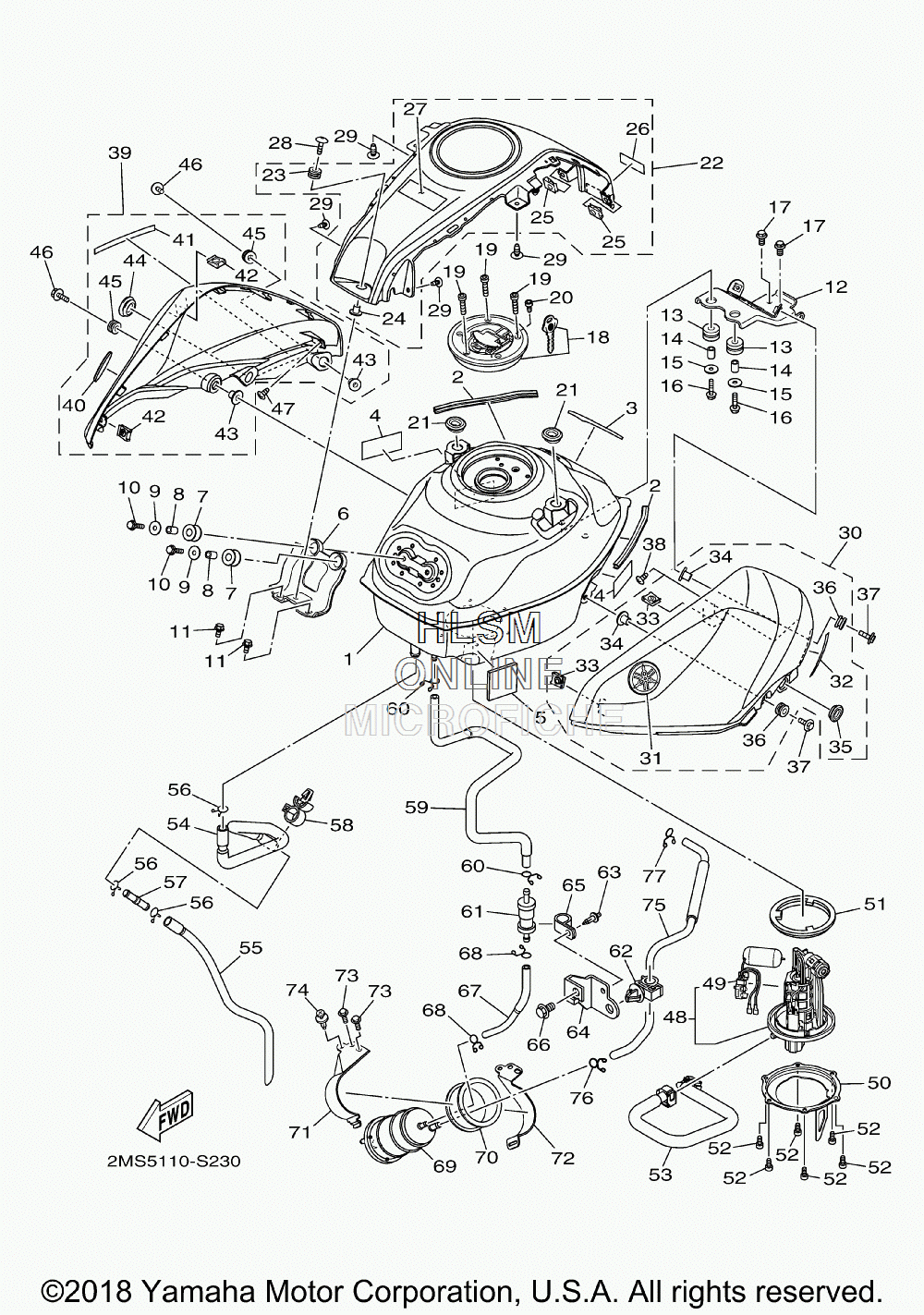

FUEL TANK для Yamaha YZFR3 - 2018 года выпуска
-
№АртикулНазвание
-
11WD-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
21WD-F4188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
390520-03823-00 DAMPER, PLATEDAMPER, PLATE
-
45D9-F414G-00-00 SEALSEAL
-
545P-F414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
61WD-F412Y-01-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
71WD-F4339-00-00 GROMMETGROMMET
-
890387-06299-00 COLLARCOLLAR
-
990201-06380-00 WASHER PLAINWASHER PLAIN
-
1095822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1195812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
121WD-F4191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
1390480-15807-00 GROMMETGROMMET
-
1490387-06299-00 COLLARCOLLAR
-
1590201-06380-00 WASHER PLAINWASHER PLAIN
-
1695822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1795022-08014-00 BOLT, FLANGEBOLT, FLANGE
-
181WD-WF461-00-00 CAP ASSYCAP ASSY
-
1990110-05806-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2091312-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2190480-01558-00 GROMMETGROMMET
-
221WD-XF41D-30-P3 COVER, TANK (SMX - BLACK METALLIC FOR DPBMC - BLUE)COVER, TANK (SMX - BLACK METALLIC FOR DPBMC - BLUE)
-
221WD-XF41D-D0-P0 COVER, TANK (MBL2 - MAT BLACK FOR SMX - BLACK METALLIC X)COVER, TANK (MBL2 - MAT BLACK FOR SMX - BLACK METALLIC X)
-
2390480-12808-00 ...GROMMET...GROMMET
-
2490387-06899-00 ...COLLAR...COLLAR
-
2590183-05807-00 ...NUT, SPRING...NUT, SPRING
-
261WD-F414G-00-00 ...SEAL...SEAL
-
271TP-2118K-A1-00 ...LABEL, CAUTION...LABEL, CAUTION
-
2890111-06117-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2997707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
301WD-XF41C-10-P1 TANK SIDE COVER 1 (DPBMC - DEEP PURPLISH BLUE)TANK SIDE COVER 1 (DPBMC - DEEP PURPLISH BLUE)
-
301WD-XF41C-10-P0 TANK SIDE COVER 1 (SMX - BLACK METALLIC X)TANK SIDE COVER 1 (SMX - BLACK METALLIC X)
-
311WD-F413B-00-00 ...EMBLEM...EMBLEM
-
321WD-F414E-00-00 ...SEAL 2...SEAL 2
-
3390183-05807-00 ...NUT, SPRING...NUT, SPRING
-
3490387-06899-00 ...COLLAR...COLLAR
-
3590480-01559-00 ...GROMMET...GROMMET
-
3690480-12808-00 ...GROMMET...GROMMET
-
3790119-05020-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3897707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
391WD-XF413-10-P1 TANK SIDE COVER 2 (DPBMC - DEEP PURPLISH BLUE)TANK SIDE COVER 2 (DPBMC - DEEP PURPLISH BLUE)
-
391WD-XF413-10-P0 TANK SIDE COVER 2 (SMX - BLACK METALLIC X)TANK SIDE COVER 2 (SMX - BLACK METALLIC X)
-
401WD-F413B-00-00 ...EMBLEM...EMBLEM
-
411WD-F414E-00-00 ...SEAL 2...SEAL 2
-
4290183-05807-00 ...NUT, SPRING...NUT, SPRING
-
4390387-06899-00 ...COLLAR...COLLAR
-
4490480-01559-00 ...GROMMET...GROMMET
-
4590480-12808-00 ...GROMMET...GROMMET
-
4690119-05020-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4797707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
481WD-E3907-11-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
491WD-H5752-00-00 ...SENDER UNIT ASSY, FUEL METER...SENDER UNIT ASSY, FUEL METER
-
501WD-F4491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
513C1-F4486-00-00 O-RINGO-RING
-
5291312-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
531WD-E3971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
541WD-F4312-00-00 PIPE 2PIPE 2
-
551WD-F4314-00-00 PIPE 4PIPE 4
-
5690467-15012-00 CLIPCLIP
-
571WD-F4376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
5890464-16012-00 CLAMPCLAMP
-
592MS-F4314-01-00 PIPE 4PIPE 4
-
6090467-09006-00 CLIPCLIP
-
611DW-F4180-02-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
6290464-10008-00 CLAMPCLAMP
-
6390269-05008-00 RIVETRIVET
-
642MS-F419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
6590464-15014-00 CLAMPCLAMP
-
6695027-08012-00 BOLT, FLANGEBOLT, FLANGE
-
672MS-F4315-00-00 PIPE 5PIPE 5
-
6890467-09006-00 CLIPCLIP
-
692MS-F4170-00-00 CANISTER ASSYCANISTER ASSY
-
702MS-F483H-00-00 BANDBAND
-
712MS-F115R-00-00 BRACKET, CANISTERBRACKET, CANISTER
-
722MS-F134X-00-00 BRACKET, CANISTERBRACKET, CANISTER
-
7395027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
7490269-06081-00 RIVETRIVET
-
752MS-F4316-00-00 PIPE 6PIPE 6
-
7690467-11009-00 CLIPCLIP
-
7790467-09006-00 CLIPCLIP
