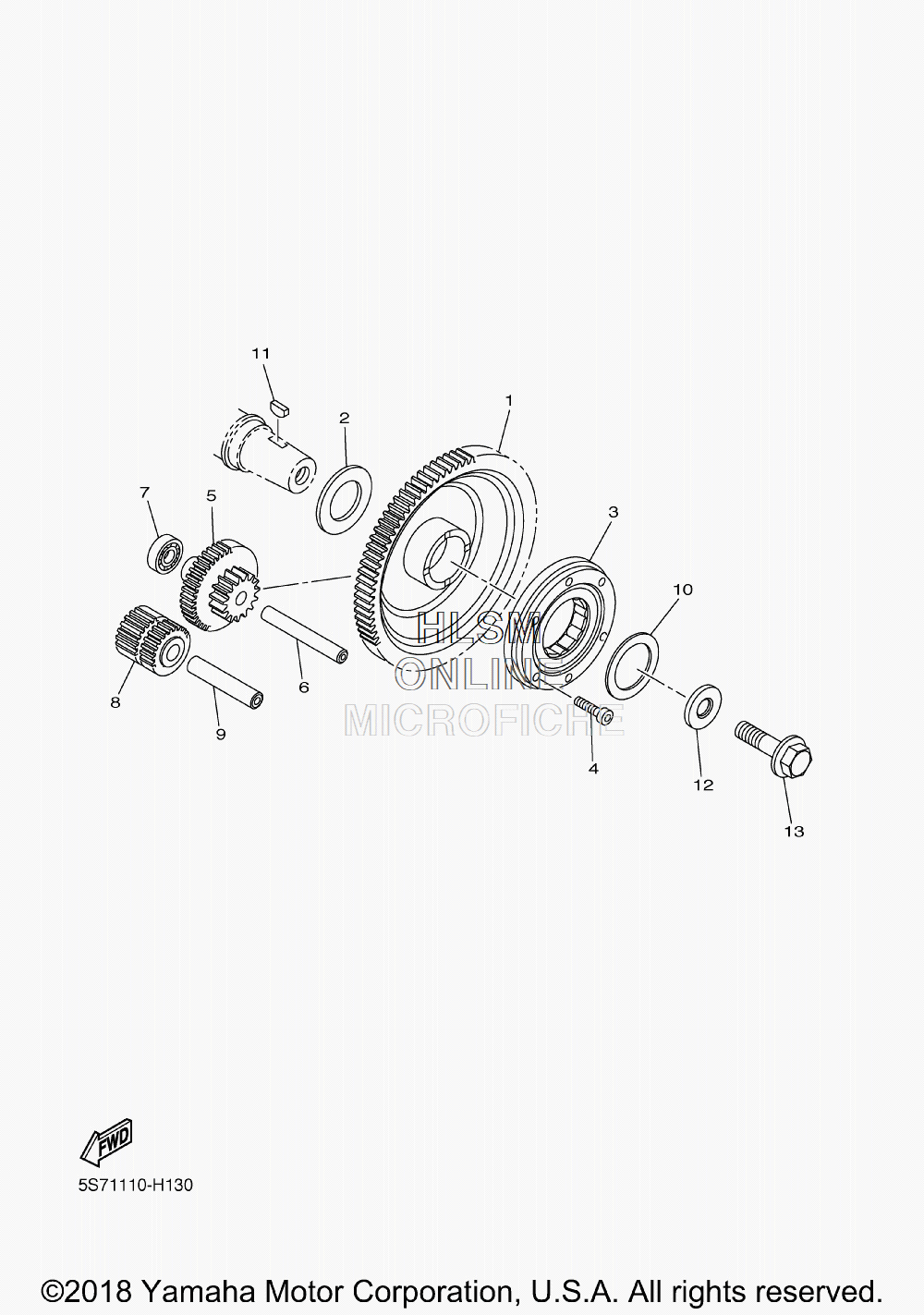

STARTER для Yamaha BOLT R-SPEC - 2019 года выпуска
-
№АртикулНазвание
-
15S7-15515-00-00 GEAR 3GEAR 3
-
25S7-15561-00-00 WASHERWASHER
-
34NK-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
490110-08067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
55S7-15512-01-00 GEAR, IDLER 1GEAR, IDLER 1
-
61D7-15521-00-00 SHAFT 1SHAFT 1
-
793306-00006-00 BEARINGBEARING
-
83D8-15512-01-00 GEAR, IDLER 1GEAR, IDLER 1
-
94WM-15522-00-00 SHAFT 2SHAFT 2
-
1090201-350F3-00 WASHER, PLATEWASHER, PLATE
-
1190280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
1290201-12008-00 WASHER, PLATEWASHER, PLATE
-
1390105-12584-00 BOLT, FLANGEBOLT, FLANGE
