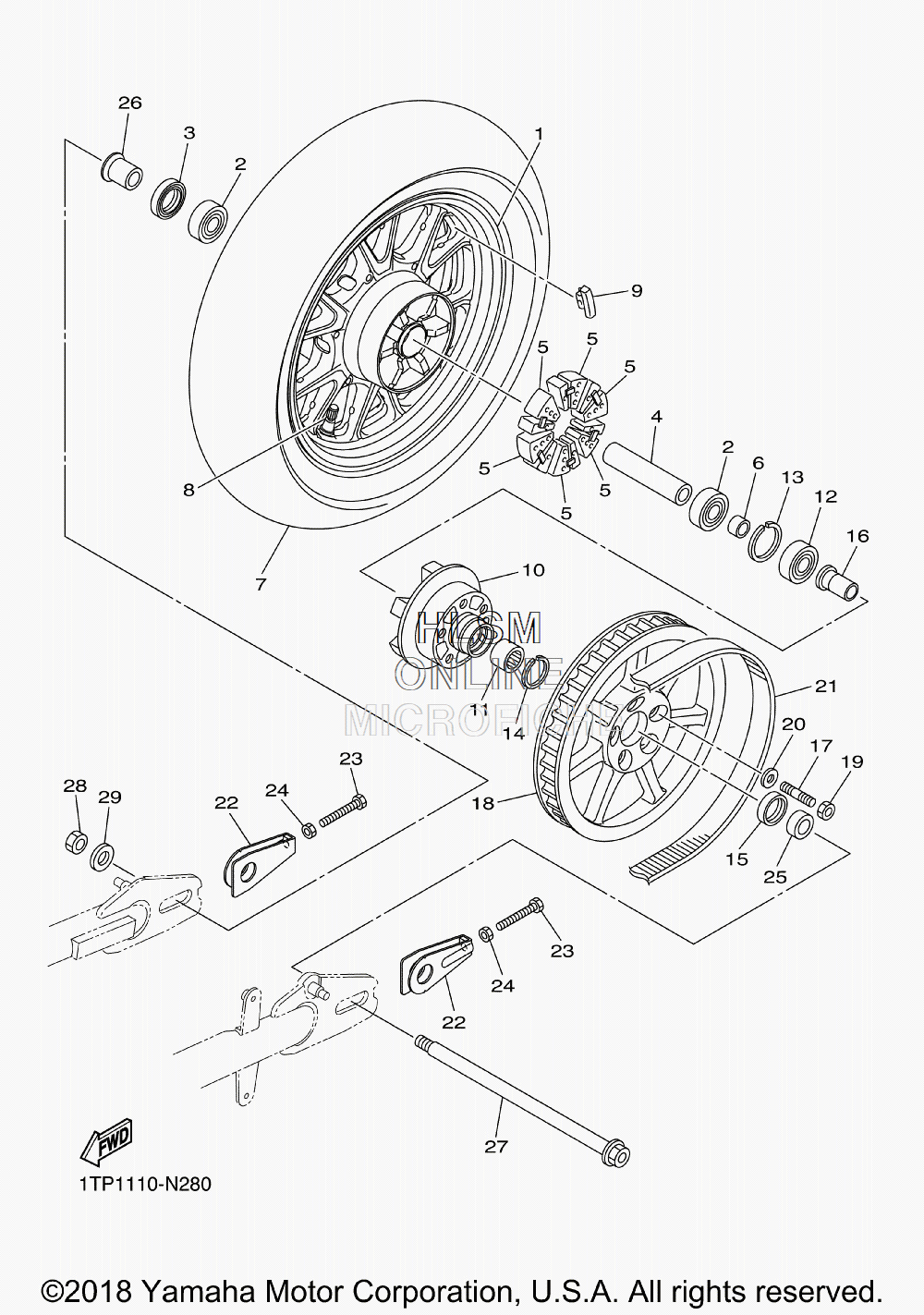

WHEEL - REAR для Yamaha BOLT R-SPEC - 2019 года выпуска
-
№АртикулНазвание
-
11TP-25338-10-0X CAST WHEEL, REAR (LGB - GLOSS BLACK/HTR - HEAT RED)CAST WHEEL, REAR (LGB - GLOSS BLACK/HTR - HEAT RED)
-
293306-20417-00 BEARINGBEARING
-
393106-28023-00 OIL SEALOIL SEAL
-
41TP-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
54WM-25364-00-00 DAMPERDAMPER
-
61TP-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
794115-16025-00 TIRE (150/80B16 M/C 71H EXEDR) (BRIDGESTONE)TIRE (150/80B16 M/C 71H EXEDR) (BRIDGESTONE)
-
893900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
95MT-25398-00-00 BALANCER, WHEEL (10G) (UN)BALANCER, WHEEL (10G) (UN)
-
95MT-25398-10-00 BALANCER, WHEEL (20G) (UN)BALANCER, WHEEL (20G) (UN)
-
95MT-25398-20-00 BALANCER, WHEEL (30G) (UN)BALANCER, WHEEL (30G) (UN)
-
101TP-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1193311-32698-00 BEARINGBEARING
-
1293306-30437-00 BEARINGBEARING
-
1399009-52500-00 CIRCLIPCIRCLIP
-
1493450-35163-00 CIRCLIPCIRCLIP
-
1593106-30004-00 OIL SEALOIL SEAL
-
164WM-25376-10-00 COLLAR, WHEELCOLLAR, WHEEL
-
1795612-12630-00 BOLT, STUDBOLT, STUD
-
181TP-25470-00-00 SPROCKET, DRIVEN(70T)SPROCKET, DRIVEN(70T)
-
1995614-12100-00 NUT, UNUT, U
-
2090201-12045-00 WASHER, PLATEWASHER, PLATE
-
211TP-46241-10-00 BELTBELT
-
221TP-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
2390101-08777-00 BOLTBOLT
-
2495317-08700-00 NUTNUT
-
2590387-20034-00 COLLARCOLLAR
-
2690387-202U8-00 COLLARCOLLAR
-
271TP-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2890185-18009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2990201-18020-00 WASHER, PLATEWASHER, PLATE
