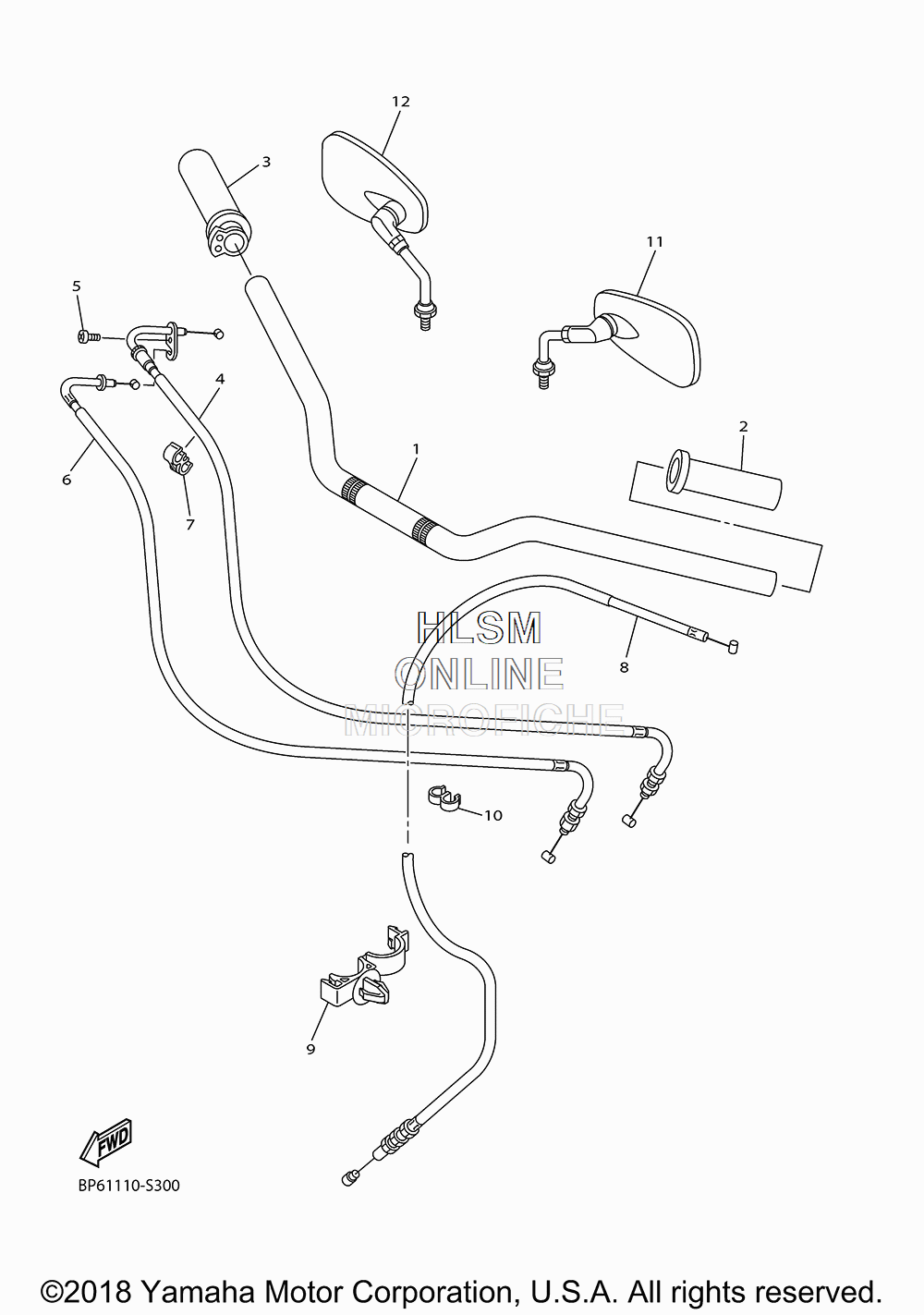

STEERING HANDLE & CABLE для Yamaha BOLT R-SPEC - 2019 года выпуска
-
№АртикулНазвание
-
11TP-26111-00-00 HANDLEBARHANDLEBAR
-
21TP-26241-00-00 GRIPGRIP
-
31TP-26240-00-00 GRIP ASSYGRIP ASSY
-
41TP-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
598507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
61TP-26312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
790464-06214-00 CLAMPCLAMP
-
81TP-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
990464-17003-00 CLAMPCLAMP
-
1090464-09M31-00 CLAMPCLAMP
-
112DX-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
122DX-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
