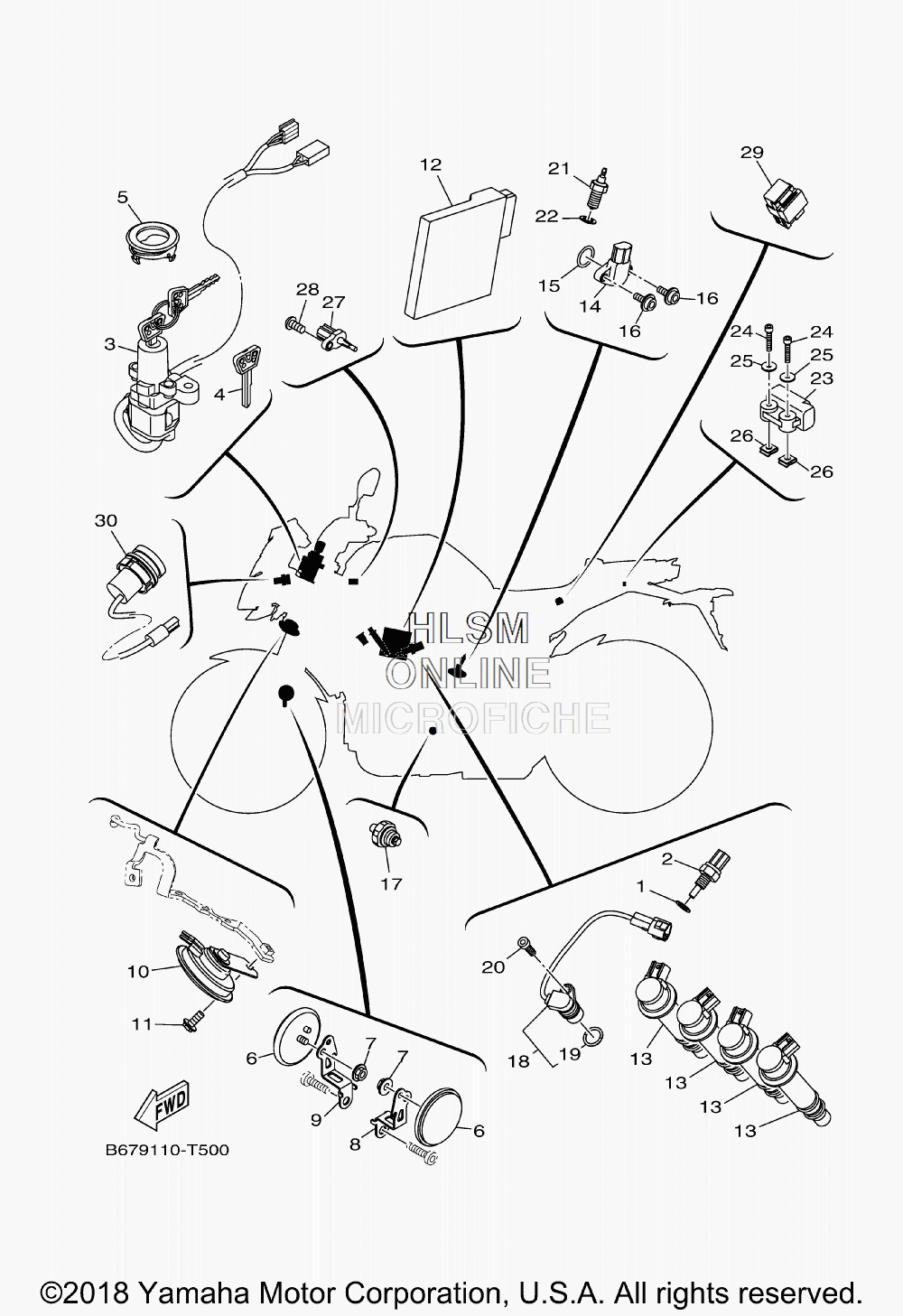

ELECTRICAL для Yamaha MT10 - 2019 года выпуска
-
№АртикулНазвание
-
190430-10004-00 GASKETGASKET
-
24P9-83591-00-00 THERMO UNITTHERMO UNIT
-
3B67-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
44BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
536P-82552-00-00 CAP, SWITCHCAP, SWITCH
-
64AG-85111-00-00 REFLECTOR, FRONT 1REFLECTOR, FRONT 1
-
795702-06500-00 NUT, FLANGENUT, FLANGE
-
82CR-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
92CR-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
10B67-83371-00-00 HORNHORN
-
1195812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
12B67-8591A-50-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
13B67-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
142CR-85899-10-00 SENSOR, GEAR POSITIONSENSOR, GEAR POSITION
-
1593210-17008-00 O-RINGO-RING
-
1690110-05067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
171WS-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
185VY-85896-01-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
194D9-81168-00-00 ...O-RING...O-RING
-
2090110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
213GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
2290430-10148-00 GASKETGASKET
-
235PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
2491312-04025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590201-04030-00 WASHER, PLATEWASHER, PLATE
-
2690183-04039-00 NUT, SPRINGNUT, SPRING
-
275YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2897702-50516-00 SCREW, TAPPINGSCREW, TAPPING
-
295DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
30B67-8254B-01-00 TERMINAL COMP.TERMINAL COMP.
