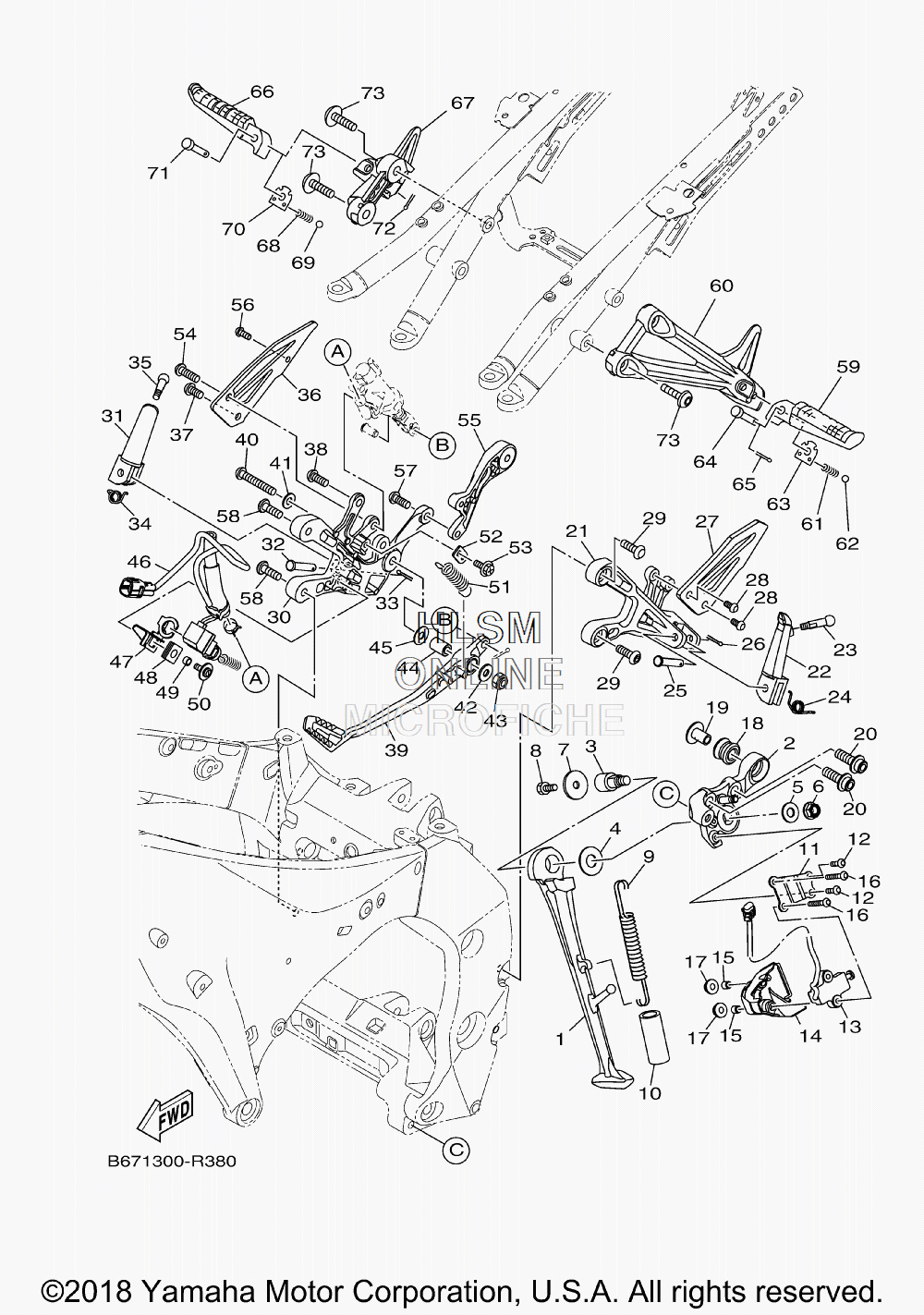

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha MT10 - 2019 года выпуска
-
№АртикулНазвание
-
1B67-27311-00-00 STAND, SIDESTAND, SIDE
-
2B67-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
32C0-27351-00-00 GUIDE, SIDE STANDGUIDE, SIDE STAND
-
490201-146F9-00 WASHER, PLATEWASHER, PLATE
-
590201-10035-00 WASHER, PLATEWASHER, PLATE
-
695602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
790201-08050-00 WASHER, PLATEWASHER, PLATE
-
890101-08662-00 BOLTBOLT
-
990506-20032-00 SPRING, TENSIONSPRING, TENSION
-
1090445-197J2-00 HOSE (L60)HOSE (L60)
-
1114B-27961-00-00 BRACKET, SENSOR 1BRACKET, SENSOR 1
-
1292012-05016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
132CR-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
142CR-27406-00-00 COVER ASSYCOVER ASSY
-
1590387-05025-00 COLLARCOLLAR
-
1692012-05030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1795602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
185VY-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
1990387-08021-00 COLLARCOLLAR
-
2090109-10002-00 BOLTBOLT
-
21B67-27442-00-00 BRACKET 2BRACKET 2
-
223XV-27451-02-00 FOOTRESTFOOTREST
-
2390109-08231-00 BOLTBOLT
-
2490508-18134-00 SPRING, TORSIONSPRING, TORSION
-
2591701-08040-00 PINPIN
-
2691402-25015-00 PIN, COTTERPIN, COTTER
-
27B67-27445-00-00 PLATE 1PLATE 1
-
2890111-06065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2990111-08085-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
30B67-27443-00-00 BRACKET 3BRACKET 3
-
313XV-27461-02-00 FOOTRESTFOOTREST
-
3291701-08040-00 PINPIN
-
3391402-25015-00 PIN, COTTERPIN, COTTER
-
3490508-18135-00 SPRING, TORSIONSPRING, TORSION
-
3590109-08231-00 BOLTBOLT
-
36B67-27446-00-00 PLATE 2PLATE 2
-
3792012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3892012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
39B67-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
4092012-08050-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4192902-08200-00 WASHERWASHER
-
4290201-08048-00 WASHER, PLATEWASHER, PLATE
-
4390185-08089-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4490387-08102-00 COLLARCOLLAR
-
4590201-08103-00 WASHER, PLATEWASHER, PLATE
-
46B67-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
47B67-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
4890480-12607-00 GROMMETGROMMET
-
4990387-06M16-00 COLLARCOLLAR
-
5090159-06150-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
5190506-23008-00 SPRING, TENSIONSPRING, TENSION
-
52B67-27432-00-00 BRACKET 1BRACKET 1
-
5395802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
5492012-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
55B67-21487-00-00 STAY, MUFFLER 3STAY, MUFFLER 3
-
5692012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5792012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5890111-08085-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
593VR-27431-02-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
601RC-2741L-01-00 BRACKET 4BRACKET 4
-
6190501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
6293501-04011-00 BALLBALL
-
635VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
6491702-08040-00 PIN, CLEVISPIN, CLEVIS
-
6591401-25015-00 PIN, COTTERPIN, COTTER
-
663VR-27441-02-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
67B67-2742L-00-00 BRACKET 5BRACKET 5
-
6890501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
6993501-04011-00 BALLBALL
-
705VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
7191702-08040-00 PIN, CLEVISPIN, CLEVIS
-
7291401-25015-00 PIN, COTTERPIN, COTTER
-
7390149-08230-00 SCREWSCREW
