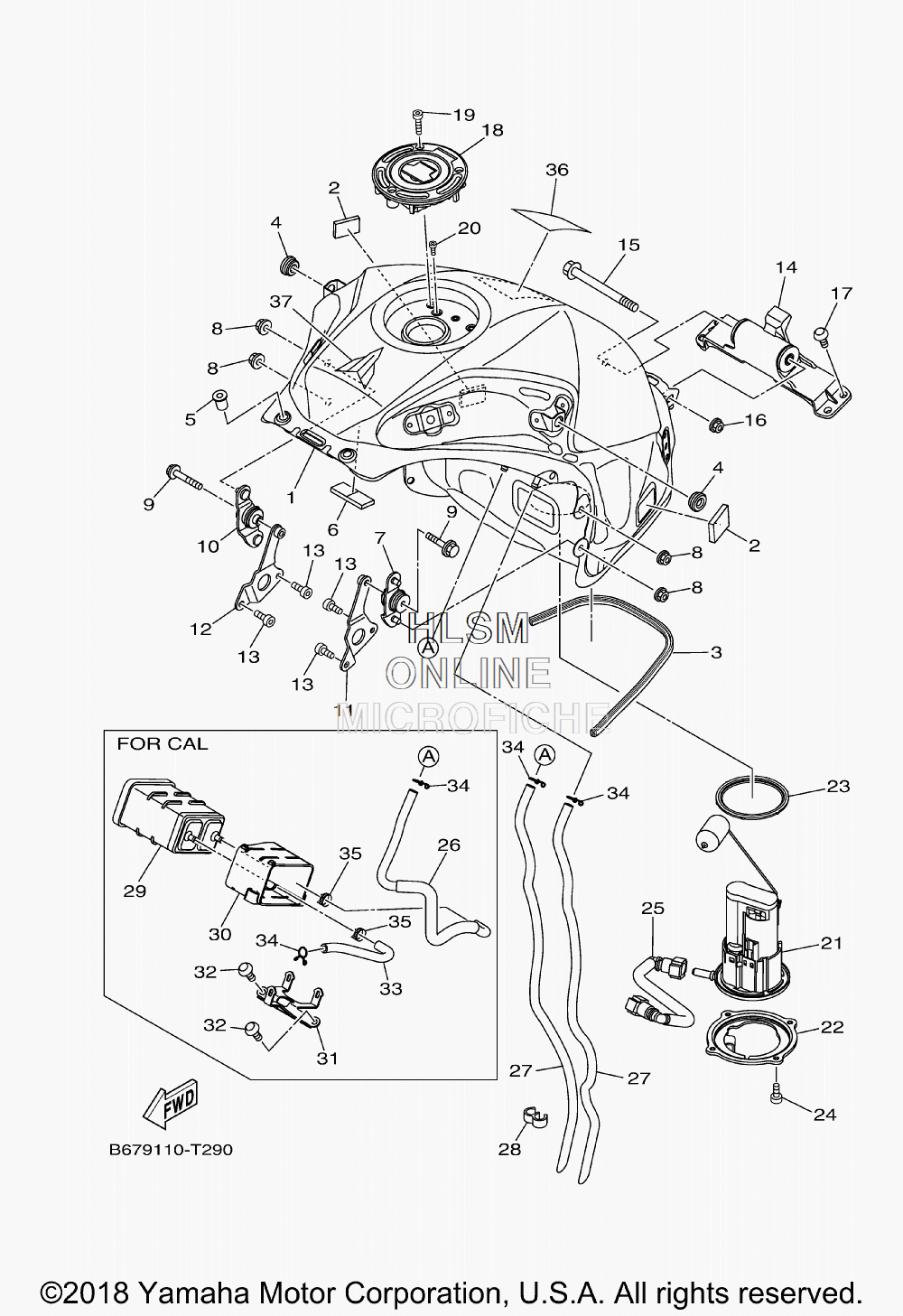

FUEL TANK для Yamaha MT10 - 2019 года выпуска

№

Артикул

Название
1

B67-24110-00-P0 FUEL TANK COMP. (MDNM6 - DARK GRAY)

FUEL TANK COMP. (MDNM6 - DARK GRAY)

83 780 ₽
1

B67-24110-00-P5 FUEL TANK COMP. (MLNM4 - LIGHT GRAY)

FUEL TANK COMP. (MLNM4 - LIGHT GRAY)

83 780 ₽
2

18A-21778-00-00 DAMPER, LOCATING 1

DAMPER, LOCATING 1

280 ₽
3

B67-24188-00-00 MOLD, FUEL TANK

MOLD, FUEL TANK

1 360 ₽
4

90480-13031-00 GROMMET

GROMMET

480 ₽
5

90179-05523-00 NUT

NUT

410 ₽
6

4X4-24181-00-00 DAMPER, LOCATING 1

DAMPER, LOCATING 1

310 ₽
7

B67-24104-00-00 TANK BRACKET ASSY

TANK BRACKET ASSY

2 510 ₽
8

95702-06500-00 NUT, FLANGE

NUT, FLANGE

400 ₽
9

95822-06035-00 BOLT, FLANGE

BOLT, FLANGE

160 ₽
10

B67-24105-00-00 TANK BRACKET ASSY 2

TANK BRACKET ASSY 2

2 360 ₽
11

B67-2412Y-00-00 BRACKET, TANK FITTING

BRACKET, TANK FITTING

1 030 ₽
12

B67-2412Y-10-00 BRACKET, TANK FITTING

BRACKET, TANK FITTING

1 030 ₽
13

91312-06016-00 BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD

220 ₽
14

B67-2412F-00-00 BRACKET, SEAT

BRACKET, SEAT

8 660 ₽
15

95812-06090-00 BOLT, FLANGE

BOLT, FLANGE

290 ₽
16

95702-06500-00 NUT, FLANGE

NUT, FLANGE

400 ₽
17

90111-06029-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON

340 ₽
18

2CR-24602-00-00 CAP ASSY

CAP ASSY

20 630 ₽
19

90110-05112-00 BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD

380 ₽
20

91312-05010-00 BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD

180 ₽
21

B67-13907-00-00 FUEL PUMP COMP.

FUEL PUMP COMP.

47 560 ₽
22

1WS-24491-00-00 BRACKET, FUEL PUMP

BRACKET, FUEL PUMP

1 380 ₽
23

1RC-24486-00-00 O-RING

O-RING

2 040 ₽
24

91312-05010-00 BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD

180 ₽
25

B67-13971-00-00 PIPE, FUEL 1

PIPE, FUEL 1

3 770 ₽
26

B67-24314-10-00 PIPE 4 (CALIF ONLY)

PIPE 4 (CALIF ONLY)

0 ₽
27

B67-24312-00-00 PIPE 2 (CALIF ONLY)

PIPE 2 (CALIF ONLY)

1 010 ₽
27

B67-24312-00-00 PIPE 2 (EXCEPT CALIF)

PIPE 2 (EXCEPT CALIF)

1 010 ₽
28

90464-09M31-00 CLAMP (EXCEPT CALIF)

CLAMP (EXCEPT CALIF)

310 ₽
29

2CR-24170-00-00 CANISTER ASSY (CALIF ONLY)

CANISTER ASSY (CALIF ONLY)

35 430 ₽
30

2CR-24182-00-00 DAMPER, LOCATING 2 (CALIF ONLY)

DAMPER, LOCATING 2 (CALIF ONLY)

3 300 ₽
31

2CR-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)

BRACKET, CANISTOR (CALIF ONLY)

3 300 ₽
32

90149-06084-00 SCREW (CALIF ONLY)

SCREW (CALIF ONLY)

160 ₽
33

2CR-24316-00-00 PIPE 6 (CALIF ONLY)

PIPE 6 (CALIF ONLY)

1 470 ₽
34

90467-090A2-00 CLIP (EXCEPT CALIF)

CLIP (EXCEPT CALIF)

180 ₽
34

90467-090A2-00 CLIP (CALIF ONLY)

CLIP (CALIF ONLY)

180 ₽
35

90467-09026-00 CLIP (CALIF ONLY)

CLIP (CALIF ONLY)

320 ₽
36

29P-2816R-00-00 LABEL, WARNING GENERAL INFO.

LABEL, WARNING GENERAL INFO.

0 ₽
37

B67-24161-10-00 EMBLEM 1 (MLNM4 - LIGHT GRAY)

EMBLEM 1 (MLNM4 - LIGHT GRAY)

1 200 ₽
37

B67-24161-00-00 EMBLEM 1 (MDNM6 - DARK GRAY)

EMBLEM 1 (MDNM6 - DARK GRAY)

1 420 ₽
