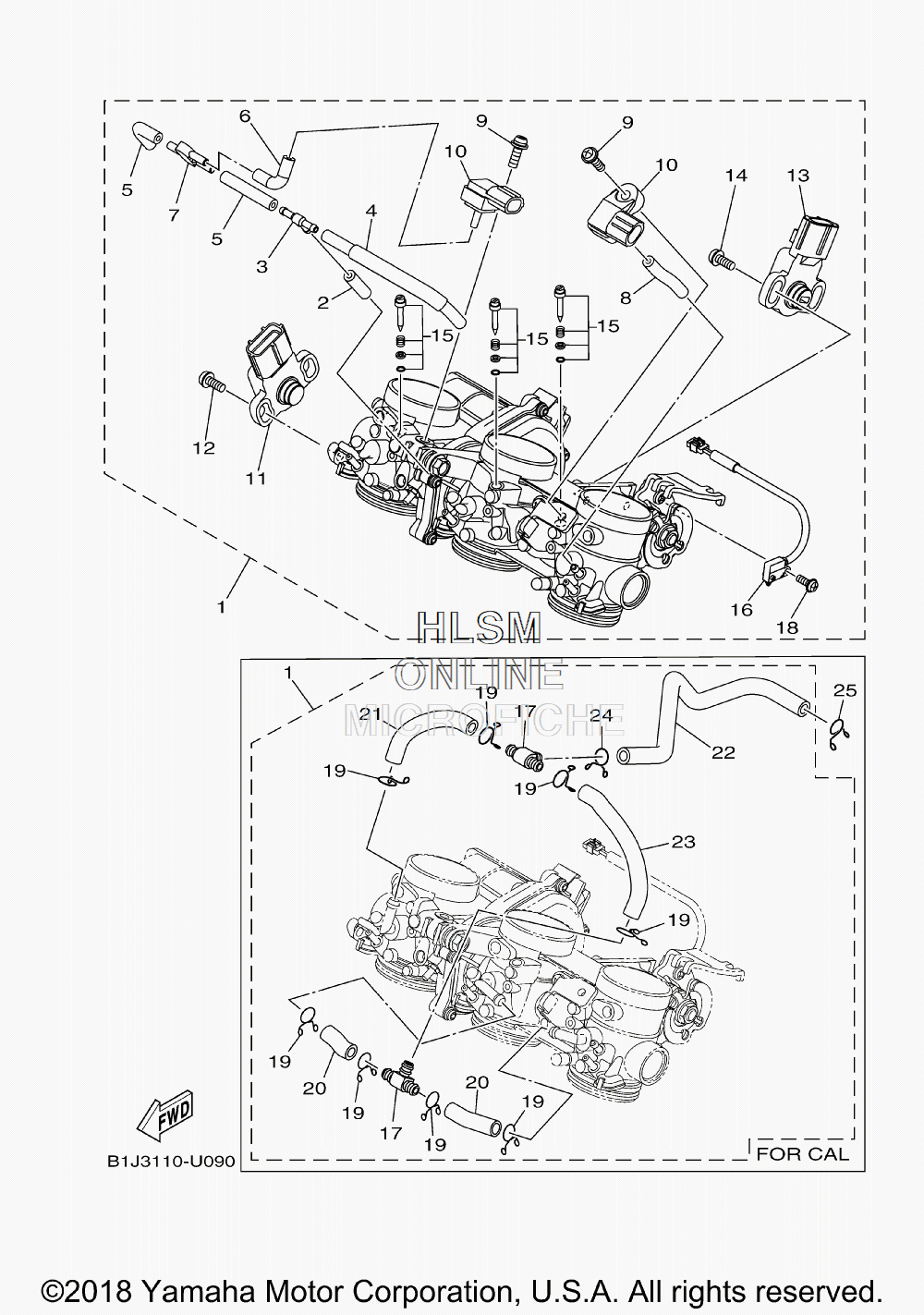

AIR CLEANER W/ INTAKE для Yamaha TRACER 900 CT - 2019 года выпуска
-
№АртикулНазвание
-
1BD5-13750-20-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
1B1J-13750-10-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
21RC-13544-00-00 ...HOSE, VACUUM SENSING 2...HOSE, VACUUM SENSING 2
-
368V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
41RC-13542-00-00 ...HOSE, VACUUM SENSING 1...HOSE, VACUUM SENSING 1
-
58FP-14349-20-00 ...PIPE...PIPE
-
68FP-14349-00-00 ...PIPE...PIPE
-
73XV-14251-00-00 ...NIPPLE...NIPPLE
-
88FP-14349-30-00 ...PIPE...PIPE
-
92C0-14216-00-00 ...SCREW...SCREW
-
101WS-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
1113S-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
128CC-14216-10-00 ...SCREW...SCREW
-
131MC-85884-00-00 ...ACCELERATOR SENSOR ASSY...ACCELERATOR SENSOR ASSY
-
145FL-14216-00-00 ...SCREW...SCREW
-
152C0-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
161MC-81860-00-00 ...SWITCH ASSY...SWITCH ASSY
-
1790413-06031-00 ...WAY 3 (CALIF ONLY)...WAY 3 (CALIF ONLY)
-
181MC-14216-00-00 ...SCREW...SCREW
-
1990467-100A1-00 ...CLIP (CALIF ONLY)...CLIP (CALIF ONLY)
-
2014B-14465-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
211RC-14466-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
22B90-1443J-10-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
231RC-1444J-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
2490467-09103-00 ...CLIP (CALIF ONLY)...CLIP (CALIF ONLY)
-
2590467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
