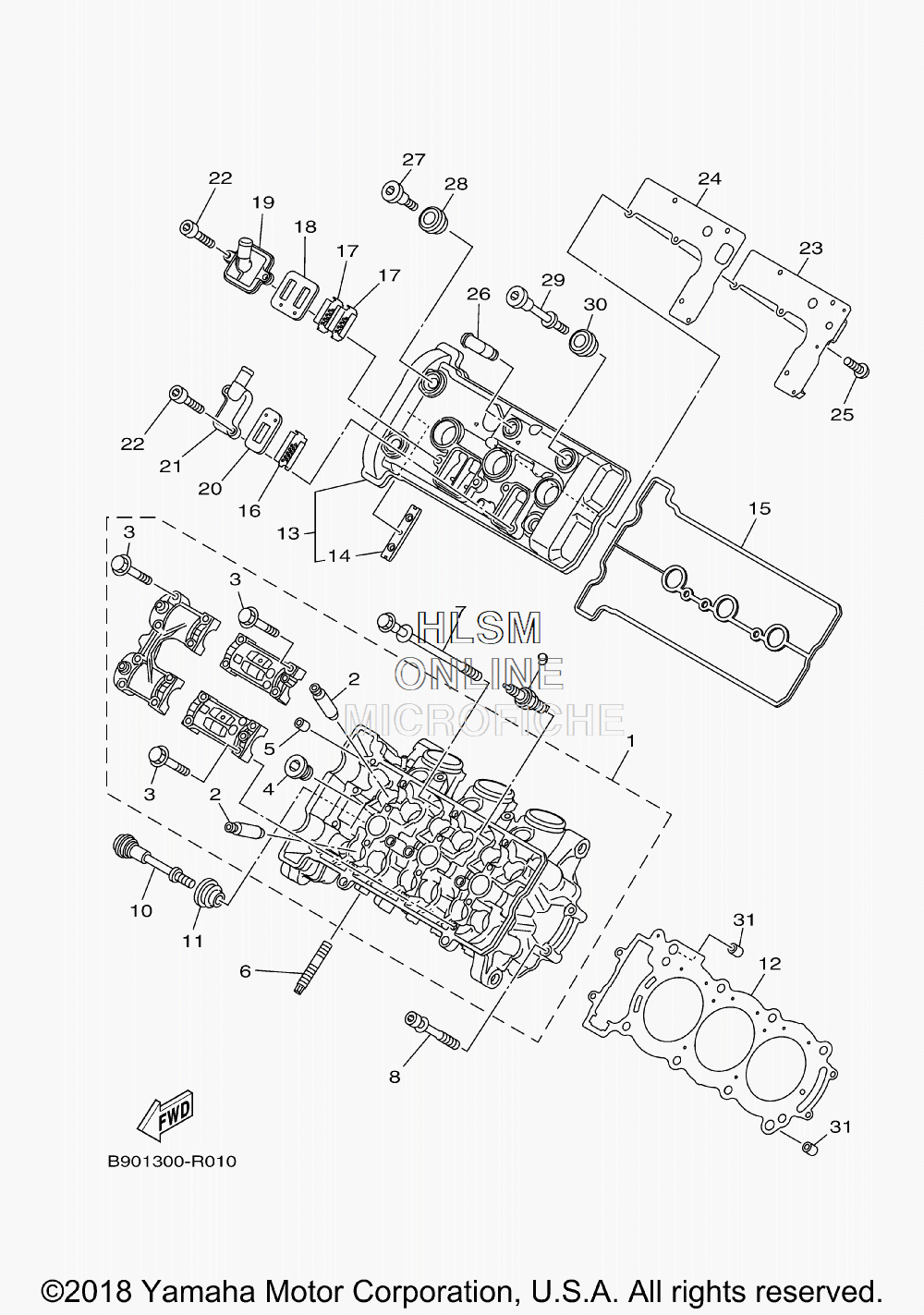

CYLINDER HEAD для Yamaha TRACER 900 CT - 2019 года выпуска
-
№АртикулНазвание
-
1B90-11101-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
22C0-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
390105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
490340-18002-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
591808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
690116-08087-00 BOLT, STUDBOLT, STUD
-
790119-09017-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890109-061F7-00 BOLTBOLT
-
994701-00431-00 PLUG, SPARK (NGK R CPR9EA-9)PLUG, SPARK (NGK R CPR9EA-9)
-
1090109-06293-00 BOLTBOLT
-
115VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
12BS2-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
131RC-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
145BE-12241-00-00 ...GUIDE, STOPPER 2...GUIDE, STOPPER 2
-
151RC-11193-01-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
165JW-1482K-01-00 PLATEPLATE
-
175VY-1482K-00-00 PLATEPLATE
-
185SL-14890-00-00 REED VALVE ASSYREED VALVE ASSY
-
195SL-14899-00-00 CAP, CASECAP, CASE
-
205PS-14890-00-00 REED VALVE ASSYREED VALVE ASSY
-
215JW-14889-00-00 CAP, CASECAP, CASE
-
2290110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
23B90-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
241RC-11169-00-00 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
2590149-05037-00 SCREWSCREW
-
264TR-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
2790109-066F0-00 BOLTBOLT
-
285VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
2990109-06271-00 BOLTBOLT
-
305VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
3199530-12016-00 PIN, DOWELPIN, DOWEL
