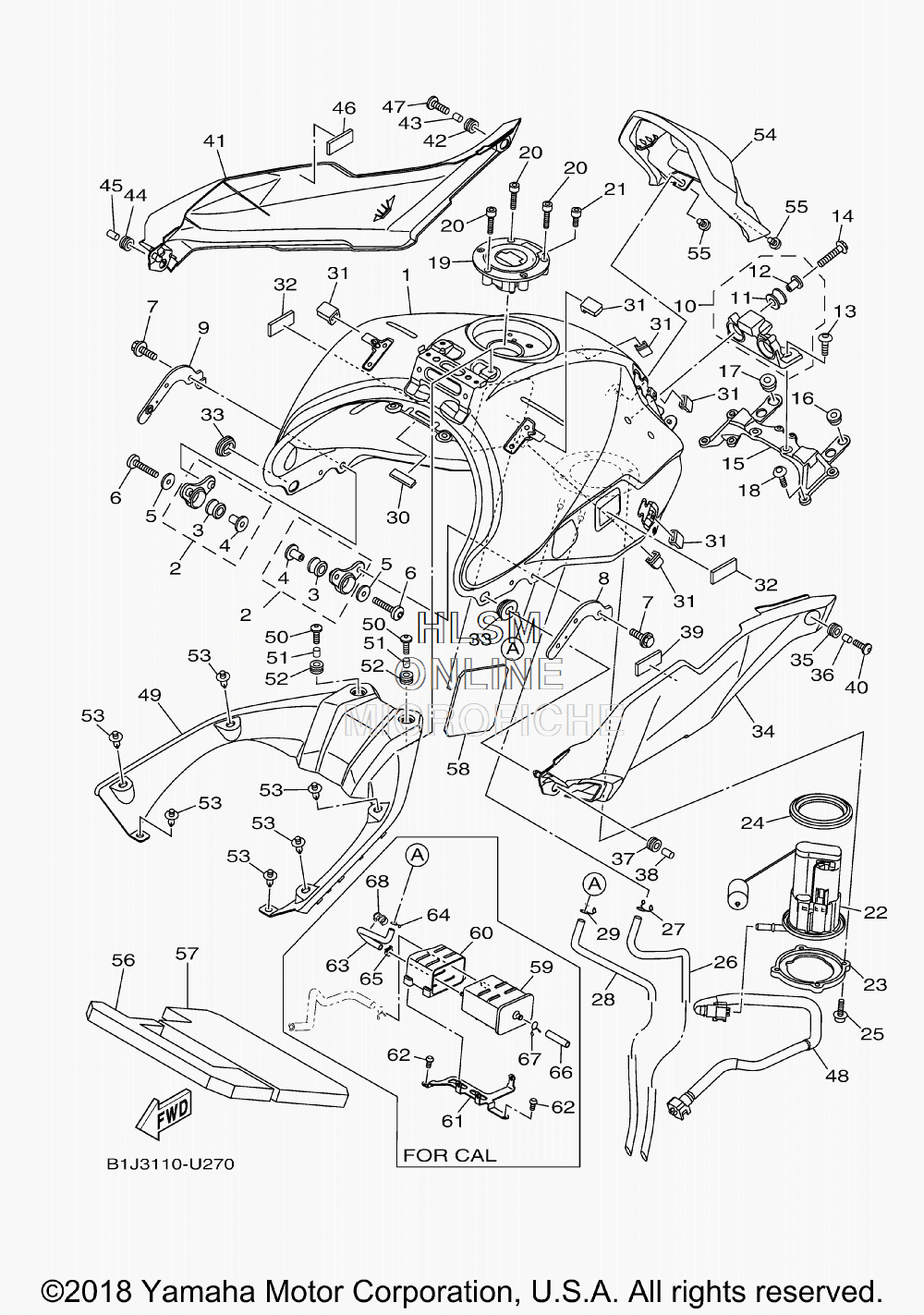

FUEL TANK для Yamaha TRACER 900 CT - 2019 года выпуска
-
№АртикулНазвание
-
12PP-YK241-00-P3 FUEL TANK COMP. (SMX - BLACK METALLIC X)FUEL TANK COMP. (SMX - BLACK METALLIC X)
-
223P-24104-01-00 TANK BRACKET ASSYTANK BRACKET ASSY
-
390480-18008-00 ...GROMMET...GROMMET
-
490387-06266-00 ...COLLAR...COLLAR
-
590201-06072-00 WASHER, PLATEWASHER, PLATE
-
692012-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
790119-06200-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
82PP-2411F-00-00 PLATE, FITTINGPLATE, FITTING
-
92PP-2411L-00-00 HOOK TANK FITTINGHOOK TANK FITTING
-
102PP-24105-00-00 TANK BRACKET ASSY 2TANK BRACKET ASSY 2
-
113D7-24339-00-00 ...GROMMET...GROMMET
-
1290387-06136-00 ...COLLAR...COLLAR
-
1390111-06136-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1495812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
152PP-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
1690480-13398-00 GROMMETGROMMET
-
1790480-01559-00 GROMMETGROMMET
-
1892017-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1939P-24602-10-00 CAP ASSYCAP ASSY
-
2090110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2191312-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
221RC-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
231RC-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
241RC-24486-00-00 O-RINGO-RING
-
2590110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
261RC-24315-00-00 PIPE 5PIPE 5
-
2790467-09006-00 CLIPCLIP
-
281RC-24316-00-00 PIPE 6 (EXCEPT CALIF)PIPE 6 (EXCEPT CALIF)
-
2990467-09006-00 CLIP (EXCEPT CALIF)CLIP (EXCEPT CALIF)
-
302S3-28347-00-00 MOLE 3MOLE 3
-
315PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
322PP-2411G-00-00 HOOK, SIDE COVER 1HOOK, SIDE COVER 1
-
3390480-01558-00 GROMMETGROMMET
-
34B5C-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
3590480-13018-00 GROMMETGROMMET
-
3690387-0611W-00 COLLARCOLLAR
-
3790480-13018-00 GROMMETGROMMET
-
3890387-06026-00 COLLARCOLLAR
-
392PP-2411G-00-00 HOOK, SIDE COVER 1HOOK, SIDE COVER 1
-
4090111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
41B5C-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
4290480-13018-00 GROMMETGROMMET
-
4390387-0611W-00 COLLARCOLLAR
-
4490480-13018-00 GROMMETGROMMET
-
4590387-06026-00 COLLARCOLLAR
-
462PP-2411G-00-00 HOOK, SIDE COVER 1HOOK, SIDE COVER 1
-
4790111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
481RC-13971-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
49B5C-241B1-00-00 COVER, TANKCOVER, TANK
-
5090111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5190387-0611W-00 COLLARCOLLAR
-
5290480-13018-00 GROMMETGROMMET
-
5390269-07007-00 RIVETRIVET
-
54B5C-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
5590111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
562PP-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
572PP-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
58BS2-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
592CR-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
60B90-24183-00-00 DAMPER, LOCATING 3 (CALIF ONLY)DAMPER, LOCATING 3 (CALIF ONLY)
-
61B1J-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
6292012-06012-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
-
63B90-24313-10-00 PIPE 3 (CALIF ONLY)PIPE 3 (CALIF ONLY)
-
6490467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
6590467-09026-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
66BS2-24321-00-00 PIPE 10 (CALIF ONLY)PIPE 10 (CALIF ONLY)
-
6790467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
6890464-09M31-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
