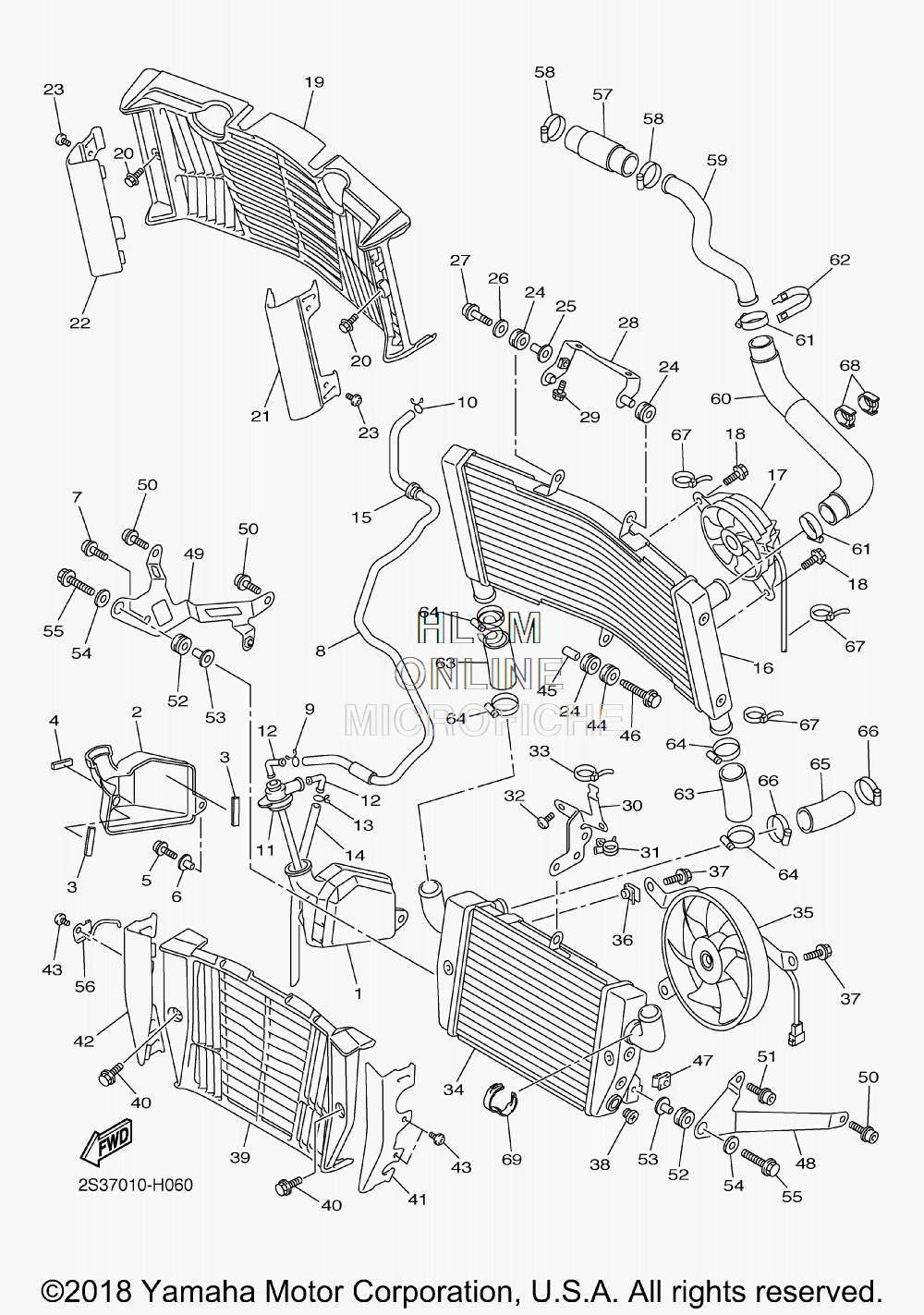

RADIATOR для Yamaha VMAX - 2019 года выпуска
-
№АртикулНазвание
-
12S3-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
22S3-2176E-00-00 PLATEPLATE
-
35SL-21746-00-00 DAMPERDAMPER
-
45DM-28371-00-00 DAMPERDAMPER
-
591314-06014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690387-06170-00 COLLARCOLLAR
-
790110-06302-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
82S3-21816-00-00 PIPE 1PIPE 1
-
990467-09006-00 CLIPCLIP
-
1090467-10008-00 CLIPCLIP
-
112C0-21875-00-00 CAPCAP
-
1226H-21828-00-00 ELBOWELBOW
-
1390467-08075-00 CLIPCLIP
-
1490445-08035-00 HOSEHOSE
-
1590480-22263-00 GROMMETGROMMET
-
162S3-12461-09-00 RADIATOR COMPRADIATOR COMP
-
172S3-12405-10-00 BLOWER ASSYBLOWER ASSY
-
182S3-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
192S3-1246H-00-00 COVER 5COVER 5
-
2090119-06109-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
212S3-1246A-10-00 COVER 1COVER 1
-
222S3-1246E-10-00 COVER 2COVER 2
-
2390149-06298-00 SCREWSCREW
-
2490480-15363-00 GROMMETGROMMET
-
2590387-06039-00 COLLARCOLLAR
-
2690201-06071-00 WASHER, PLATEWASHER, PLATE
-
2790109-06031-00 BOLTBOLT
-
282S3-2116A-00-00 STAY 1STAY 1
-
2990110-06302-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
302S3-12464-00-00 STAY, RADIATORSTAY, RADIATOR
-
3190464-18246-00 CLAMPCLAMP
-
3290111-06003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3390464-16061-00 CLAMPCLAMP
-
342S3-12461-19-00 RADIATOR COMPRADIATOR COMP
-
352S3-12405-00-00 BLOWER ASSYBLOWER ASSY
-
365SL-12671-00-00 NUT 1NUT 1
-
375GJ-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
385VU-12478-00-00 COCK, DRAINCOCK, DRAIN
-
392S3-1246J-00-00 COVER 6COVER 6
-
4090119-06109-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
412S3-1246F-10-00 COVER 3COVER 3
-
422S3-1246G-10-00 COVER 4COVER 4
-
4390149-06298-00 SCREWSCREW
-
4490480-15363-00 GROMMETGROMMET
-
4590387-06086-00 COLLARCOLLAR
-
4690119-06247-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
475SL-12671-00-00 NUT 1NUT 1
-
482S3-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
492S3-2174E-00-00 STAY, SIDE COVER 2STAY, SIDE COVER 2
-
5090110-06245-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5190110-06396-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5290480-15363-00 GROMMETGROMMET
-
5390387-06039-00 COLLARCOLLAR
-
5490201-06071-00 WASHER, PLATEWASHER, PLATE
-
5590109-06031-00 BOLTBOLT
-
562S3-2171H-00-00 GUIDEGUIDE
-
572S3-12552-00-00 HOSE 8HOSE 8
-
5890450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
592S3-12476-00-00 PIPE 6PIPE 6
-
602S3-12576-00-00 HOSE 1HOSE 1
-
6190450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
625GV-1246E-00-00 COVER 2COVER 2
-
632S3-12577-00-00 HOSE 2HOSE 2
-
6490450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
652S3-12578-00-00 HOSE 3HOSE 3
-
6690450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
6790464-16061-00 CLAMPCLAMP
-
6890464-12013-00 CLAMPCLAMP
-
6990464-28003-00 CLAMPCLAMP
