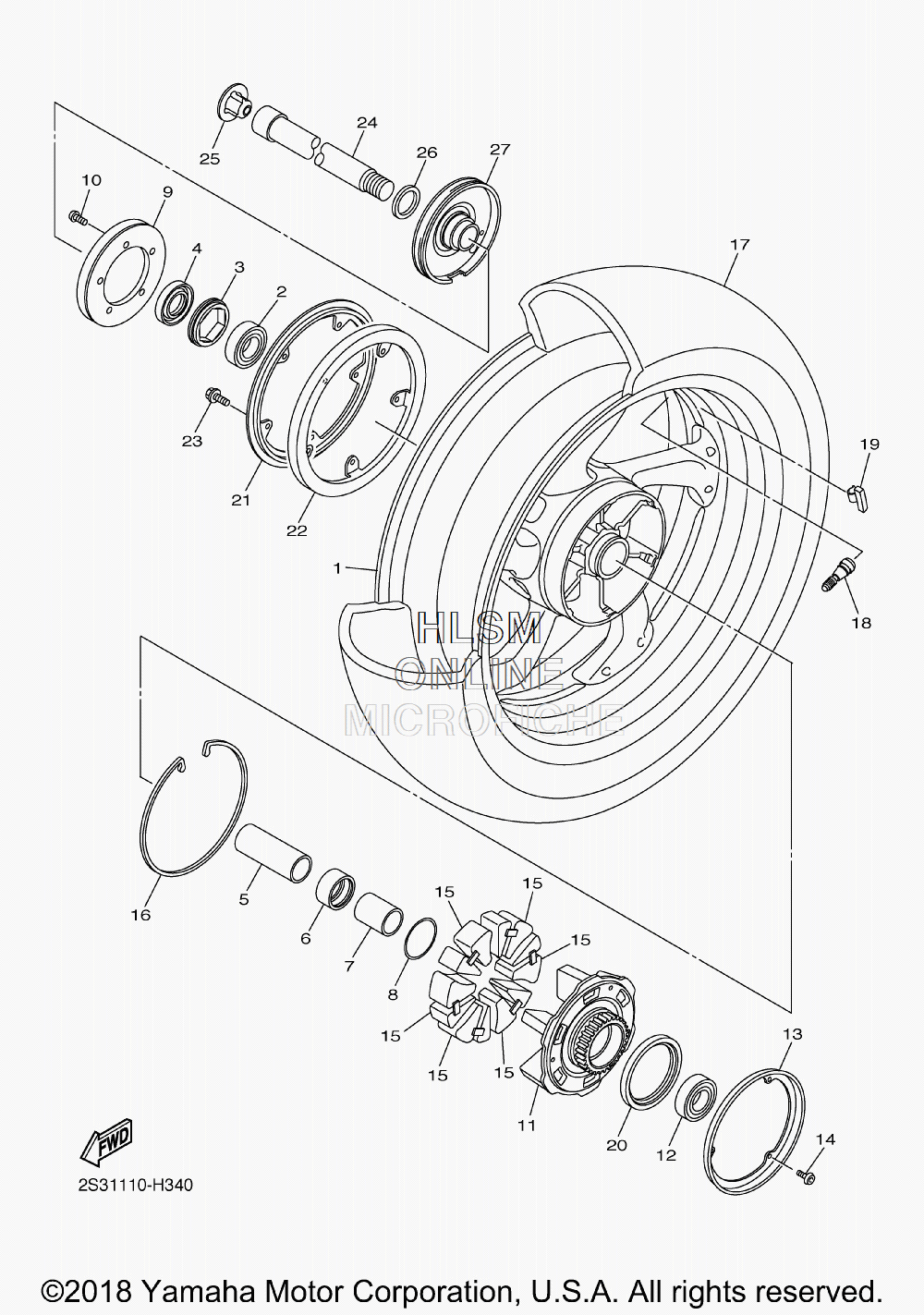

WHEEL - REAR для Yamaha VMAX - 2019 года выпуска
-
№АртикулНазвание
-
12S3-25338-00-98 CAST WHEEL, REAR (LGB - GLOSS BLACK)CAST WHEEL, REAR (LGB - GLOSS BLACK)
-
293306-07809-00 BEARINGBEARING
-
33P6-2538E-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
493106-40013-00 OIL SEALOIL SEAL
-
52S3-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
693317-43580-00 BEARINGBEARING
-
72S3-25377-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
893210-47675-00 O-RINGO-RING
-
92S3-2517G-00-00 ROTOR, SENSORROTOR, SENSOR
-
1090149-05009-00 SCREWSCREW
-
112S3-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1293306-07808-00 BEARINGBEARING
-
132S3-25327-00-00 COVER, PLATECOVER, PLATE
-
1490111-05032-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
152S3-25364-00-00 DAMPERDAMPER
-
162S3-25318-00-00 STOPPER, HUBSTOPPER, HUB
-
1794120-18008-00 TIRE (200/50 R18 M/C 76V) (BRIDGESTONE)TIRE (200/50 R18 M/C 76V) (BRIDGESTONE)
-
1893900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
195MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
195MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
195MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
202S3-25319-00-00 SEAL, HUB DUSTSEAL, HUB DUST
-
212S3-2515A-00-00 RING, WHEEL 2RING, WHEEL 2
-
222S3-2514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
2390105-06174-00 BOLT, FLANGEBOLT, FLANGE
-
242S3-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
252S3-25335-00-00 CAPCAP
-
2690201-28016-00 WASHER, PLATEWASHER, PLATE
-
272S3-2537A-00-00 HOUSING, SENSOR REARHOUSING, SENSOR REAR
