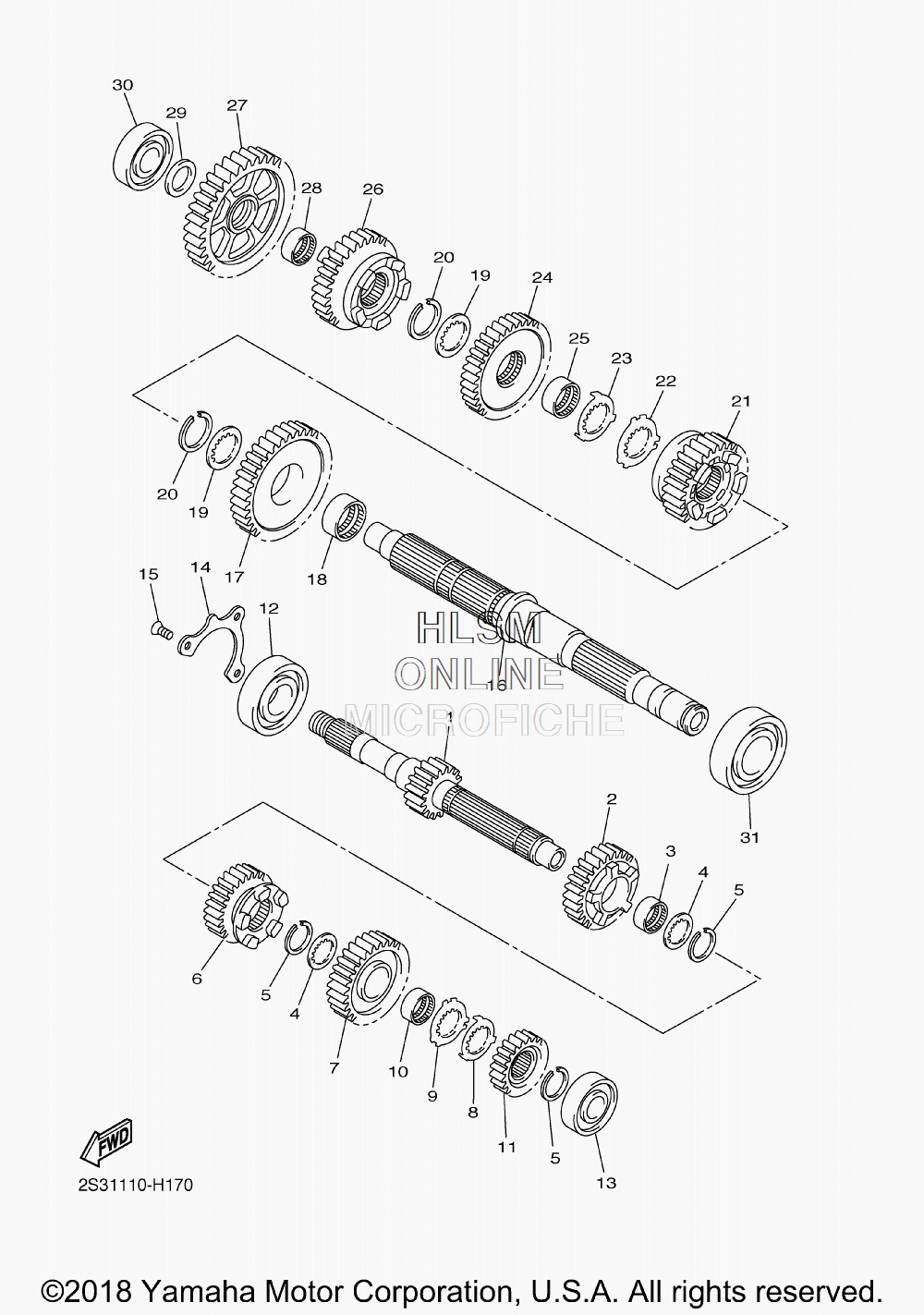

TRANSMISSION для Yamaha VMAX - 2019 года выпуска
-
№АртикулНазвание
-
12S3-17411-00-00 AXLE, MAIN (16T)AXLE, MAIN (16T)
-
22S3-17141-00-00 GEAR, 4TH PINION (26T)GEAR, 4TH PINION (26T)
-
390387-28003-00 COLLARCOLLAR
-
490209-25011-00 WASHERWASHER
-
593440-28184-00 CIRCLIPCIRCLIP
-
62S3-17131-01-00 GEAR, 3RD PINION (25T)GEAR, 3RD PINION (25T)
-
72S3-17151-01-00 GEAR, 5TH PINION (31T)GEAR, 5TH PINION (31T)
-
890214-25003-00 WASHER, CLAWWASHER, CLAW
-
990214-25004-00 WASHER, CLAWWASHER, CLAW
-
1090387-25025-00 COLLARCOLLAR
-
112S3-17121-00-00 GEAR, 2ND PINION (21T)GEAR, 2ND PINION (21T)
-
1293306-30610-00 BEARINGBEARING
-
1393306-37214-00 BEARINGBEARING
-
142S3-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1590151-06024-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
162S3-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
172S3-17221-00-00 GEAR, 2ND WHEEL (38T)GEAR, 2ND WHEEL (38T)
-
1890387-3311C-00 COLLARCOLLAR
-
1990209-30344-00 WASHERWASHER
-
2093440-32063-00 CIRCLIPCIRCLIP
-
212S3-17251-01-00 GEAR, 5TH WHEEL (29T)GEAR, 5TH WHEEL (29T)
-
2290209-30345-00 WASHERWASHER
-
2390209-30343-00 WASHERWASHER
-
242S3-17231-00-00 GEAR, 3RD WHEEL (35T)GEAR, 3RD WHEEL (35T)
-
2590387-3310V-00 COLLARCOLLAR
-
262S3-17241-00-00 GEAR, 4TH WHEEL (29T)GEAR, 4TH WHEEL (29T)
-
272S3-17211-00-00 GEAR, 1ST WHEEL (38T)GEAR, 1ST WHEEL (38T)
-
2890387-25008-00 COLLARCOLLAR
-
2990201-224L4-00 WASHER, PLATEWASHER, PLATE
-
3093306-37214-00 BEARINGBEARING
-
3193306-20714-00 BEARINGBEARING
