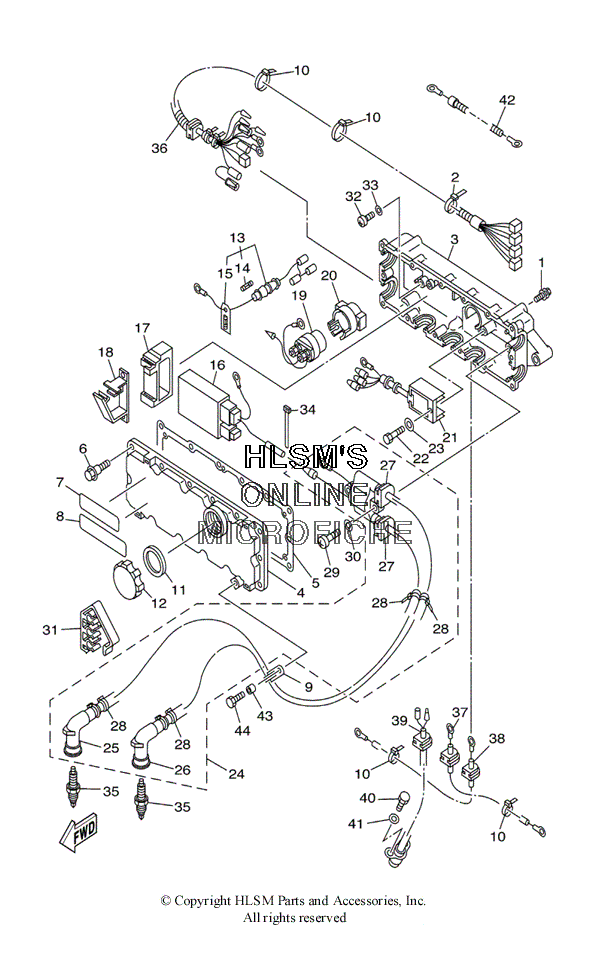

ELECTRICAL 1 для Yamaha XL 800 - 2000 года выпуска
-
№АртикулНазвание
-
190119-089UR-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
290465-12M56-00 CLAMPCLAMP
-
366E-8552A-00-94 HOUSINGHOUSING
-
466E-8552E-00-00 COVER, CASECOVER, CASE
-
566E-81921-00-00 GASKET, TERMINALGASKET, TERMINAL
-
690109-05MA0-00 BOLTBOLT
-
76R7-83623-40-00 MARKMARK
-
866E-2179X-01-00 PLATE, EPAPLATE, EPA
-
990465-12M53-00 CLAMPCLAMP
-
1090465-13M36-00 CLAMPCLAMP
-
116M6-81844-00-00 GASKETGASKET
-
126M6-8132W-00-00 CAPCAP
-
1366E-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
146G1-82151-00-00 ...FUSE...FUSE
-
156K8-82159-00-00 ...FUSE SPEAR...FUSE SPEAR
-
1666E-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
1764X-85546-00-00 BANDBAND
-
1890464-06M29-00 CLAMPCLAMP
-
196G1-81941-10-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
206M6-81952-01-00 HOLDER, RELAYHOLDER, RELAY
-
2163M-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2297095-06012-00 BOLTBOLT
-
2392995-06600-00 WASHERWASHER
-
2464X-85570-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
2562E-82371-11-00 ...CAP, PLUG...CAP, PLUG
-
2662E-82371-11-00 ...CAP, PLUG...CAP, PLUG
-
2790480-06M43-00 ...GROMMET...GROMMET
-
2890465-11M10-00 ...CLAMP...CLAMP
-
2997880-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3092990-06600-00 WASHER, PLATEWASHER, PLATE
-
3165U-81317-10-00 CLAMP, CORDCLAMP, CORD
-
3297880-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3392990-06600-00 WASHER, PLATEWASHER, PLATE
-
3490465-11M10-00 CLAMPCLAMP
-
35NGK-BR8ES-00-00 PLUG, SPARK (NGK BR8ES)PLUG, SPARK (NGK BR8ES)
-
3667A-82553-00-00 EXTENSION, WIRE LEADEXTENSION, WIRE LEAD
-
376M6-82117-21-00 WIRE, LEADWIRE, LEAD
-
3866E-82117-10-00 WIRE, LEADWIRE, LEAD
-
3967U-82560-00-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
4097095-06016-00 BOLTBOLT
-
4192995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4261L-82117-00-00 WIRE, LEADWIRE, LEAD
-
4390387-06M05-00 COLLARCOLLAR
-
4497780-60425-00 SCREW, TAPPINGSCREW, TAPPING
