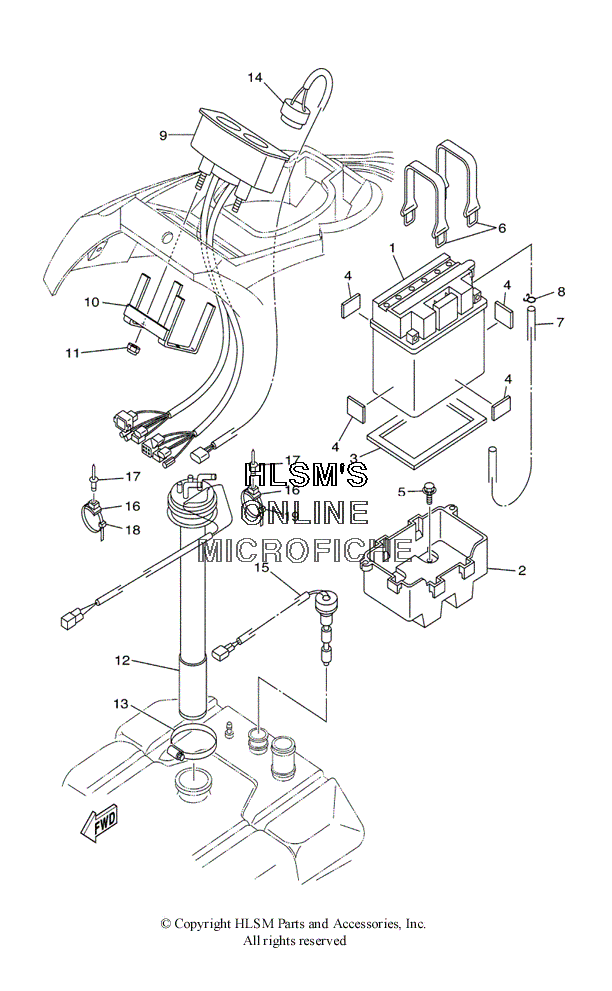

ELECTRICAL 2 для Yamaha XL 800 - 2000 года выпуска
-
№АртикулНазвание
-
1BTY-YB16C-LB-00 BATTERY ASSYBATTERY ASSY
-
2GP7-U8211-00-00 CASE, BATTERY (YMUS)CASE, BATTERY (YMUS)
-
3EU0-U8221-00-00 PAD, BATTERY 1 (YMUS)PAD, BATTERY 1 (YMUS)
-
4EU0-U8221-30-00 PAD, BATTERY 2 (YMUS)PAD, BATTERY 2 (YMUS)
-
590119-069US-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
6EU0-U821D-00-00 BAND, BATTERY 1 (YMUS)BAND, BATTERY 1 (YMUS)
-
7F0D-U785G-00-00 HOSE, AIR VENT (YMUS)HOSE, AIR VENT (YMUS)
-
890467-089U1-00 CLIP (YMUS)CLIP (YMUS)
-
9F0P-6820A-01-00 METER ASSYMETER ASSY
-
10F0D-68238-10-00 BRACKET, METERBRACKET, METER
-
119572R-05300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
12F0D-U824B-01-00 SENDER, FUELSENDER, FUEL
-
1390601-162U5-00 BAND, HOSE 62 (YMUS)BAND, HOSE 62 (YMUS)
-
14F0D-U8341-00-00 BUZZER (YMUS)BUZZER (YMUS)
-
15F0D-U824C-00-00 SENDER, OIL (YMUS)SENDER, OIL (YMUS)
-
1690600-917U4-00 CLAMP COMP. (YMUS)CLAMP COMP. (YMUS)
-
1790267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
1890464-32801-00 CLAMP (YMUS)CLAMP (YMUS)
-
1990601-20009-00 BANDBAND
Все узлы модели:
- AIR SILENCER W/ INTAKE
- CARBURETOR
- CARBURETOR REPAIR KIT
- CONTROL CABLES
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CRANKCASE 1
- CYLINDER W/ CRANKCASE 2
- ELECTRICAL 1
- • ELECTRICAL 2
- EXHAUST - HOSES
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL LINES
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHIC-TOOL
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL-DECK 1
- OIL PUMP
- OIL TANK
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT
- SIDE COVERS
- STARTING MOTOR
- VENTILATION
