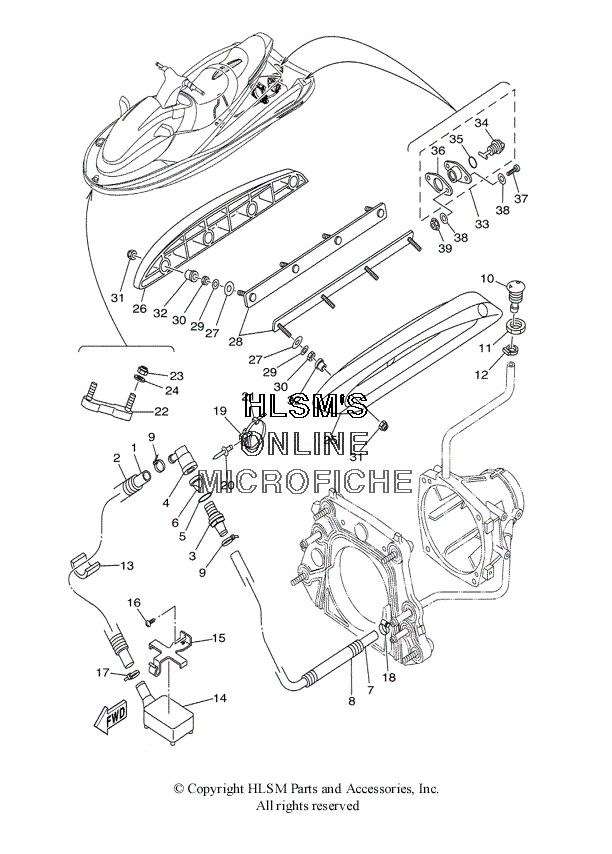

HULL-DECK 1 для Yamaha XL 800 - 2000 года выпуска
-
№АртикулНазвание
-
190445-198C0-00 HOSE (L1000) (YMUS)HOSE (L1000) (YMUS)
-
290446-27M73-00 HOSEHOSE
-
363M-51162-00-00 JOINT, HOSEJOINT, HOSE
-
463M-51165-00-00 J0INT HOSE 2J0INT HOSE 2
-
593210-22ME5-00 O-RINGO-RING
-
663M-5316M-00-00 VALVE 1VALVE 1
-
790445-198B9-00 HOSE (L650) (YMUS)HOSE (L650) (YMUS)
-
890446-27M55-00 HOSEHOSE
-
990601-200U1-00 CLAMP, CABLE (TIEWRAP 6") (YMUS)CLAMP, CABLE (TIEWRAP 6") (YMUS)
-
10FN8-6269B-00-00 SPOUTSPOUT
-
11EU0-61652-00-00 NUTNUT
-
1290601-118UF-00 BAND, HOSE 18 (YMUS)BAND, HOSE 18 (YMUS)
-
13GJ1-U7578-21-00 PACKING, HOSE 2 (YMUS)PACKING, HOSE 2 (YMUS)
-
14GD0-U761D-00-00 STRAINER, BILGE (YMUS)STRAINER, BILGE (YMUS)
-
15EW2-67618-00-00 BASE, STRAINER BLIGEBASE, STRAINER BLIGE
-
169778R-50112-00 SCREW, TAPPING (YMUS)SCREW, TAPPING (YMUS)
-
1790465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
1890601-118UF-00 BAND, HOSE 18 (YMUS)BAND, HOSE 18 (YMUS)
-
1990600-917U4-00 CLAMP COMP. (YMUS)CLAMP COMP. (YMUS)
-
2090267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
2190464-32801-00 CLAMP (YMUS)CLAMP (YMUS)
-
22F0D-61624-01-00 BOWEYE 1 (S)BOWEYE 1 (S)
-
239572R-08300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
249299R-08200-00 WASHER, M8 FLAT (YMUS)WASHER, M8 FLAT (YMUS)
-
25F0D-U883N-01-00 STABILIZER LH (YMUS)STABILIZER LH (YMUS)
-
26F0D-U883P-01-00 STABILIZER RH (YMUS)STABILIZER RH (YMUS)
-
27F0D-U883U-00-00 PACKING,STABILIZER (YMUS)PACKING,STABILIZER (YMUS)
-
28F0D-6883T-01-00 BRACKET,STABILIZERBRACKET,STABILIZER
-
299299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
309538R-06600-00 NUT (YMUS)NUT (YMUS)
-
319572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
3290387-08802-00 COLLAR (YMUS)COLLAR (YMUS)
-
33EU0-62280-00-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
34EU0-62282-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
35EU0-62283-00-00 ...O-RING...O-RING
-
36EU0-62285-01-00 ...PACKING DRAIN (EU0)...PACKING DRAIN (EU0)
-
379788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
389299R-05200-00 WASHER (YMUS)WASHER (YMUS)
-
399572R-05300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
