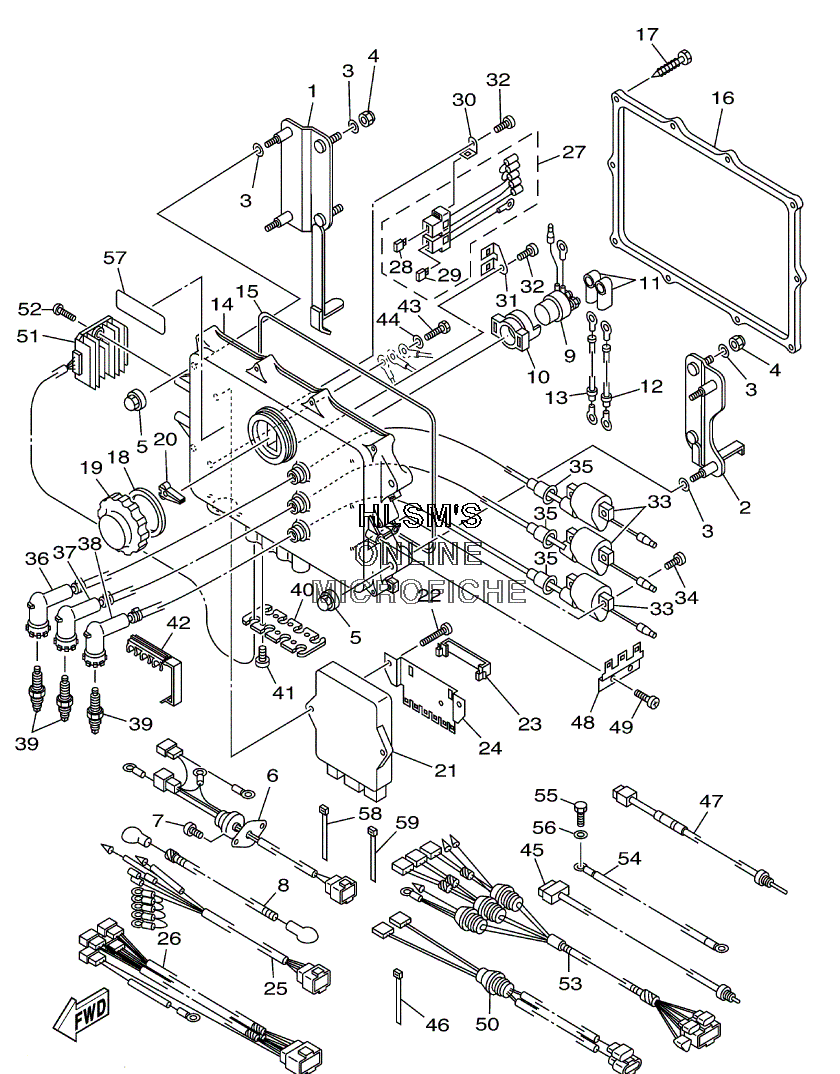

ELECTRICAL 1 для Yamaha GP 1200 RZ - 2001 года выпуска
-
№АртикулНазвание
-
1F0X-6815D-00-00 BRACKET, ELECTRIC BOX (USA)BRACKET, ELECTRIC BOX (USA)
-
2F0X-6815E-00-00 BRACKET, ELECTRIC BOX 2 (USA)BRACKET, ELECTRIC BOX 2 (USA)
-
39299R-08200-00 WASHER (USA) (YMUS)WASHER (USA) (YMUS)
-
49572R-08300-00 NUT, FLANGE (USA) (YMUS)NUT, FLANGE (USA) (YMUS)
-
590179-08978-00 NUT (USA)NUT (USA)
-
666V-81315-00-00 LEAD WIRE ASSY (USA)LEAD WIRE ASSY (USA)
-
797780-60425-00 SCREW, TAPPING (USA)SCREW, TAPPING (USA)
-
867X-82117-00-00 WIRE, LEAD (USA)WIRE, LEAD (USA)
-
96G1-81941-10-00 STARTER RELAY ASSY (USA)STARTER RELAY ASSY (USA)
-
106M6-81952-01-00 HOLDER, RELAY (USA)HOLDER, RELAY (USA)
-
1166V-82119-00-00 COVER, LEAD WIRE (USA)COVER, LEAD WIRE (USA)
-
1267X-82117-10-00 WIRE, LEAD (USA)WIRE, LEAD (USA)
-
1367X-82117-20-00 WIRE, LEAD (USA)WIRE, LEAD (USA)
-
1466V-8552A-00-00 HOUSING (USA)HOUSING (USA)
-
1566V-81921-00-00 GASKET, TERMINAL (USA)GASKET, TERMINAL (USA)
-
1666V-8552E-00-00 COVER, CASE (USA)COVER, CASE (USA)
-
1797780-60430-00 SCREW, TAPPING (USA)SCREW, TAPPING (USA)
-
1866V-81844-00-00 GASKET (USA)GASKET (USA)
-
1966V-8132W-00-00 CAP (USA)CAP (USA)
-
2067F-2812A-00-00 PULLER, FUSE (USA)PULLER, FUSE (USA)
-
2166V-85540-00-00 C.D.I. UNIT ASSY (USA)C.D.I. UNIT ASSY (USA)
-
2297780-60530-00 SCREW, TAPPING (USA)SCREW, TAPPING (USA)
-
2366V-83919-00-00 CLAMP, HARNESS (USA)CLAMP, HARNESS (USA)
-
2466V-83955-00-00 BRACKET 1 (USA)BRACKET 1 (USA)
-
2566V-85515-00-00 LEAD WIRE ASSY (USA)LEAD WIRE ASSY (USA)
-
2666V-83553-00-00 WIRE, LEAD (USA)WIRE, LEAD (USA)
-
2766V-82150-00-00 FUSE HOLDER ASSY (USA)FUSE HOLDER ASSY (USA)
-
2867F-82151-00-00 ...FUSE (20A) (USA)...FUSE (20A) (USA)
-
2966V-82151-00-00 ...FUSE (10A-BL) (USA)...FUSE (10A-BL) (USA)
-
3066V-82171-00-00 STAY, FUSE BOX (USA)STAY, FUSE BOX (USA)
-
3166V-82153-00-00 STAY, FUSE HOLDER (USA)STAY, FUSE HOLDER (USA)
-
3297780-60516-00 SCREW, TAPPING (USA)SCREW, TAPPING (USA)
-
3366V-85570-00-00 IGNITION COIL ASSY (USA)IGNITION COIL ASSY (USA)
-
3497780-60525-00 SCREW, TAPPING (USA)SCREW, TAPPING (USA)
-
3566V-82355-00-00 GROMMET (USA)GROMMET (USA)
-
3666V-82340-01-00 HIGH TENSION CORD ASSY 1 (USA)HIGH TENSION CORD ASSY 1 (USA)
-
3766V-82340-11-00 HIGH TENSION CORD ASSY 1 (USA)HIGH TENSION CORD ASSY 1 (USA)
-
3867X-82340-21-00 HIGH TENSION CORD ASSY 1 (USA)HIGH TENSION CORD ASSY 1 (USA)
-
39NGK-BR8ES-11-00 PLUG, SPARK (NGK BR8ES-11) (USA)PLUG, SPARK (NGK BR8ES-11) (USA)
-
4066V-85525-00-00 COVER (USA)COVER (USA)
-
4197780-60425-00 SCREW, TAPPING (USA)SCREW, TAPPING (USA)
-
4265U-81317-10-00 CLAMP, CORD (USA)CLAMP, CORD (USA)
-
4397095-06012-00 BOLT (USA)BOLT (USA)
-
4492995-06600-00 WASHER (USA)WASHER (USA)
-
4566V-85790-10-00 THERMOSENSOR ASSY (USA)THERMOSENSOR ASSY (USA)
-
4690465-11M10-00 CLAMP (USA)CLAMP (USA)
-
4766V-85881-00-00 SENSOR, EXT, TEMP. (USA)SENSOR, EXT, TEMP. (USA)
-
4866V-85542-00-00 BRACKET (USA)BRACKET (USA)
-
4997780-60516-00 SCREW, TAPPING (USA)SCREW, TAPPING (USA)
-
5066V-82509-00-00 WIRE, SUB LEAD (USA)WIRE, SUB LEAD (USA)
-
5166V-81960-00-00 RECTIFIER & REGULATOR ASSY (USA)RECTIFIER & REGULATOR ASSY (USA)
-
5297780-60425-00 SCREW, TAPPING (USA)SCREW, TAPPING (USA)
-
5367X-82553-00-00 EXTENSION, WIRE LEAD (USA)EXTENSION, WIRE LEAD (USA)
-
5466V-82127-00-00 WIRE, LEAD 2 (USA)WIRE, LEAD 2 (USA)
-
5597013-06016-00 BOLT (USA)BOLT (USA)
-
5692903-06600-00 WASHER, PLATE (USA)WASHER, PLATE (USA)
-
576R7-83623-40-00 MARK 3 (USA)MARK 3 (USA)
-
5890465-13M36-00 CLAMP (USA)CLAMP (USA)
-
5990465-11M52-00 CLAMP (USA)CLAMP (USA)
