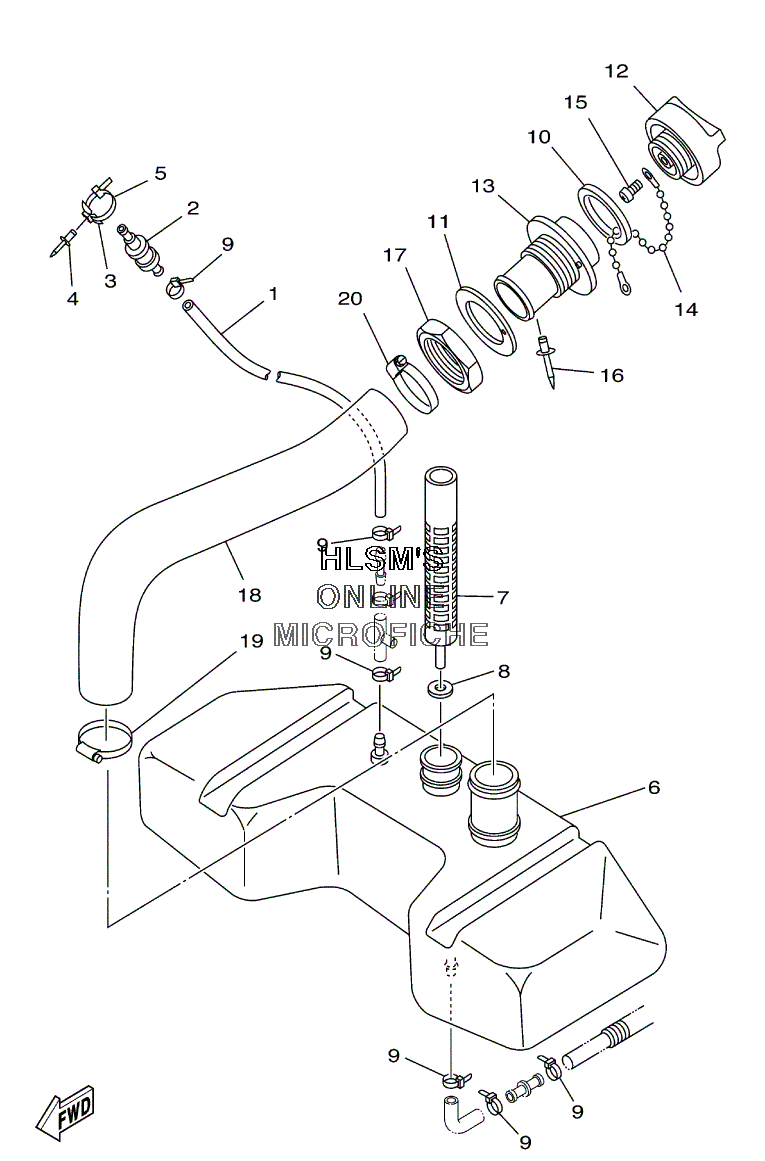

OIL TANK для Yamaha GP 1200 RZ - 2001 года выпуска
-
№АртикулНазвание
-
1F0X-U7856-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
2FJ0-67766-00-00 ROLL OVER VALVEROLL OVER VALVE
-
390600-91736-00 CLAMP COMPCLAMP COMP
-
490267-489U6-00 RIVET, BLINDRIVET, BLIND
-
590464-32801-00 CLAMPCLAMP
-
6F0D-U775B-02-00 TANK, OILTANK, OIL
-
7F0D-6775C-01-00 FILTERFILTER
-
8F0D-6775E-01-00 PACKINGPACKING
-
990465-11829-00 CLAMPCLAMP
-
10GJ3-U778C-00-00 PACKING, OIL CAPPACKING, OIL CAP
-
11F0X-U778E-00-00 PACKING, OIL FILLERPACKING, OIL FILLER
-
12F0X-U778B-00-00 CAP, OIL FILLERCAP, OIL FILLER
-
13F0X-U778D-00-00 SOCKET, OIL FILLERSOCKET, OIL FILLER
-
14EU0-U7835-00-00 CHAIN BALLCHAIN BALL
-
1597780-04110-00 SCREW, TAPPINGSCREW, TAPPING
-
1690267-40935-00 RIVET, BLINDRIVET, BLIND
-
17F0X-U778H-00-00 NUT, OIL FILLERNUT, OIL FILLER
-
18F0X-U776C-00-00 HOSE, OIL FILLERHOSE, OIL FILLER
-
1990601-152U3-00 BAND, HOSE 2BAND, HOSE 2
-
2090464-99803-00 CLAMPCLAMP
