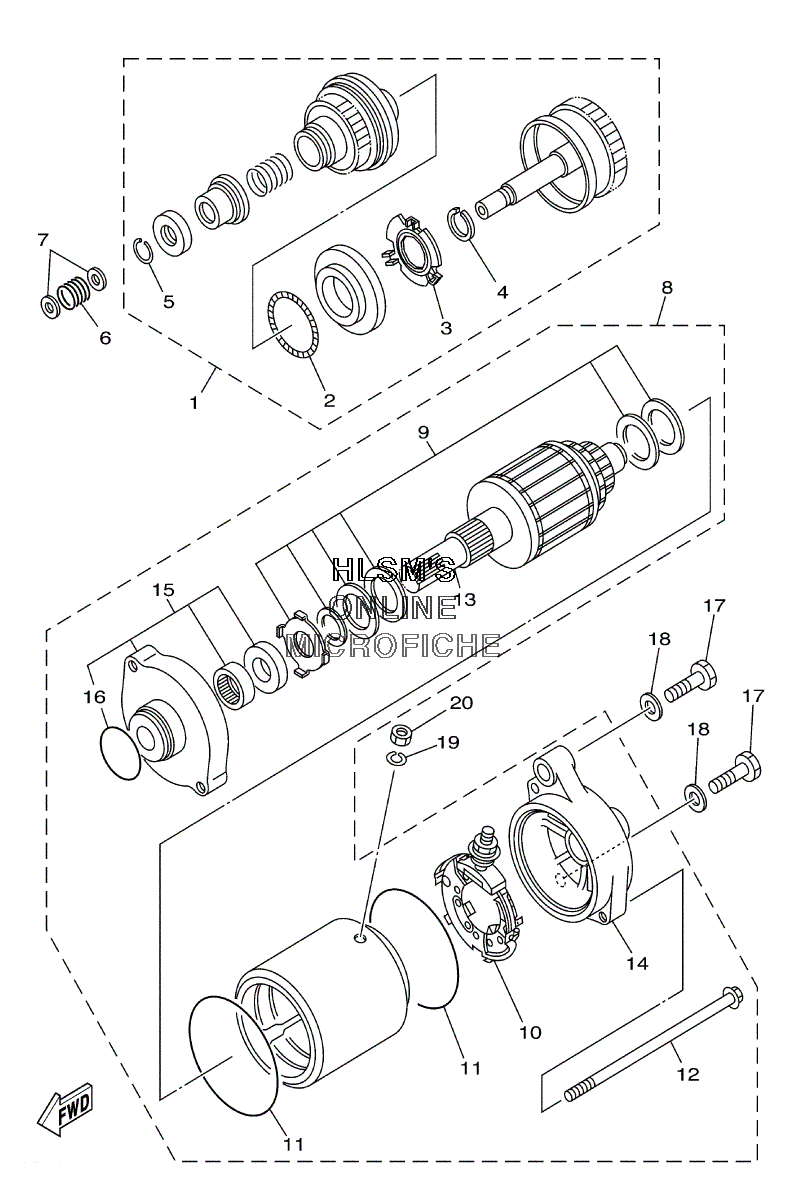

STARTING MOTOR для Yamaha GP 1200 RZ - 2001 года выпуска
-
№АртикулНазвание
-
16M6-8183E-00-00 IDLE GEAR COMP (USA)IDLE GEAR COMP (USA)
-
26M6-81866-00-00 ...WEIGHT SPRING (USA)...WEIGHT SPRING (USA)
-
36M6-81865-00-00 ...WEIGHT HOLDER (USA)...WEIGHT HOLDER (USA)
-
493440-25M08-00 ...CIRCLIP (USA)...CIRCLIP (USA)
-
593450-18M06-00 ...CIRCLIP (USA)...CIRCLIP (USA)
-
690501-14M73-00 SPRING, COMPRESSION (USA)SPRING, COMPRESSION (USA)
-
792903-06600-00 WASHER, PLATE (USA)WASHER, PLATE (USA)
-
863M-81800-00-00 STARTING MOTOR ASSY (USA)STARTING MOTOR ASSY (USA)
-
93AJ-81809-00-00 ...WASHER KIT (USA)...WASHER KIT (USA)
-
106M6-81840-10-00 ...BRUSH HOLDER ASSY (USA)...BRUSH HOLDER ASSY (USA)
-
1111H-81844-00-00 ...GASKET (USA)...GASKET (USA)
-
126M6-81826-00-00 ...BOLT (USA)...BOLT (USA)
-
136M6-81850-00-00 ...ARMATURE ASSY (USA)...ARMATURE ASSY (USA)
-
1463M-81830-00-00 ...REAR BRACKET ASSY (USA)...REAR BRACKET ASSY (USA)
-
156M6-81830-00-00 ...FRONT BRACKET ASSY (USA)...FRONT BRACKET ASSY (USA)
-
161FK-81847-00-00 ......O-RING (USA)......O-RING (USA)
-
1797013-08025-00 BOLT (USA)BOLT (USA)
-
1892903-08600-00 WASHER, PLATE (USA)WASHER, PLATE (USA)
-
1992990-06100-00 WASHER, SPRING (USA)WASHER, SPRING (USA)
-
2095380-06700-00 NUT (USA)NUT (USA)
