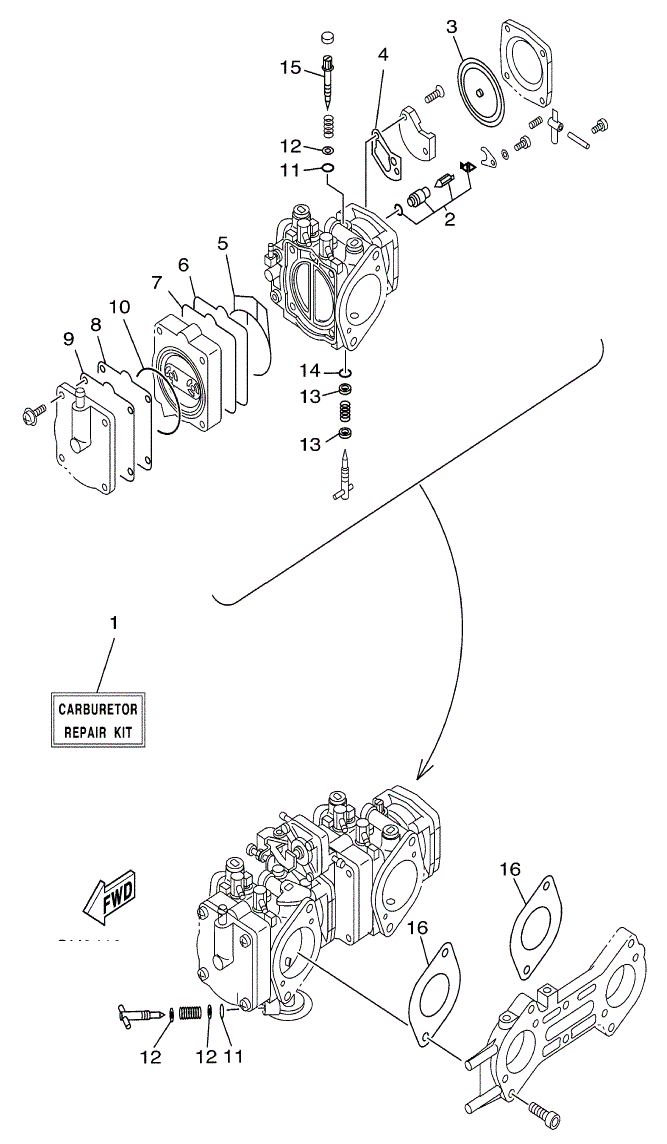

CARBURETOR REPAIR KIT для Yamaha GP 800 A - 2002 года выпуска
-
№АртикулНазвание
-
166E-W0093-01-00 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
264T-14916-00-00 ...NEEDLE...NEEDLE
-
36R7-14541-00-00 ...DIAPHRAGM, PUMP...DIAPHRAGM, PUMP
-
46K8-14536-11-00 ...GASKET...GASKET
-
566E-14563-01-00 ...O-RING...O-RING
-
666E-24471-00-00 ...DIAPHRAGM...DIAPHRAGM
-
766E-24411-00-00 ...DIAPHRAGM...DIAPHRAGM
-
866E-24421-00-00 ...VALVE, CHECK...VALVE, CHECK
-
966E-24431-00-00 ...GASKET, FUEL PUMP 1...GASKET, FUEL PUMP 1
-
1066E-14564-01-00 ...O-RING...O-RING
-
11812-14147-00-00 ...O-RING...O-RING
-
12812-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
13822-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
14583-14561-00-00 ...O-RING...O-RING
-
156K8-14946-10-00 ...METERING NEEDLE...METERING NEEDLE
-
1666E-14398-00-00 ...GASKET...GASKET
