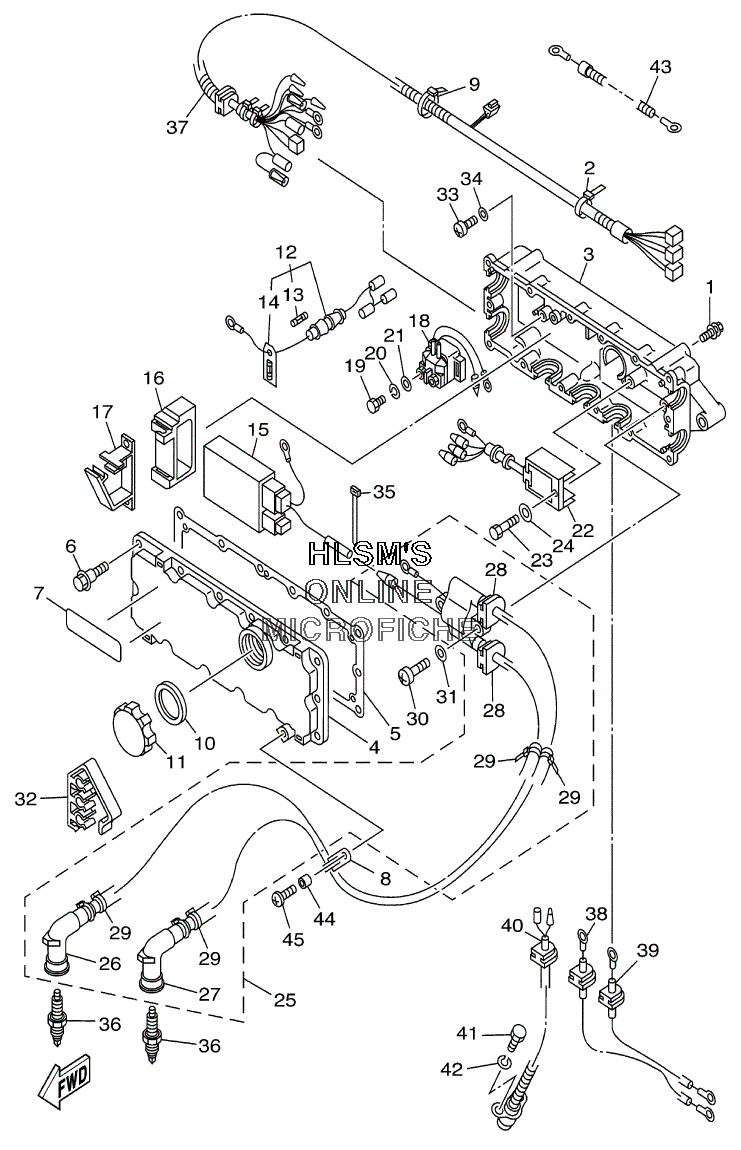

ELECTRICAL 1 для Yamaha GP 800 A - 2002 года выпуска
-
№АртикулНазвание
-
190119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
290465-12M56-00 CLAMPCLAMP
-
366E-8552A-00-94 HOUSINGHOUSING
-
466E-8552E-00-00 COVER, CASECOVER, CASE
-
566E-81921-00-00 GASKET, TERMINALGASKET, TERMINAL
-
690109-05MA0-00 BOLTBOLT
-
76R7-83623-40-00 MARK 3MARK 3
-
890465-12M53-00 CLAMPCLAMP
-
990465-13M36-00 CLAMPCLAMP
-
106M6-81844-00-00 GASKETGASKET
-
116M6-8132W-00-00 CAPCAP
-
1266E-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
136G1-82151-00-00 ......FUSE......FUSE
-
146K8-82159-00-00 ......FUSE SPEAR......FUSE SPEAR
-
1566E-85540-00-00 C.D.IUNIT ASSYC.D.IUNIT ASSY
-
1664X-85546-00-00 BANDBAND
-
1790464-06M29-00 CLAMPCLAMP
-
1868N-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1997095-06010-00 BOLTBOLT
-
2092995-06100-00 WASHER, SPRINGWASHER, SPRING
-
2192995-06600-00 WASHERWASHER
-
2263M-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2397095-06012-00 BOLTBOLT
-
2492995-06600-00 WASHERWASHER
-
2564X-85570-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
2662E-82371-11-00 ......CAP, PLUG......CAP, PLUG
-
2762E-82371-11-00 ......CAP, PLUG......CAP, PLUG
-
2890480-06M43-00 ...GROMMET...GROMMET
-
2990465-11M10-00 ...CLAMP...CLAMP
-
3097880-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3192990-06600-00 WASHER, PLATEWASHER, PLATE
-
3265U-81317-10-00 CLAMP, CORDCLAMP, CORD
-
3397880-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3492990-06600-00 WASHER, PLATEWASHER, PLATE
-
3590465-11M10-00 CLAMPCLAMP
-
36NGK-BR8ES-00-00 PLUG, SPARK (NGK BR8ES)PLUG, SPARK (NGK BR8ES)
-
3768A-82553-10-00 EXTENSION, WIRE LEADEXTENSION, WIRE LEAD
-
3862E-82117-20-00 WIRE, LEADWIRE, LEAD
-
3968A-82117-10-00 WIRE, LEADWIRE, LEAD
-
4068A-82560-00-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
4197095-06016-00 BOLTBOLT
-
4292995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4361L-82117-00-00 WIRE, LEADWIRE, LEAD
-
4490387-06M05-00 COLLARCOLLAR
-
4597780-60425-00 SCREW, TAPPINGSCREW, TAPPING
