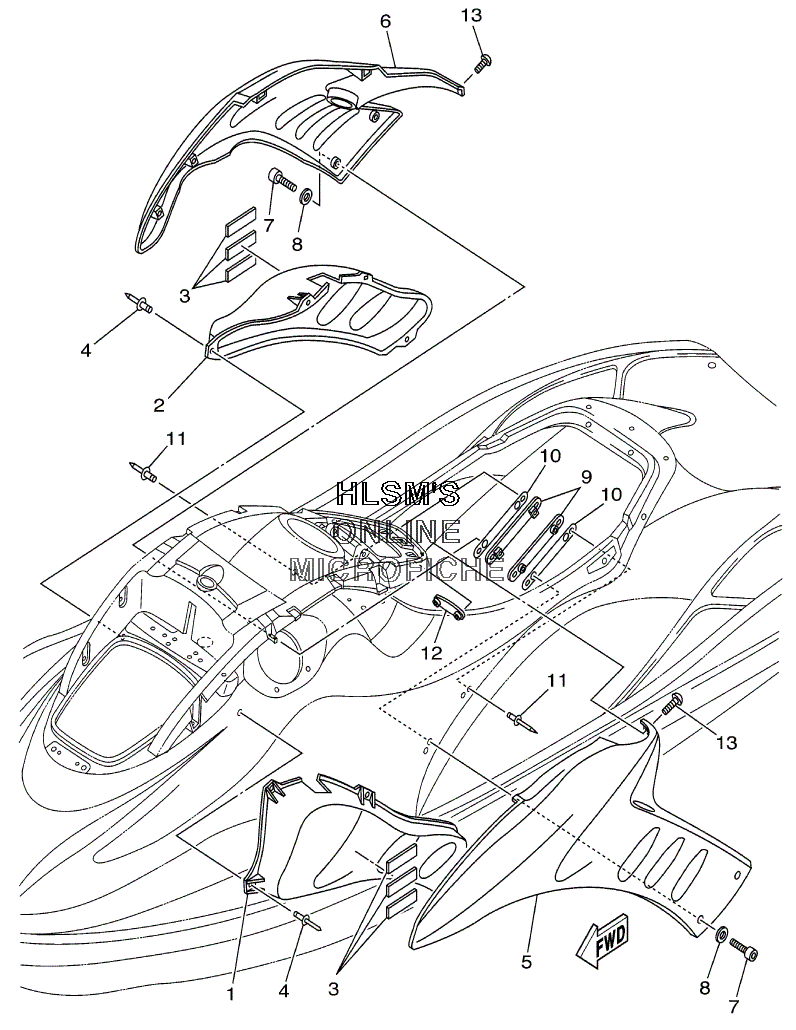

SIDE COVERS для Yamaha GP 800 A - 2002 года выпуска
-
№АртикулНазвание
-
1F0X-62187-00-00 BOX, INDUCATION 1BOX, INDUCATION 1
-
2F0X-62188-00-00 BOX, INDUCATION 2BOX, INDUCATION 2
-
3F0X-6351C-00-00 MAT, SIDE 1MAT, SIDE 1
-
490267-48806-00 RIVET, BLINDRIVET, BLIND
-
5F0X-U377B-10-P0 COVER, SIDE 1 (DARK PURPLISH BLUE METALLIC F)COVER, SIDE 1 (DARK PURPLISH BLUE METALLIC F)
-
6F0X-U377C-10-P0 COVER, SIDE 2 (DARK PURPLISH BLUE METALLIC F)COVER, SIDE 2 (DARK PURPLISH BLUE METALLIC F)
-
790110-06008-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
89299R-06200-00 WASHERWASHER
-
9F0X-6377M-00-00 BRKT., COVER SIDE 1BRKT., COVER SIDE 1
-
10F0X-U3635-01-00 TAPE, FITTINGTAPE, FITTING
-
1190267-48806-00 RIVET, BLINDRIVET, BLIND
-
12F0X-6377P-00-00 BRKT., COVER SIDE 3BRKT., COVER SIDE 3
-
1390111-05001-00 BOLTBOLT
