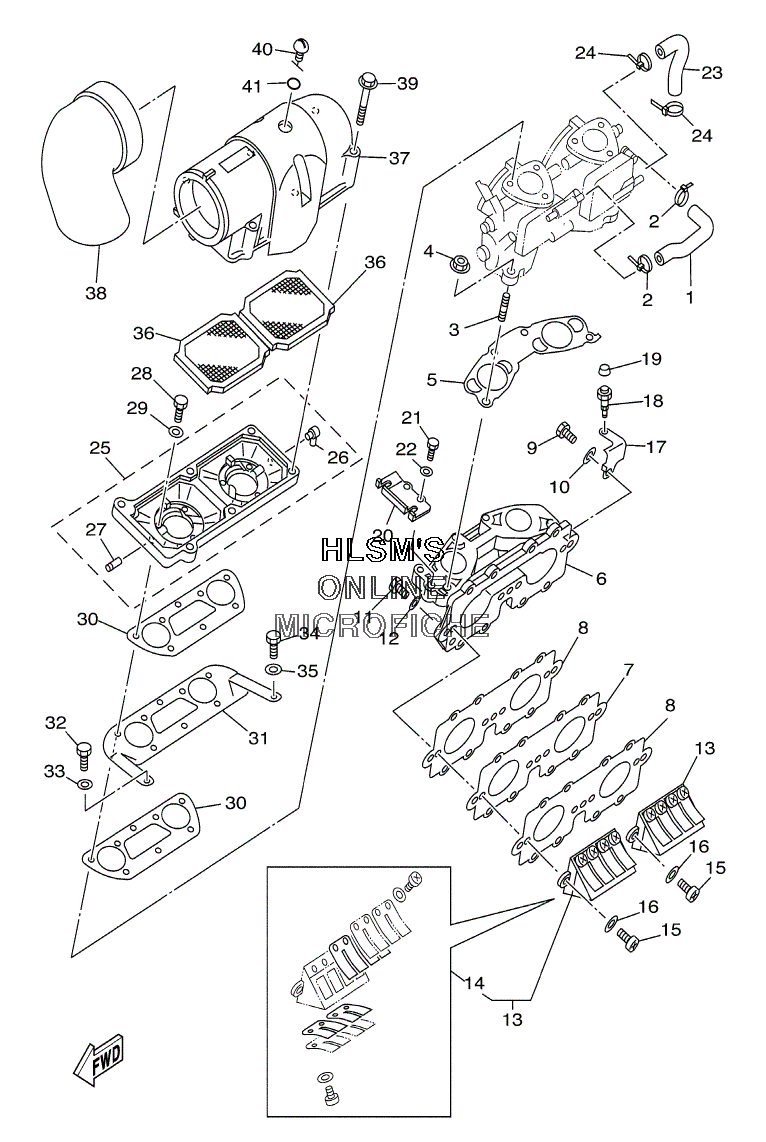

AIR SILENCER W/ INTAKE для Yamaha XL 700 A - 2002 года выпуска
-
№АртикулНазвание
-
162T-24313-01-00 PIPE 3PIPE 3
-
290465-11M10-00 CLAMPCLAMP
-
390116-08M60-00 BOLT, STUDBOLT, STUD
-
490179-08M15-00 NUTNUT
-
562T-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
662T-13555-00-8P MANIFOLD, INTAKEMANIFOLD, INTAKE
-
762T-13624-00-00 PLATE, REED VALVEPLATE, REED VALVE
-
862T-13566-00-00 ...GASKET...GASKET
-
997013-06035-00 BOLTBOLT
-
1092903-06600-00 WASHER, PLATEWASHER, PLATE
-
1197013-06025-00 BOLTBOLT
-
1292903-06600-00 WASHER, PLATEWASHER, PLATE
-
1362T-13610-00-00 REED VALVE ASSYREED VALVE ASSY
-
1462T-W0004-00-00 ...REED SET...REED SET
-
1597880-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692990-05600-00 WASHER, PLATEWASHER, PLATE
-
1762T-14243-01-00 PLATEPLATE
-
1861L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
-
19663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
2062T-14527-02-00 PLATEPLATE
-
2197013-06016-00 BOLTBOLT
-
2292903-06600-00 WASHER, PLATEWASHER, PLATE
-
2362T-24314-01-00 PIPE 4PIPE 4
-
2490465-11M10-00 CLAMPCLAMP
-
2562T-14284-01-8P COVER, CARBURETOR 2COVER, CARBURETOR 2
-
266E5-11372-00-00 ...NIPPLE, HOSE...NIPPLE, HOSE
-
276H1-14485-00-00 ....PIPE, JOINT....PIPE, JOINT
-
2897013-06020-00 BOLTBOLT
-
2992903-06600-00 WASHER, PLATEWASHER, PLATE
-
3062T-13674-00-00 ...GASKET, AIR COOLER COVER 1...GASKET, AIR COOLER COVER 1
-
3162T-14255-00-00 PLATEPLATE
-
3297013-06012-00 BOLTBOLT
-
3392903-06600-00 WASHER, PLATEWASHER, PLATE
-
3490109-06M66-00 BOLTBOLT
-
3590201-06M31-00 WASHER, PLATEWASHER, PLATE
-
3662T-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
3762T-14283-00-00 COVER, CARBURETOR 1COVER, CARBURETOR 1
-
3862T-14419-00-00 PIPEPIPE
-
3990119-05M02-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4062T-14435-00-00 GROMMETGROMMET
-
4193210-13M63-00 O-RINGO-RING
