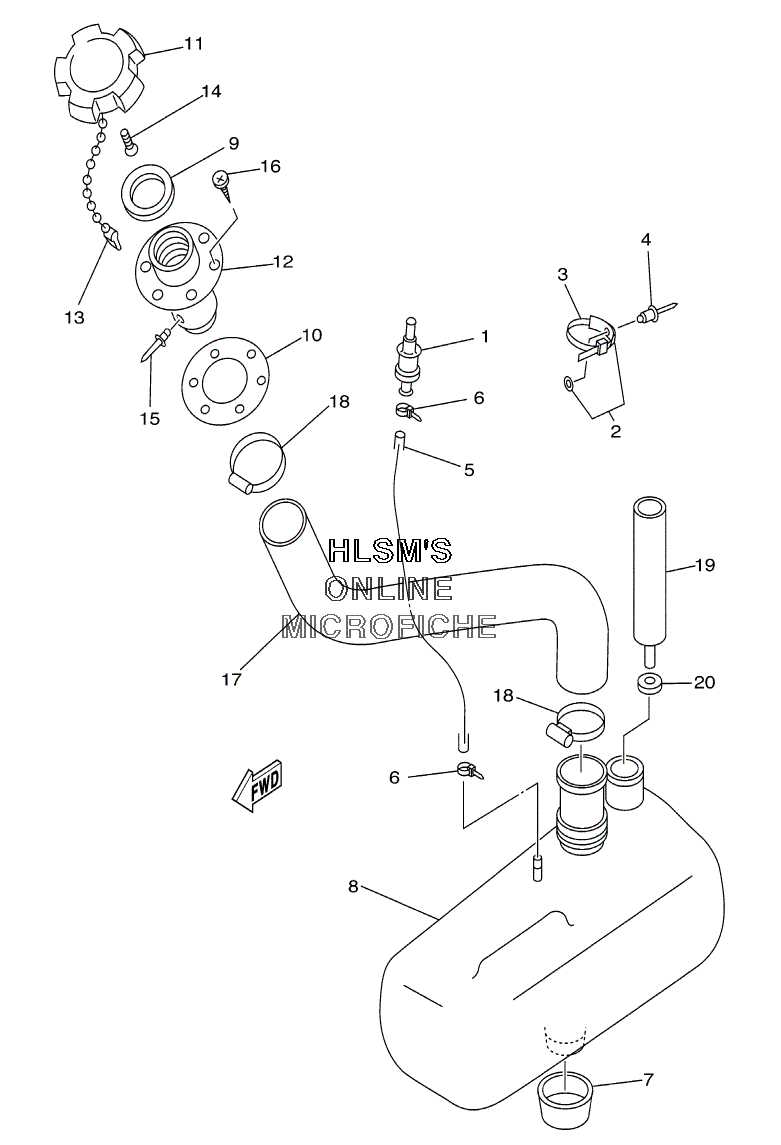

OIL TANK для Yamaha XL 700 A - 2002 года выпуска
-
№АртикулНазвание
-
1FJ0-67766-00-00 ROLL OVER VALVEROLL OVER VALVE
-
290600-91736-00 CLAMP COMPCLAMP COMP
-
390464-32801-00 CLAMPCLAMP
-
490267-48802-00 RIVET, BLINDRIVET, BLIND
-
5GJ3-U7856-20-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
690465-11829-00 CLAMPCLAMP
-
7GH1-U759D-00-00 MAT 3MAT 3
-
8GJ3-U775B-01-00 TANK, OILTANK, OIL
-
9GJ3-U778C-00-00 PACKING, OIL CAPPACKING, OIL CAP
-
10GJ3-U778E-00-00 PACKING, OIL FILLERPACKING, OIL FILLER
-
11GJ3-U778B-00-00 CAP, OIL FILLERCAP, OIL FILLER
-
12GJ3-U778D-00-00 SOCKET, OIL FILLERSOCKET, OIL FILLER
-
13EU0-U7835-00-00 CHAIN BALLCHAIN BALL
-
1497780-04110-00 SCREW, TAPPINGSCREW, TAPPING
-
1590267-40935-00 RIVET, BLINDRIVET, BLIND
-
16FX1-67869-00-00 SCREW, FLAT HEAD TAPPINGSCREW, FLAT HEAD TAPPING
-
17GU2-U776C-00-00 HOSE, OIL FILLERHOSE, OIL FILLER
-
1890601-152U3-00 BAND, HOSE 2BAND, HOSE 2
-
196J8-13411-00-00 STRAINER, OILSTRAINER, OIL
-
206J8-13414-00-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
