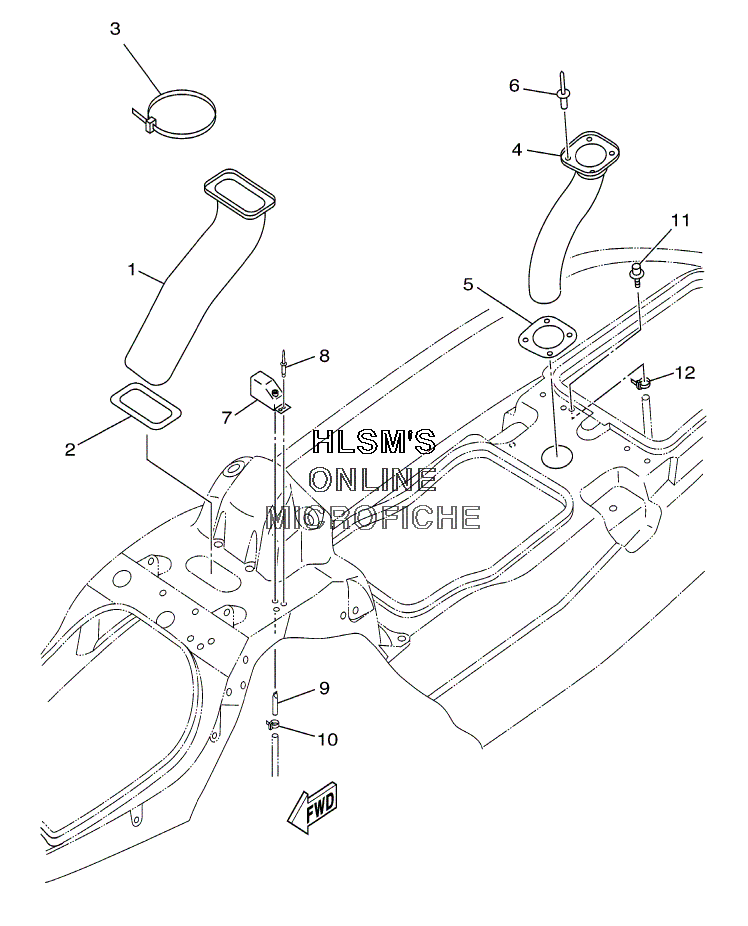

VENTILATION для Yamaha XL 700 A - 2002 года выпуска
-
№АртикулНазвание
-
1GU2-U213F-01-00 HOSE, VENTILATOR 1HOSE, VENTILATOR 1
-
2GU2-U2117-00-00 SEAL, AIR INTAKE 1SEAL, AIR INTAKE 1
-
390601-200U7-00 BANDBAND
-
4GU2-U213G-00-00 HOSE, VENTILATOR 2HOSE, VENTILATOR 2
-
5GU2-U2118-00-00 SEAL, AIR INTAKE 2SEAL, AIR INTAKE 2
-
690269-07923-00 RIVETRIVET
-
7GP7-62159-01-00 SOCKET, VENTILATIONSOCKET, VENTILATION
-
890267-48802-00 RIVET, BLINDRIVET, BLIND
-
9EW2-62149-00-00 PIPE, VENTILATION 1PIPE, VENTILATION 1
-
1090465-11829-00 CLAMPCLAMP
-
11GJ3-6215F-00-00 NIPPLENIPPLE
-
1290465-11829-00 CLAMPCLAMP
