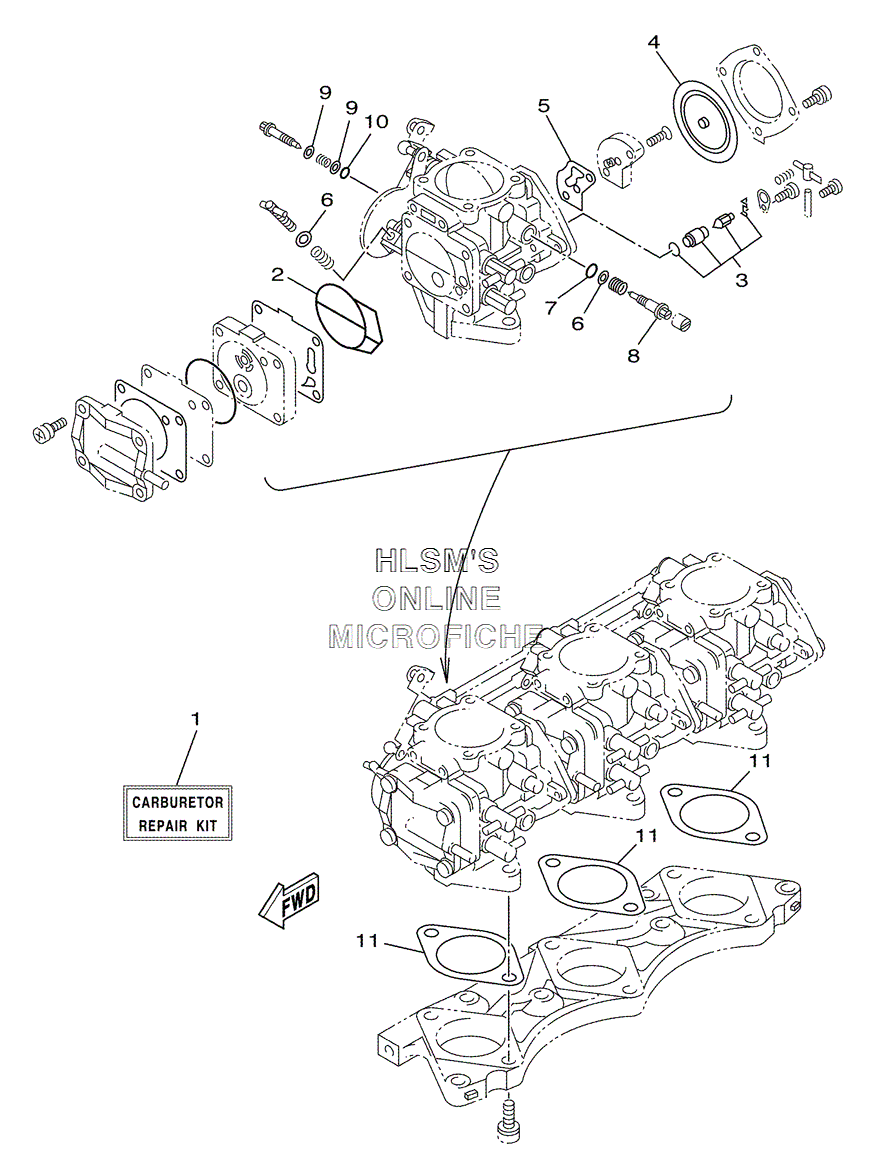

CARBURETOR REPAIR KIT для Yamaha SV1200 SUV 4-PERSON - 2004 года выпуска

-
№АртикулНазвание
-
165U-W0093-00-00 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
26K8-14564-00-00 ...O-RING...O-RING
-
364T-14916-01-00 ...NEEDLE...NEEDLE
-
46R7-14541-00-00 ...DIAPHRAGM, PUMP...DIAPHRAGM, PUMP
-
56K8-14536-11-00 ...GASKET...GASKET
-
6812-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
7812-14147-00-00 ...O-RING...O-RING
-
86K8-14946-10-00 ...METERING NEEDLE...METERING NEEDLE
-
9822-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
10583-14561-00-00 ...O-RING...O-RING
