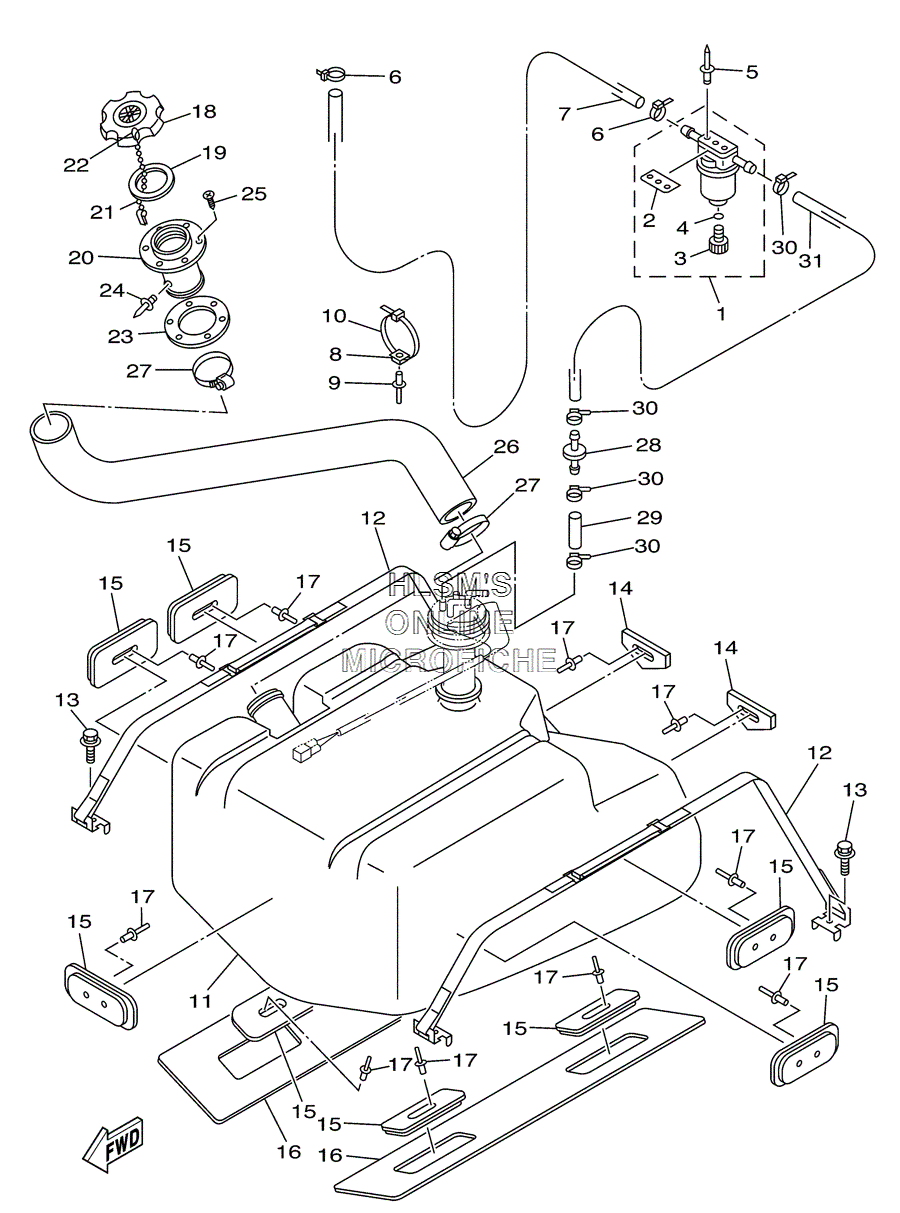

FUEL TANK для Yamaha SV1200 SUV 4-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
1EW2-62140-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
2EW2-62142-00-00 ...PLATE, FILTER...PLATE, FILTER
-
370R-24543-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
470R-24489-00-00 ...O-RING...O-RING
-
590267-489U2-00 RIVET, BLINDRIVET, BLIND
-
690465-11829-00 CLAMPCLAMP
-
7GP7-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
890600-917U4-00 CLAMP COMP.CLAMP COMP.
-
990267-48802-00 RIVET, BLINDRIVET, BLIND
-
1090464-32801-00 CLAMPCLAMP
-
11GU5-U7711-00-00 TANK, FUELTANK, FUEL
-
12GH3-67743-01-00 BELT, TANK 1BELT, TANK 1
-
1390119-08826-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
14GU5-U759B-00-00 MAT 1MAT 1
-
15GU5-U759C-00-00 MAT 2MAT 2
-
16GU5-U759D-00-00 MAT 3MAT 3
-
1790267-489UK-00 RIVET, BLINDRIVET, BLIND
-
18FN8-67831-01-00 CAP, FUEL FILLER (YB - YAMAHA BLACK)CAP, FUEL FILLER (YB - YAMAHA BLACK)
-
19EU0-67832-00-00 PACKING 1PACKING 1
-
20FN8-67833-00-00 SOCKETSOCKET
-
21EU0-67835-00-00 CHAIN BALLCHAIN BALL
-
22EU0-67839-00-00 COUPLINGCOUPLING
-
23EU0-67834-00-00 PACKING, FUEL FILLERPACKING, FUEL FILLER
-
2490267-40935-00 RIVET, BLINDRIVET, BLIND
-
25FX1-67869-00-00 SCREW, FLAT HEAD TAPPINGSCREW, FLAT HEAD TAPPING
-
26GU5-U7844-00-00 HOSEHOSE
-
2790601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
28EU0-67767-31-00 CHECK VALVECHECK VALVE
-
29GA7-U785G-00-00 HOSE, AIR VENTHOSE, AIR VENT
-
3090465-11829-00 CLAMPCLAMP
-
31GJ3-U7856-10-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
