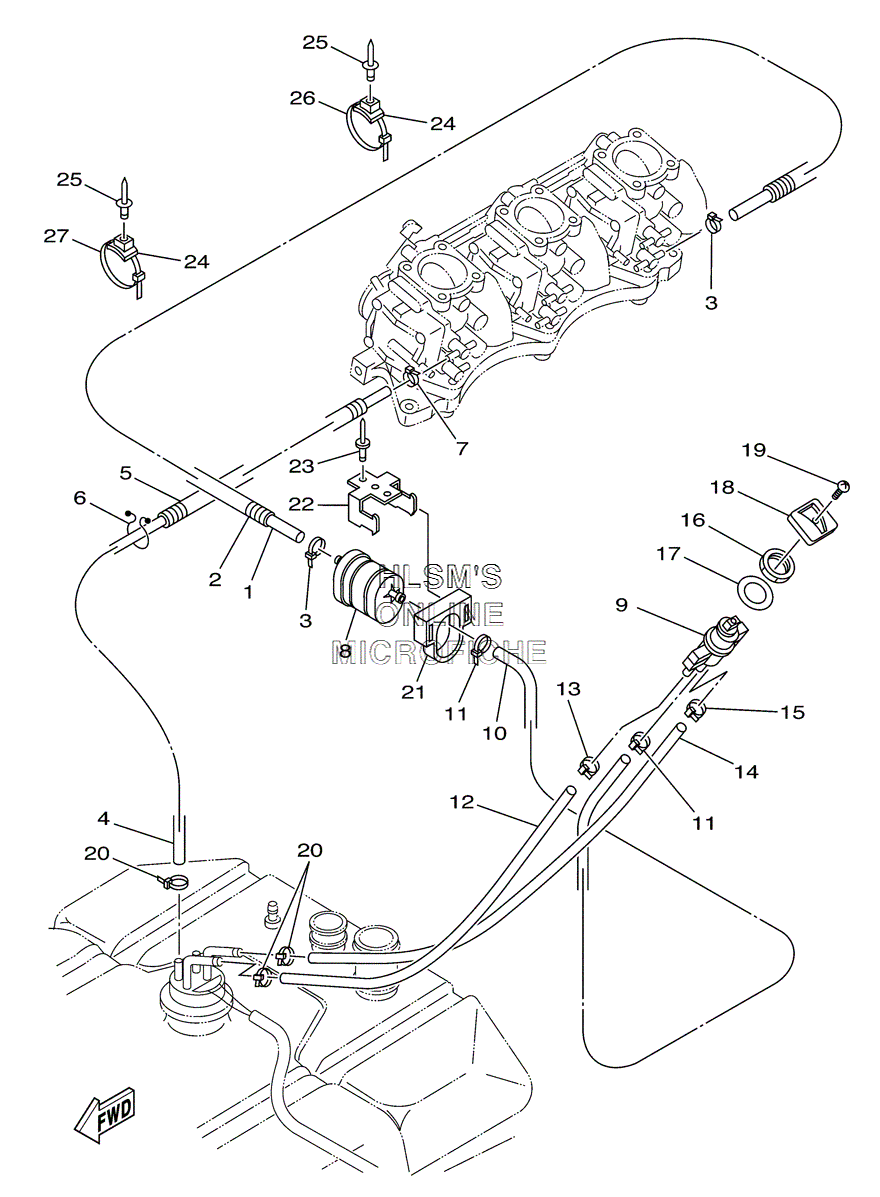

FUEL LINES для Yamaha SV1200 SUV 4-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
190445-11M59-00 HOSE (L1400)HOSE (L1400)
-
290446-17MA7-00 HOSE (L800)HOSE (L800)
-
390465-11M10-00 CLAMPCLAMP
-
490445-11M60-00 HOSE (L910)HOSE (L910)
-
590446-17MA8-00 HOSE (L200)HOSE (L200)
-
690464-13M54-00 CLAMPCLAMP
-
790465-11M10-00 CLAMPCLAMP
-
866V-24560-00-00 FILTER ASSYFILTER ASSY
-
966V-24500-02-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
1090445-11M63-00 HOSE (L740)HOSE (L740)
-
1190465-11M10-00 CLAMPCLAMP
-
1290445-11M61-00 HOSE (L600)HOSE (L600)
-
1390465-11M10-00 CLAMPCLAMP
-
1490445-11M62-00 HOSE (L600)HOSE (L600)
-
1590465-11M10-00 CLAMPCLAMP
-
1690170-22187-00 NUTNUT
-
1790202-229U1-00 WASHER, PLATEWASHER, PLATE
-
18F0D-6777C-00-00 LEVER, COCKLEVER, COCK
-
1998980-04008-00 SCREW, BINDSCREW, BIND
-
2090465-11829-00 CLAMPCLAMP
-
21EU0-67817-00-00 HOLDERHOLDER
-
22EU0-67816-30-00 BRACKET, FUEL FILTERBRACKET, FUEL FILTER
-
2390267-489U2-00 RIVET, BLINDRIVET, BLIND
-
2490600-917U4-00 CLAMP COMP.CLAMP COMP.
-
2590267-48802-00 RIVET, BLINDRIVET, BLIND
-
2690464-32801-00 CLAMPCLAMP
-
2790601-200U2-00 BANDBAND
