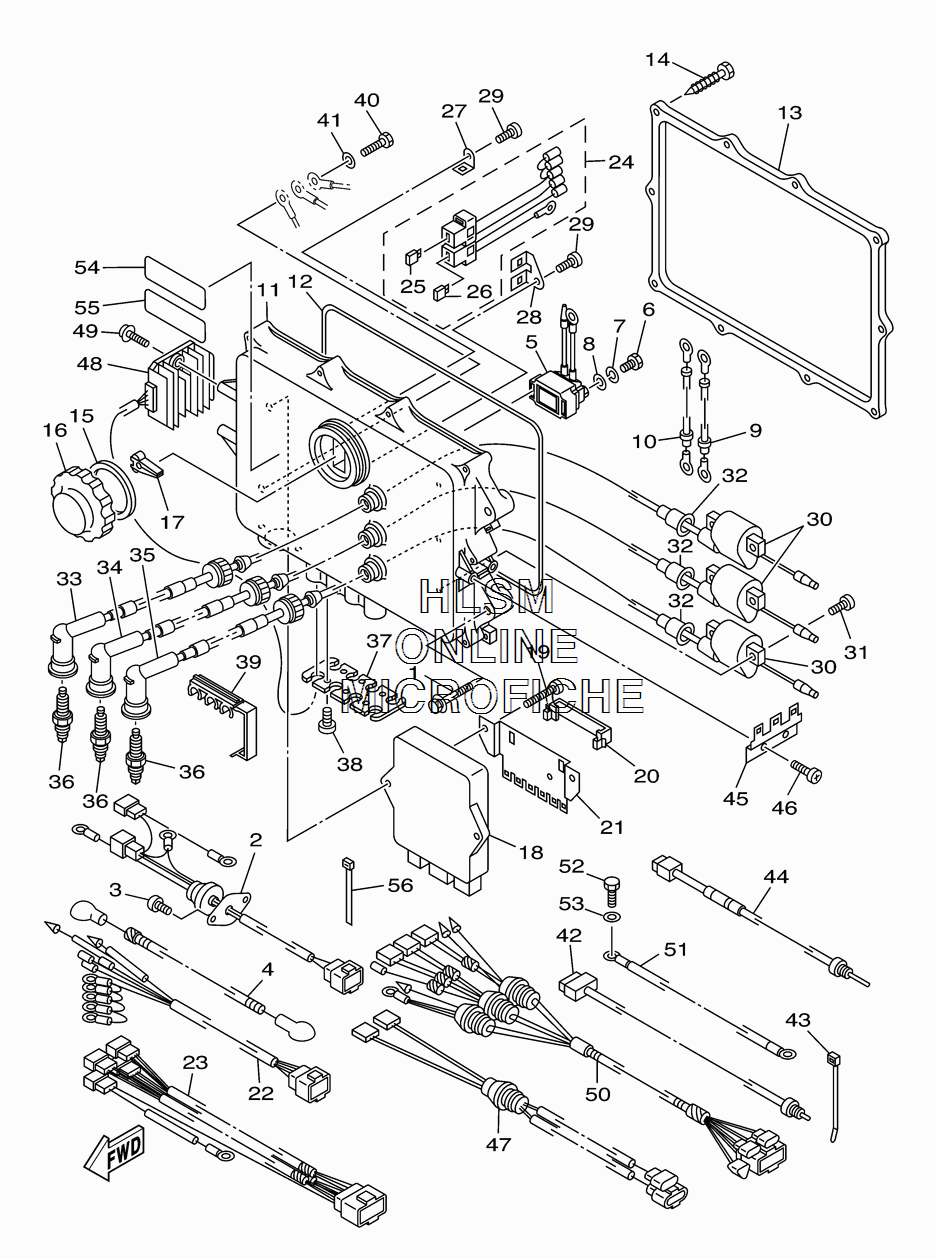

ELECTRICAL 1 для Yamaha XLT1200 3-PASS - 2005 года выпуска
-
№АртикулНазвание
-
190119-089UR-00 BOLT WITH WASHERBOLT WITH WASHER
-
266V-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
397780-60425-00 SCREW, TAPPINGSCREW, TAPPING
-
466V-82117-00-00 WIRE, LEADWIRE, LEAD
-
568N-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
697095-06010-00 BOLTBOLT
-
792995-06100-00 WASHER, SPRINGWASHER, SPRING
-
892995-06600-00 WASHERWASHER
-
966V-82117-10-00 WIRE, LEADWIRE, LEAD
-
1066V-82117-20-00 WIRE, LEADWIRE, LEAD
-
1166V-8552A-00-00 HOUSINGHOUSING
-
1266V-81921-00-00 GASKET, TERMINALGASKET, TERMINAL
-
1366V-8552E-00-00 COVER, CASECOVER, CASE
-
1497780-60430-00 SCREW, TAPPINGSCREW, TAPPING
-
1566V-81844-00-00 GASKETGASKET
-
1666V-8132W-00-00 CAPCAP
-
1767F-2812A-00-00 PULLER, FUSEPULLER, FUSE
-
1866V-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
1997780-60530-00 SCREW, TAPPINGSCREW, TAPPING
-
2066V-83919-00-00 CLAMP, HARNESSCLAMP, HARNESS
-
2166V-83955-00-00 BRACKET 1BRACKET 1
-
2266V-85515-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
2366V-83553-00-00 WIRE, LEADWIRE, LEAD
-
2466V-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
2567F-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
2666V-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
2766V-82171-00-00 STAY, FUSE BOXSTAY, FUSE BOX
-
2866V-82153-00-00 STAY, FUSE HOLDERSTAY, FUSE HOLDER
-
2997780-60516-00 SCREW, TAPPINGSCREW, TAPPING
-
3066V-85570-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
3197780-60525-00 SCREW, TAPPINGSCREW, TAPPING
-
3266V-82355-00-00 GROMMETGROMMET
-
3366V-82340-01-00 HIGH TENSION CORD ASSY 1HIGH TENSION CORD ASSY 1
-
3466V-82340-11-00 HIGH TENSION CORD ASSY 1HIGH TENSION CORD ASSY 1
-
3566V-82340-21-00 HIGH TENSION CORD ASSY 1HIGH TENSION CORD ASSY 1
-
3694702-00396-00 PLUG, SPARK (NGK BR8ES-11)PLUG, SPARK (NGK BR8ES-11)
-
3766V-85525-00-00 COVERCOVER
-
3897780-60425-00 SCREW, TAPPINGSCREW, TAPPING
-
3965U-81317-10-00 CLAMP, CORDCLAMP, CORD
-
4097095-06012-00 BOLTBOLT
-
4192995-06600-00 WASHERWASHER
-
4266V-85790-10-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
4390465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
4466V-85881-00-00 SENSOR, EXT, TEMP.SENSOR, EXT, TEMP.
-
4566V-85542-00-00 BRACKETBRACKET
-
4697780-60516-00 SCREW, TAPPINGSCREW, TAPPING
-
4766V-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
4866V-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
4997780-60425-00 SCREW, TAPPINGSCREW, TAPPING
-
5066V-82553-10-00 EXTENSION, WIRE LEADEXTENSION, WIRE LEAD
-
5166V-82127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
5297013-06016-00 BOLTBOLT
-
5392903-06600-00 WASHER, PLATEWASHER, PLATE
-
546R7-83623-40-00 MARK 3MARK 3
-
5560E-83627-00-00 LABEL, CAUTION 7LABEL, CAUTION 7
-
5690465-13M36-00 CLAMPCLAMP
