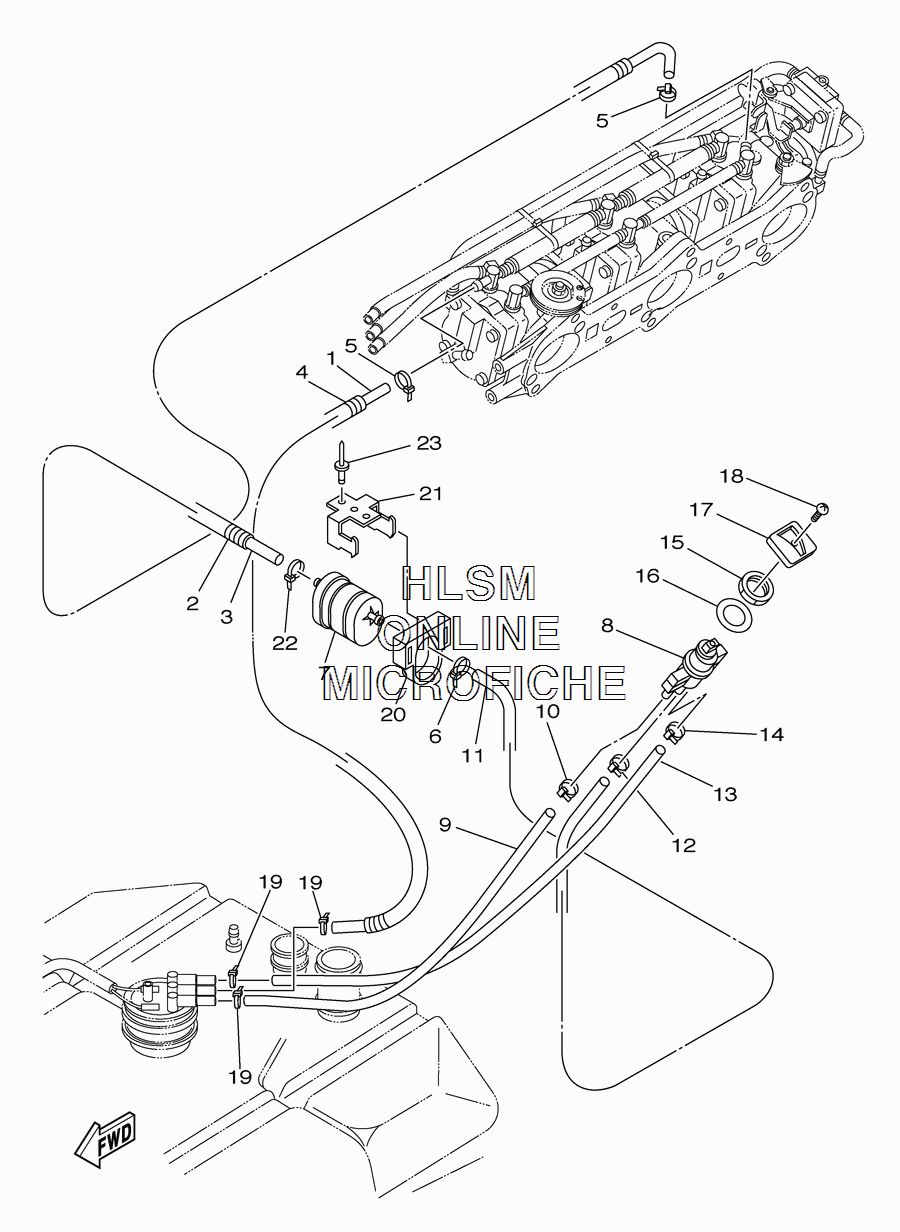

FUEL LINES для Yamaha XLT1200 3-PASS - 2005 года выпуска
-
№АртикулНазвание
-
190445-11M70-00 HOSE (L1000)HOSE (L1000)
-
290446-17MA5-00 HOSE (L900)HOSE (L900)
-
390445-11019-00 HOSE (L1250)HOSE (L1250)
-
490447-13005-00 HOSE WITH SPRINGHOSE WITH SPRING
-
590465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
690465-11829-00 CLAMPCLAMP
-
766V-24560-00-00 FILTER ASSYFILTER ASSY
-
866V-24500-02-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
990445-11M67-00 HOSE (L450)HOSE (L450)
-
1090465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
1190445-11M68-00 HOSE (L450)HOSE (L450)
-
1290465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
1390445-11M69-00 HOSE (L450)HOSE (L450)
-
1490465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
1590170-22187-00 NUTNUT
-
1690202-229U1-00 WASHER, PLATEWASHER, PLATE
-
17F0D-6777C-00-00 LEVER, COCKLEVER, COCK
-
1898980-04008-00 SCREW, BINDSCREW, BIND
-
1990465-11829-00 CLAMPCLAMP
-
20EU0-U7817-00-00 HOLDER, FILTERHOLDER, FILTER
-
21FN8-67816-00-00 BRACKET, FUEL FILTERBRACKET, FUEL FILTER
-
2290465-11829-00 CLAMPCLAMP
-
2390267-489U1-00 RIVET, BLINDRIVET, BLIND
