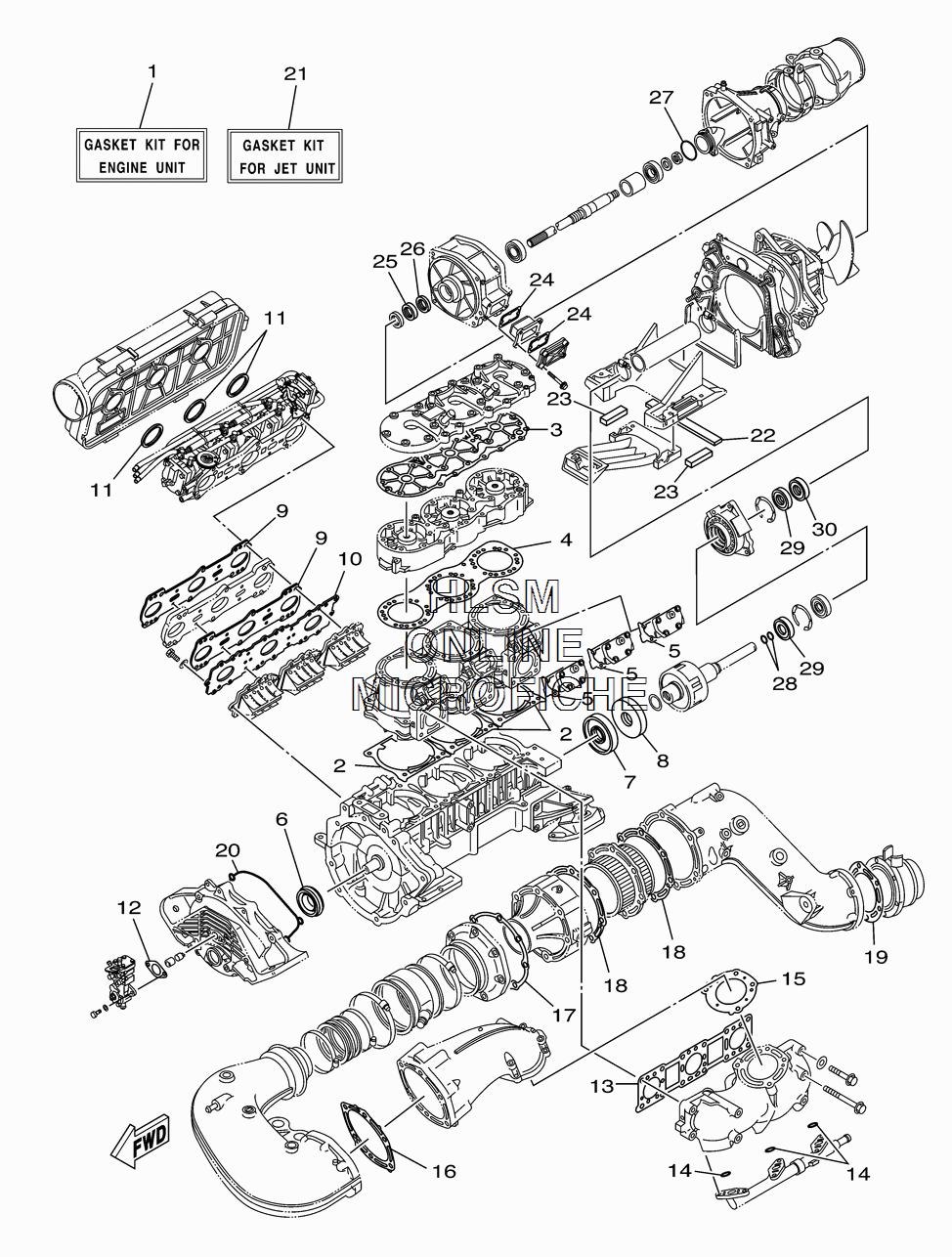

GASKET KIT - ENGINE AND JET UNIT для Yamaha XLT1200 3-PASS - 2005 года выпуска
-
№АртикулНазвание
-
168N-W0001-10-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
266E-11351-01-00 ...GASKET, CYLINDER...GASKET, CYLINDER
-
366V-11193-00-00 ...GASKET, HEAD COVER 1...GASKET, HEAD COVER 1
-
466V-11181-00-00 ...GASKET, CYLINDER HEAD 1...GASKET, CYLINDER HEAD 1
-
566E-1131B-01-00 ...GASKET, COVER...GASKET, COVER
-
693102-35M57-00 ...OIL SEAL...OIL SEAL
-
793101-36M62-00 ...OIL SEAL...OIL SEAL
-
893101-36M61-00 ...OIL SEAL...OIL SEAL
-
968N-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
1066V-13624-00-00 ...PLATE, REED VALVE...PLATE, REED VALVE
-
1166E-13473-00-00 ...O-RING...O-RING
-
1263M-13116-00-00 ...GASKET, PUMP CASE...GASKET, PUMP CASE
-
1366V-14613-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
1493210-17MA4-00 ...O-RING...O-RING
-
1566V-14739-00-00 ...GASKET, MUFFLER DAMPER 1...GASKET, MUFFLER DAMPER 1
-
1666V-14749-00-00 ...GASKET, MUFFLER DAMPER 2...GASKET, MUFFLER DAMPER 2
-
1766V-41114-00-00 ...GASKET, EXHAUST OUTER COVER...GASKET, EXHAUST OUTER COVER
-
1866V-41124-00-00 ...GASKET, EXHAUST OUTER COVER...GASKET, EXHAUST OUTER COVER
-
1968N-14623-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
2066V-81168-10-00 ...O-RING...O-RING
-
2166V-W0001-20-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
2266V-51367-00-00 ...FELT, PACKING...FELT, PACKING
-
2366V-51368-00-00 ...FELT, PACKING...FELT, PACKING
-
2466V-42414-00-00 ...O-RING...O-RING
-
2593101-28M66-00 ...OIL SEAL...OIL SEAL
-
2693101-28M65-00 ...OIL SEAL...OIL SEAL
-
2793210-46M16-00 ...O-RING...O-RING
-
2893210-19MJ4-00 ...O-RING...O-RING
-
2993101-25M55-00 ...OIL SEAL, S-TYPE...OIL SEAL, S-TYPE
-
3093101-25M56-00 ...OIL SEAL, S-TYPE...OIL SEAL, S-TYPE
