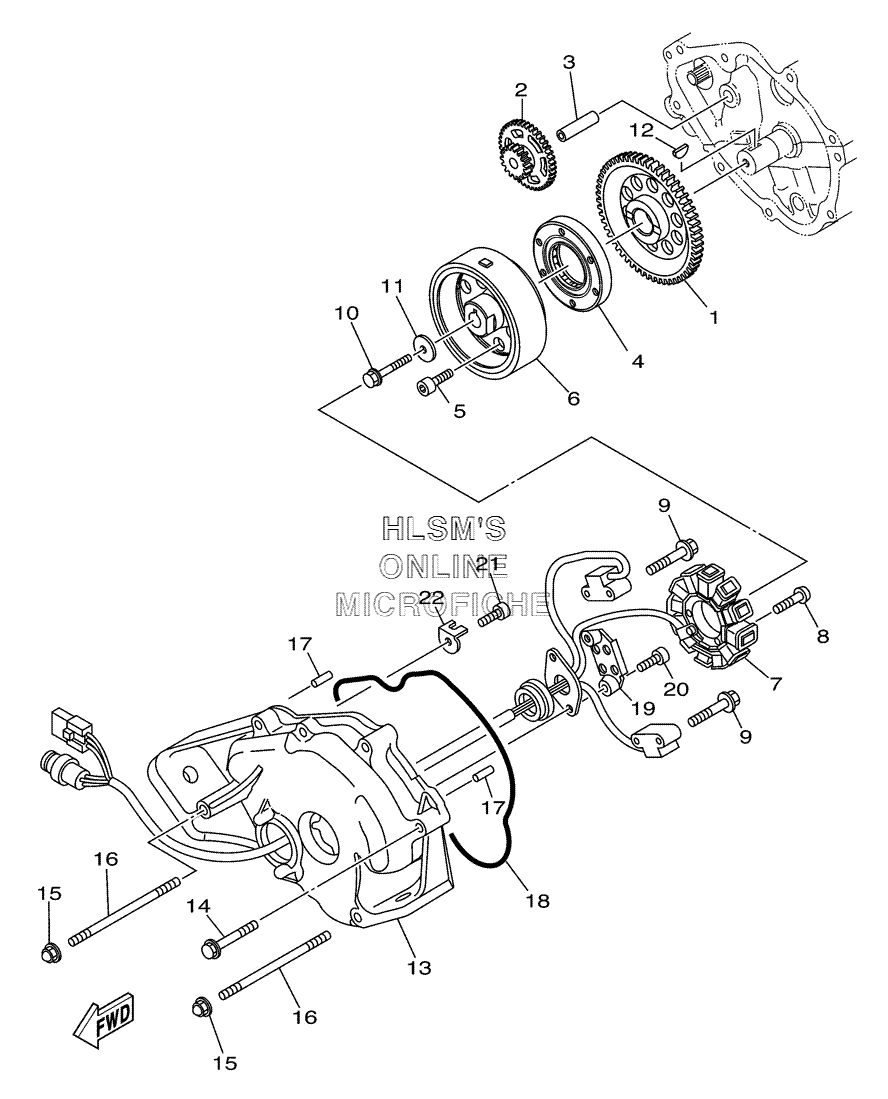

GENERATOR для Yamaha FX HO 3-PERSON - 2006 года выпуска
-
№АртикулНазвание
-
16D3-15515-00-00 GEAR 3GEAR 3
-
260E-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
360E-15521-00-00 SHAFT 1SHAFT 1
-
44WM-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
590110-08212-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
660E-81450-00-00 ROTOR ASSYROTOR ASSY
-
760E-81410-00-00 STATOR ASSYSTATOR ASSY
-
890149-06013-00 SCREWSCREW
-
997513-05514-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090105-105A6-00 BOLT, FLANGEBOLT, FLANGE
-
1190201-103U7-00 WASHER, PLATEWASHER, PLATE
-
1290280-03047-00 KEY, WOODRUFFKEY, WOODRUFF
-
136B6-81337-00-94 COVER, FLYWHEELCOVER, FLYWHEEL
-
1490119-10016-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590176-10001-00 NUT, CROWNNUT, CROWN
-
1690116-10024-00 BOLT, STUDBOLT, STUD
-
1793608-16M16-00 PIN, DOWELPIN, DOWEL
-
1893212-04001-00 O-RINGO-RING
-
1960E-81328-00-00 CLAMPCLAMP
-
2091317-06014-00 BOLTBOLT
-
2191317-05010-00 BOLTBOLT
-
226D3-81845-00-00 PLATEPLATE
