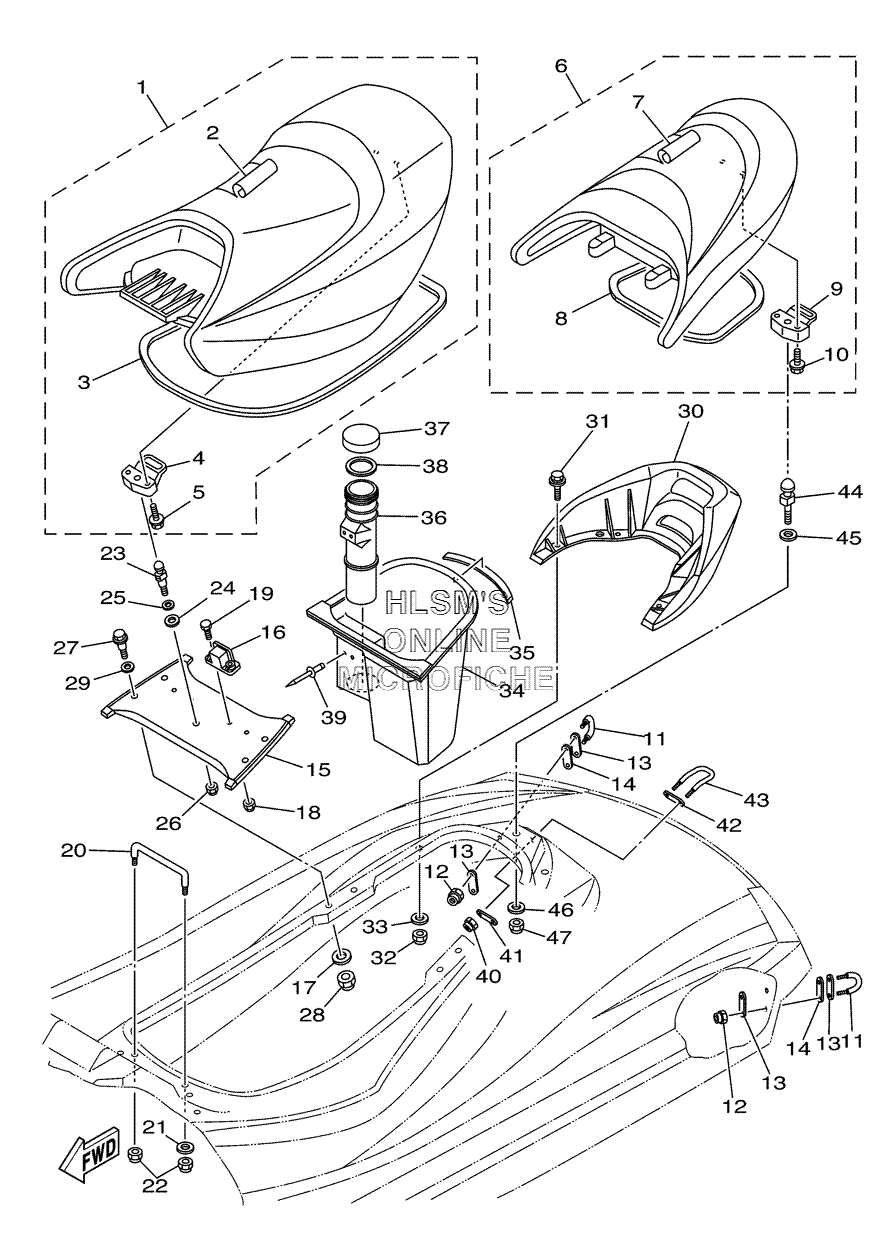

SEAT для Yamaha FX HO 3-PERSON - 2006 года выпуска
-
№АртикулНазвание
-
1F1S-U371A-60-00 DOUBLE SEAT ASSY (GOLD)DOUBLE SEAT ASSY (GOLD)
-
1F1S-U371A-70-00 DOUBLE SEAT ASSY (SILVER)DOUBLE SEAT ASSY (SILVER)
-
1F1S-U371A-90-00 DOUBLE SEAT ASSY (SILVER)DOUBLE SEAT ASSY (SILVER)
-
1F1S-U371A-A0-00 DOUBLE SEAT ASSY (BLUE)DOUBLE SEAT ASSY (BLUE)
-
2F1S-U371B-60-00 ...COVER, SEAT 1 (GOLD)...COVER, SEAT 1 (GOLD)
-
2F1S-U371B-A0-00 ...COVER, SEAT 1 (BLUE)...COVER, SEAT 1 (BLUE)
-
2F1S-U371B-90-00 ...COVER, SEAT 1 (SILVER)...COVER, SEAT 1 (SILVER)
-
2F1S-U371B-70-00 ...COVER, SEAT 1 (SILVER)...COVER, SEAT 1 (SILVER)
-
3F1B-U2664-00-00 ...PACKING...PACKING
-
4F1B-U3850-01-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
590119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
6F1S-U372A-20-00 SINGLE SEAT ASSY (GOLD)SINGLE SEAT ASSY (GOLD)
-
6F1B-U372A-90-00 SINGLE SEAT ASSY (SILVER)SINGLE SEAT ASSY (SILVER)
-
6F1B-U372A-A0-00 SINGLE SEAT ASSY (BLUE)SINGLE SEAT ASSY (BLUE)
-
6F1S-U372A-30-00 SINGLE SEAT ASSY (SILVER)SINGLE SEAT ASSY (SILVER)
-
7F1S-U372B-20-00 ...COVER, SEAT (GOLD)...COVER, SEAT (GOLD)
-
7F1S-U372B-30-00 ...COVER, SEAT (SILVER)...COVER, SEAT (SILVER)
-
7F1B-U372B-90-00 ...COVER, SEAT (SILVER)...COVER, SEAT (SILVER)
-
7F1B-U372B-A0-00 ...COVER, SEAT (BLUE)...COVER, SEAT (BLUE)
-
8F1B-U266D-00-00 ...PACKING 5...PACKING 5
-
9F1B-U3850-01-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
1090119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
11F1K-61628-00-00 STERN EYESTERN EYE
-
129572R-08300-00 NUT, FLANGENUT, FLANGE
-
13GP7-U4953-10-00 PLATE APLATE A
-
14F1B-U1653-01-00 PACKINGPACKING
-
15F1B-U8952-01-00 BEAM, DECK 1BEAM, DECK 1
-
16GU2-6378D-02-00 STAY, SEAT 2STAY, SEAT 2
-
179299R-08200-00 WASHERWASHER
-
189572R-06300-00 NUT, NYLONNUT, NYLON
-
1990101-069U0-00 BOLTBOLT
-
20F0X-6378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
2190201-099U3-00 WASHER, PLATEWASHER, PLATE
-
229572R-08300-00 NUT, FLANGENUT, FLANGE
-
23F1B-U3774-00-00 PINPIN
-
24F0X-6375E-00-00 PACKING 1PACKING 1
-
2592990-12200-00 WASHER, PLAINWASHER, PLAIN
-
269572R-10300-00 NUT, FLANGENUT, FLANGE
-
27F1B-U2624-00-00 BOLTBOLT
-
289572R-08300-00 NUT, FLANGENUT, FLANGE
-
299299R-10200-00 WASHERWASHER
-
30F1B-U271B-00-00 GRIP, HAND (BLACK)GRIP, HAND (BLACK)
-
30F1S-U271B-01-00 GRIP, HAND (BLACK)GRIP, HAND (BLACK)
-
3190119-08942-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
329572R-08300-00 NUT, FLANGENUT, FLANGE
-
339299R-08200-00 WASHERWASHER
-
34F1B-U4742-01-00 LOCKER, UNDER 2LOCKER, UNDER 2
-
35F0X-U266E-01-00 PACKING, 6PACKING, 6
-
36F0X-U5983-01-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
37EW2-U5912-01-00 CAP, CASECAP, CASE
-
38EW2-U5913-01-00 PACKING, CASEPACKING, CASE
-
3990267-489UP-00 RIVET, BLINDRIVET, BLIND
-
409572R-08300-00 NUT, FLANGENUT, FLANGE
-
41GP7-U4953-10-00 PLATE APLATE A
-
42GP7-U4953-10-00 PLATE APLATE A
-
43F1B-U1629-00-00 SKI TOWSSKI TOWS
-
44GH1-U3774-00-00 PINPIN
-
4590201-109U6-00 WASHER, PLATEWASHER, PLATE
-
469299R-10200-00 WASHERWASHER
-
479572R-10300-00 NUT, FLANGENUT, FLANGE
