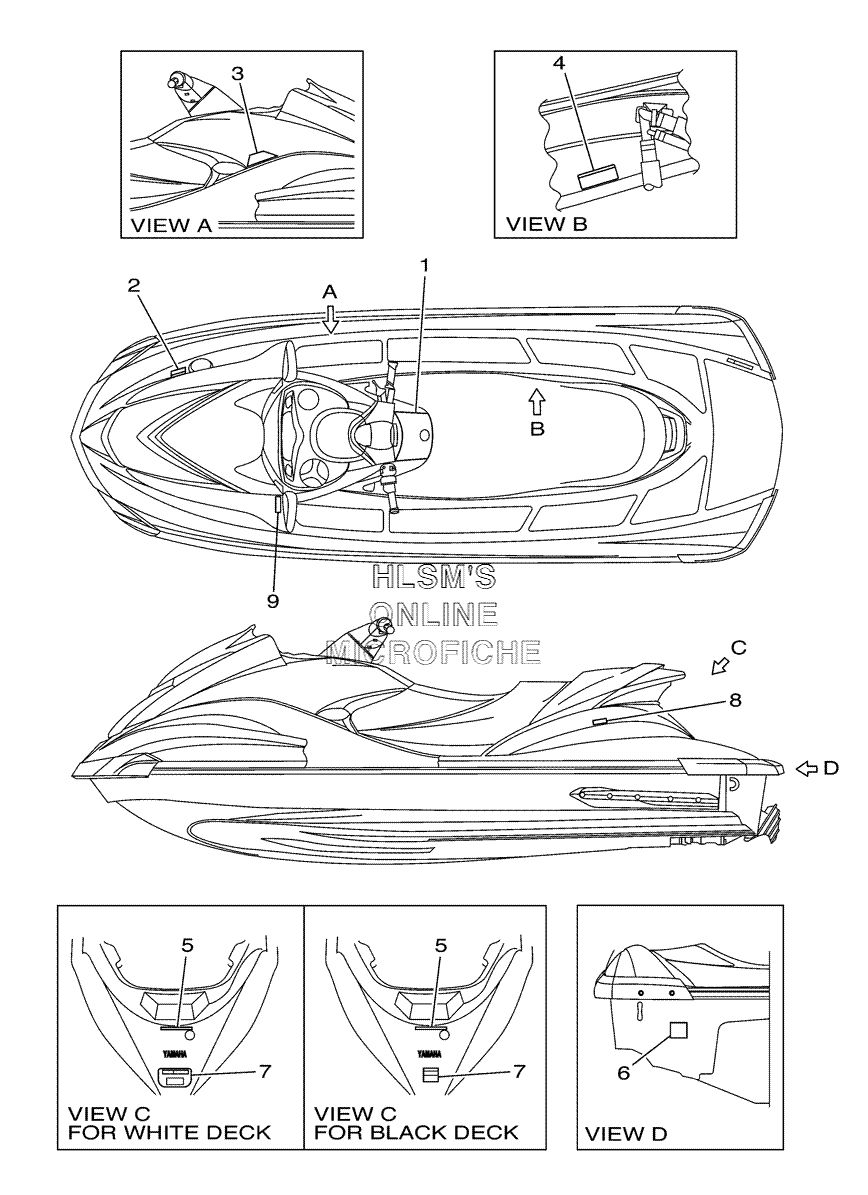

GRAPHICS - WARNING / CAUTION для Yamaha FX HO 3-PERSON - 2006 года выпуска
-
№АртикулНазвание
-
1F1X-U41B1-00-00 LABEL, WARNING JDC 1LABEL, WARNING JDC 1
-
2F1B-U415B-02-00 LABEL, WARNING (FUEL) FOR WIHTE DECKLABEL, WARNING (FUEL) FOR WIHTE DECK
-
2F1S-U415B-01-00 LABEL, WARNING (FUEL) (BLACK) FOR BLACK DECKLABEL, WARNING (FUEL) (BLACK) FOR BLACK DECK
-
3F0V-U41D5-21-00 LABEL, WARNING SHIFT LEVERLABEL, WARNING SHIFT LEVER
-
4F0V-U41DB-02-00 LABEL, WARNING BATTERYLABEL, WARNING BATTERY
-
5F0V-U41F5-01-00 LABEL, FIRE EXTINGUISHER 1 FOR BLACK DECKLABEL, FIRE EXTINGUISHER 1 FOR BLACK DECK
-
5F1B-U41F5-01-00 LABEL, FIRE EXTINGUISHER 1 FOR WIHTE DECKLABEL, FIRE EXTINGUISHER 1 FOR WIHTE DECK
-
6F1G-U418F-00-00 LABEL, RIGHTINGLABEL, RIGHTING
-
7F1B-U41E1-21-00 LABEL, SET 1 FOR WIHTE DECKLABEL, SET 1 FOR WIHTE DECK
-
7F1S-U41E1-01-00 LABEL, SET 1 FOR BLACK DECKLABEL, SET 1 FOR BLACK DECK
-
8F1S-U41G1-01-00 LABEL, CAPACITY FOR BLACK DECKLABEL, CAPACITY FOR BLACK DECK
-
8F0P-U41G1-01-00 LABEL, CAPACITY FOR WIHTE DECKLABEL, CAPACITY FOR WIHTE DECK
-
9F0X-U41FD-01-00 LABEL, VISORLABEL, VISOR
