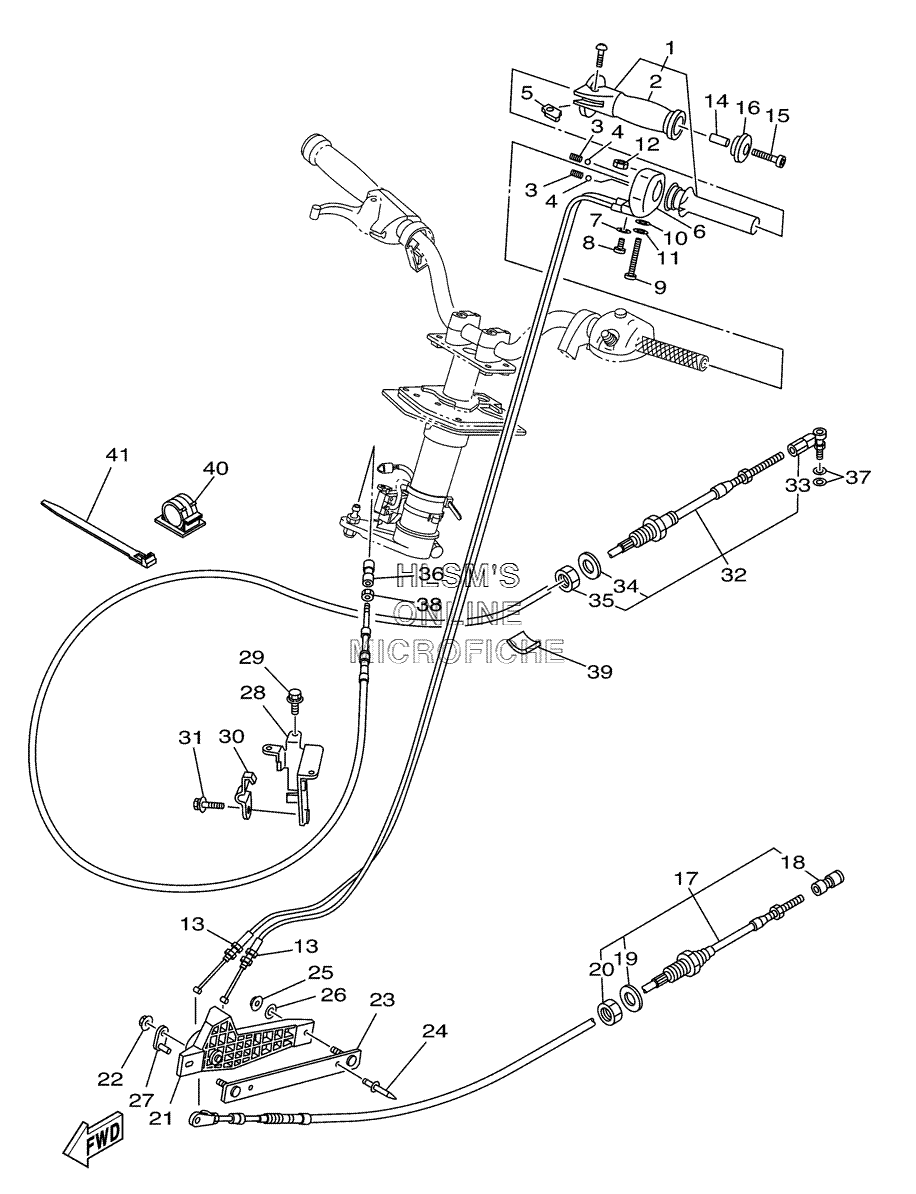

CONTROL CABLES для Yamaha GP1300R 2-PERSON - 2006 года выпуска
-
№АртикулНазвание
-
1GP7-U157A-00-00 GRIP HANDLE ASSY.GRIP HANDLE ASSY.
-
2GP7-U155C-00-00 ..GRIP, HANDLE..GRIP, HANDLE
-
3GP7-U152P-00-00 SPRINGSPRING
-
4GP7-U152R-00-00 BALLBALL
-
5GP7-U151M-00-00 LEVER ASSYLEVER ASSY
-
6GP7-U152M-00-00 HOUSING ASSYHOUSING ASSY
-
792990-04600-00 WASHER, PLATEWASHER, PLATE
-
898980-04010-00 SCREW, BINDSCREW, BIND
-
997880-06065-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1092990-06600-00 WASHER, PLATEWASHER, PLATE
-
119299R-06100-00 WASHERWASHER
-
12GH1-U143B-00-00 NUT,SPECIALNUT,SPECIAL
-
13F0D-U153D-01-00 CABLE, NOZZLE CONTROL 2CABLE, NOZZLE CONTROL 2
-
1490387-05800-00 COLLARCOLLAR
-
1590110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
16GP7-U155F-00-00 GRIP, ENDGRIP, END
-
17F1G-6153E-02-00 CABLE, NOZZLE CONTROL 3CABLE, NOZZLE CONTROL 3
-
18F1B-61460-00-00 ...BALL JOINT ASSY...BALL JOINT ASSY
-
19F1B-61438-00-00 ...PACKING...PACKING
-
20F1B-6151S-00-00 ...NUT...NUT
-
21F0D-U153J-10-00 REMOCON, NOZZLE 2REMOCON, NOZZLE 2
-
229572R-06300-00 NUT, NYLONNUT, NYLON
-
23F0X-U4958-00-00 BASE, REMOCON.BASE, REMOCON.
-
2490267-489U6-00 RIVET, BLINDRIVET, BLIND
-
259572R-06300-00 NUT, NYLONNUT, NYLON
-
269299R-06200-00 WASHERWASHER
-
27F0D-U152C-10-00 PINPIN
-
28F0X-61467-00-00 BRACKET, STOPPER CABLEBRACKET, STOPPER CABLE
-
2990119-06827-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
30F0X-61468-00-00 STOPPER, CABLESTOPPER, CABLE
-
3190119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
32F1G-61481-02-00 CABLE, STEERINGCABLE, STEERING
-
33F1B-61461-01-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
34F1B-61438-00-00 ...PACKING...PACKING
-
35F1B-6151S-00-00 ...NUT...NUT
-
36GK5-U146F-00-00 SHAFT, JOINT BALLSHAFT, JOINT BALL
-
3790201-06906-00 WASHER, PLATEWASHER, PLATE
-
389538R-06700-00 NUTNUT
-
39GJ1-U7578-01-00 PACKING, HOSE 2PACKING, HOSE 2
-
4090600-925U9-00 CLAMPCLAMP
-
4190601-200U2-00 BANDBAND
