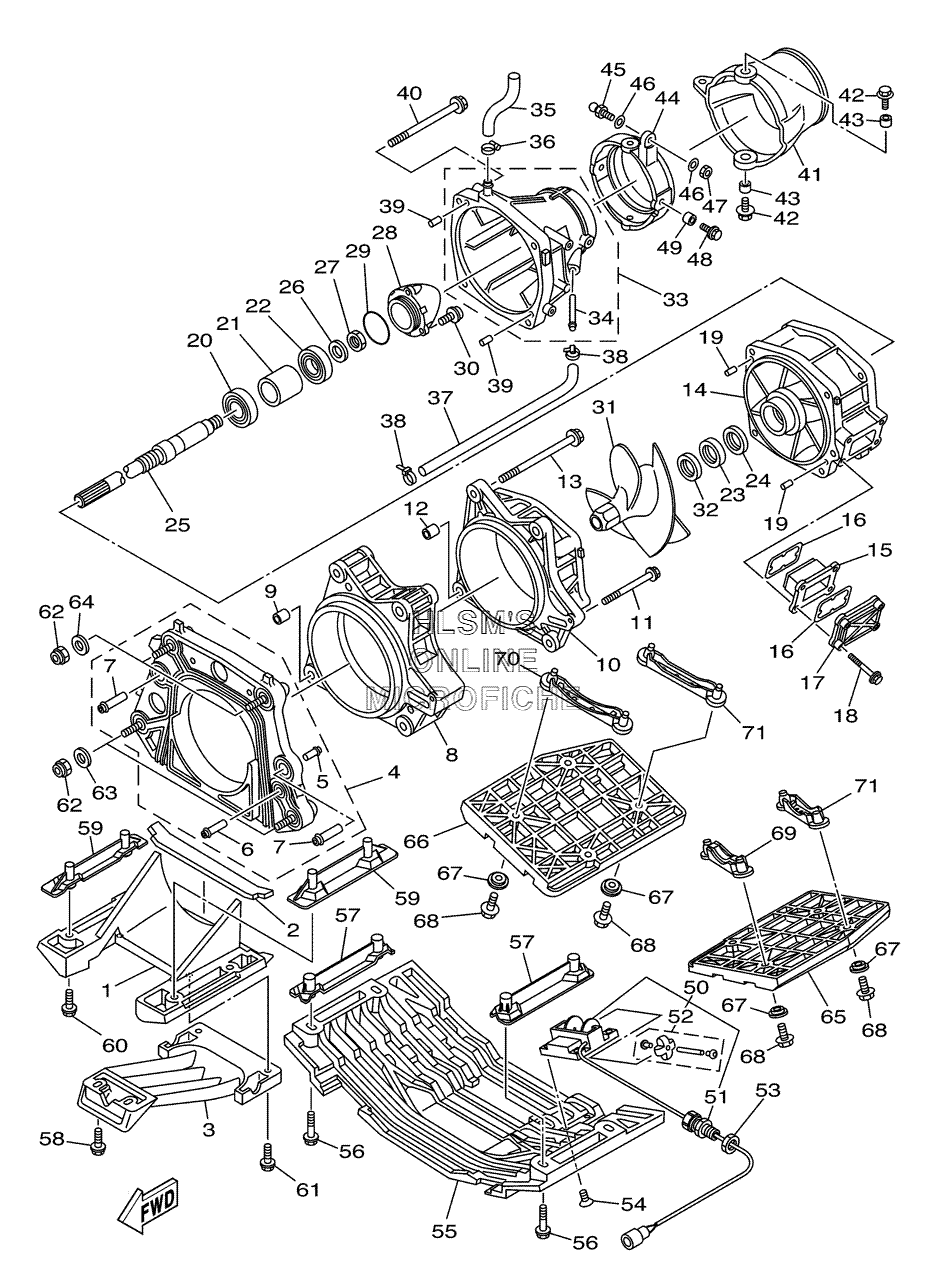

PROPULSION SYSTEM - EXTERNAL для Yamaha GP1300R 2-PERSON - 2006 года выпуска
-
№АртикулНазвание
-
167X-51311-00-94 DUCT, INTAKEDUCT, INTAKE
-
267X-R1367-00-00 FELT, PACKINGFELT, PACKING
-
367X-51333-00-94 SCREEN, INTAKESCREEN, INTAKE
-
460T-G5831-00-00 PLATE, TRANSOMPLATE, TRANSOM
-
565A-R1129-00-00 ...NIPPLE...NIPPLE
-
666V-51129-01-00 ...NIPPLE...NIPPLE
-
766V-51129-10-00 ...NIPPLE...NIPPLE
-
860E-51317-00-94 HOUSING, IMPELLER 2HOUSING, IMPELLER 2
-
999590-14016-00 PIN, DOWELPIN, DOWEL
-
1066V-51312-01-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
1190119-06859-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1299590-14016-00 PIN, DOWELPIN, DOWEL
-
1390119-10803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
146B6-51315-01-94 DUCT, IMPELLERDUCT, IMPELLER
-
1566V-46882-00-00 FILTERFILTER
-
1666V-42414-00-00 O-RINGO-RING
-
1766V-45214-00-94 COVER, WATER INLET 1COVER, WATER INLET 1
-
1890119-06800-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1993606-12019-00 PIN, DOWELPIN, DOWEL
-
2093306-205U0-00 BEARINGBEARING
-
2165V-45538-00-00 SPACER 1SPACER 1
-
2293306-304U1-00 BEARINGBEARING
-
2393101-28M66-00 OIL SEALOIL SEAL
-
2493101-28002-00 OIL SEALOIL SEAL
-
2566V-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
269299R-16600-00 WASHERWASHER
-
279531P-16700-00 NUTNUT
-
286B6-51326-10-00 CAPCAP
-
2993210-464A3-00 O-RINGO-RING
-
3090110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3160T-R1321-10-00 IMPELLERIMPELLER
-
3266V-R1348-10-00 SPACERSPACER
-
3360T-51318-00-94 NOZZLENOZZLE
-
3463M-51334-00-00 ......NIPPLE, HOSE......NIPPLE, HOSE
-
3560T-51673-00-00 PIPE 1PIPE 1
-
3690601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
3790445-14804-00 HOSE (L330)HOSE (L330)
-
3890465-11829-00 CLAMPCLAMP
-
3993606-12019-00 PIN, DOWELPIN, DOWEL
-
4090119-10837-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4166V-R1313-01-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
4290119-089UE-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4390387-08M06-00 COLLARCOLLAR
-
4460T-51190-00-94 RING, TRIMRING, TRIM
-
45GH3-U146E-00-00 STUD, JOINT BALLSTUD, JOINT BALL
-
4690201-068M4-00 WASHER, PLATEWASHER, PLATE
-
479538R-06700-00 NUTNUT
-
4890119-089UE-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4990387-08M06-00 COLLARCOLLAR
-
50GJ1-U8K31-03-00 SENSOR SPEEDSENSOR SPEED
-
51F0V-U7267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
52GJ1-U835D-00-00 ...SERVICE KIT (SPEED SENSOR)...SERVICE KIT (SPEED SENSOR)
-
53EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
549878R-05512-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
55F1G-U273B-00-00 PLATE 2PLATE 2
-
5690119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
57F1G-U8572-00-00 BRACKET 2BRACKET 2
-
5890119-069UK-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
59F1G-U8571-00-00 BRACKET 1BRACKET 1
-
6090119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6190119-069UB-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
629572R-10300-00 NUT, FLANGENUT, FLANGE
-
6390201-10801-00 WASHER, PLATEWASHER, PLATE
-
64F1S-U725E-00-00 WASHERWASHER
-
65F1G-U884R-01-00 PLATE, STEP 1PLATE, STEP 1
-
66F1G-U884S-01-00 PLATE, STEP 2PLATE, STEP 2
-
6790387-07803-00 COLLARCOLLAR
-
6890119-069UD-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
69F1G-6880A-00-00 BED, WATER LOCK COMP. 1BED, WATER LOCK COMP. 1
-
70F0X-6885R-00-00 PLATE, STEP 1PLATE, STEP 1
-
71F0X-6885S-00-00 PLATE, STEP 2PLATE, STEP 2
