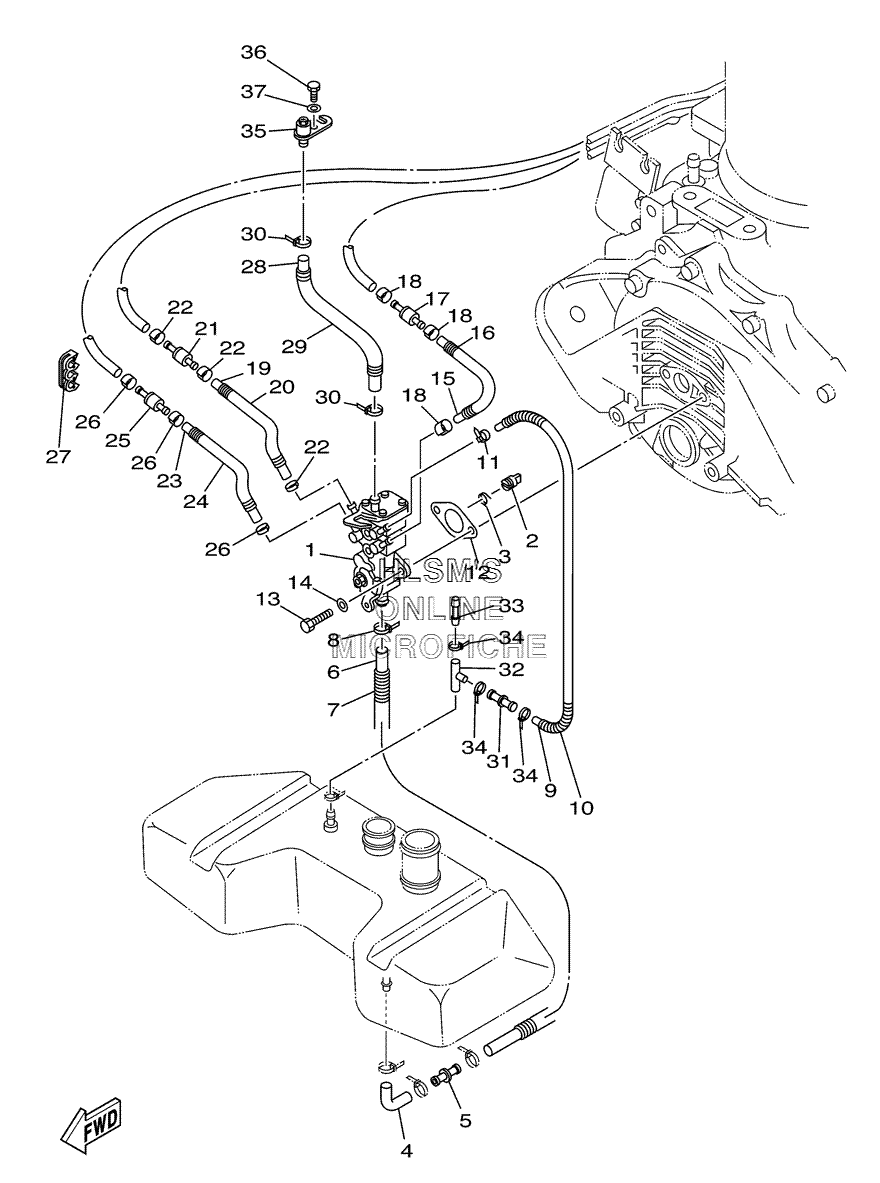

OIL PUMP для Yamaha GP1300R 2-PERSON - 2006 года выпуска
-
№АртикулНазвание
-
160T-13200-00-00 OIL INJECTION PUMP ASSYOIL INJECTION PUMP ASSY
-
265U-13132-00-00 JOINTJOINT
-
366E-13469-00-00 SPRINGSPRING
-
490445-14M00-00 HOSE (L118)HOSE (L118)
-
566V-51142-00-00 CONNECTIONCONNECTION
-
690445-11M33-00 HOSE (L440)HOSE (L440)
-
790446-17ME2-00 HOSE (L350)HOSE (L350)
-
890465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
990445-07M10-00 HOSE (L510)HOSE (L510)
-
1090447-07001-00 HOSE, WITH SPRING (L400)HOSE, WITH SPRING (L400)
-
1190468-02001-00 CLIPCLIP
-
1263M-13116-00-00 GASKET, PUMP CASEGASKET, PUMP CASE
-
1397095-06020-00 BOLT, W/WASHERBOLT, W/WASHER
-
1492995-06600-00 WASHERWASHER
-
1590445-07007-00 HOSE (L110)HOSE (L110)
-
1690446-10M82-00 HOSE (L90)HOSE (L90)
-
1767X-13183-00-00 VALVE, CHECKVALVE, CHECK
-
1890468-02001-00 CLIPCLIP
-
1990445-07007-00 HOSE (L110)HOSE (L110)
-
2090446-10M82-00 HOSE (L90)HOSE (L90)
-
2167X-13183-00-00 VALVE, CHECKVALVE, CHECK
-
2290468-02001-00 CLIPCLIP
-
2390445-07007-00 HOSE (L110)HOSE (L110)
-
2490446-10M82-00 HOSE (L90)HOSE (L90)
-
2567X-13183-00-00 VALVE, CHECKVALVE, CHECK
-
2690468-02001-00 CLIPCLIP
-
2790464-07M05-00 CLAMPCLAMP
-
2866V-24314-00-00 PIPE 4PIPE 4
-
2990446-17ME8-00 HOSE (L120)HOSE (L120)
-
3090465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
3163M-13132-00-00 JOINTJOINT
-
3263M-24378-00-00 PIPE, JOINT 4PIPE, JOINT 4
-
336G8-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
3490465-11829-00 CLAMPCLAMP
-
3566V-13185-00-00 BOLT, BREATHERBOLT, BREATHER
-
3697095-06012-00 BOLTBOLT
-
3792995-06600-00 WASHERWASHER
