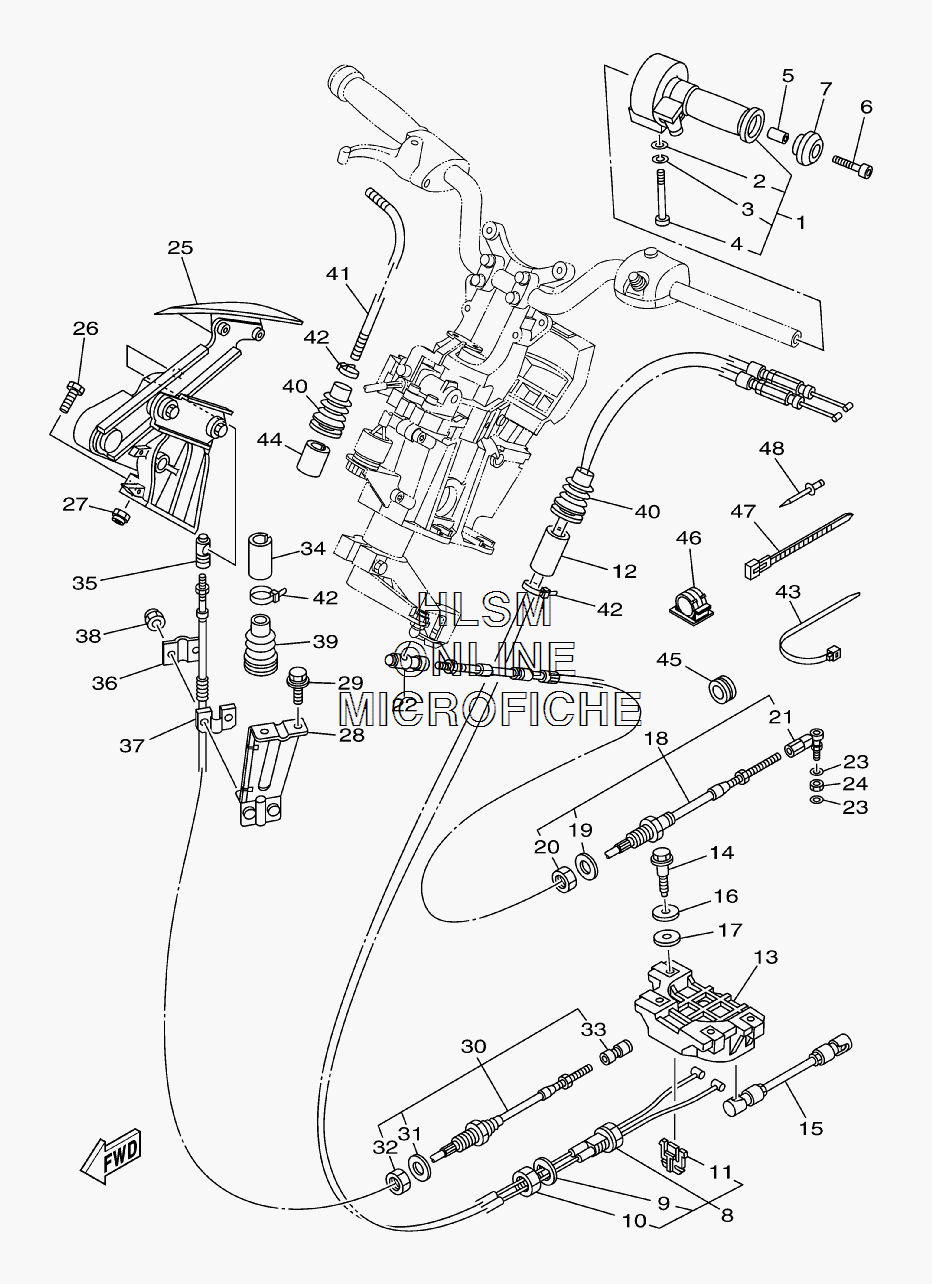

CONTROL CABLES для Yamaha FX CRUISER HO 3-PASS - 2008 года выпуска
-
№АртикулНазвание
-
1F1W-6153A-00-00 NOZZLE, CONTROL ASSYNOZZLE, CONTROL ASSY
-
292990-06200-00 ...WASHER, PLAIN...WASHER, PLAIN
-
392990-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
4F1W-613C1-00-00 ...SCREW...SCREW
-
590387-05800-00 COLLARCOLLAR
-
690110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7F1S-U155F-00-00 GRIP, ENDGRIP, END
-
8F1W-6153E-00-00 CABLE, NOZZLE CONTROL 3CABLE, NOZZLE CONTROL 3
-
9F1W-61438-00-00 ...PACKING...PACKING
-
10F1B-6151S-00-00 ...NUT...NUT
-
11F1W-61557-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
12GJ1-U7578-01-00 PACKING, HOSE 2PACKING, HOSE 2
-
13F1W-6153J-00-00 REMOCON, NOZZLE 2REMOCON, NOZZLE 2
-
1490109-06233-00 BOLTBOLT
-
15F1W-6150A-00-00 ROD ASSYROD ASSY
-
1690201-099U3-00 WASHER, PLATEWASHER, PLATE
-
1790202-08002-00 WASHER, PLATEWASHER, PLATE
-
18F1S-61481-00-00 CABLE, STEERINGCABLE, STEERING
-
19F1B-61438-00-00 ...PACKING...PACKING
-
20F1B-6151S-00-00 ...NUT...NUT
-
21F1B-61461-02-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
22GK5-U146F-00-00 SHAFT, JOINT BALLSHAFT, JOINT BALL
-
2390201-06906-00 WASHER, PLATEWASHER, PLATE
-
249538R-06700-00 NUTNUT
-
25F1X-6134A-10-00 REMOCON. LEVER ASSY.REMOCON. LEVER ASSY.
-
2697080-06030-00 BOLTBOLT
-
2790185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
28F1X-61467-01-00 BRACKET, STOPPER CABLEBRACKET, STOPPER CABLE
-
2990119-08826-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
30F1W-6149C-00-00 CABLE, REVERSECABLE, REVERSE
-
31F1B-61438-00-00 ...PACKING...PACKING
-
32F1B-6151S-00-00 ...NUT...NUT
-
33F1B-61460-00-00 ...BALL JOINT ASSY...BALL JOINT ASSY
-
34GJ1-U7578-01-00 PACKING, HOSE 2PACKING, HOSE 2
-
35F1B-61460-00-00 BALL JOINT ASSYBALL JOINT ASSY
-
36GH1-61468-01-00 STOPPER, CABLESTOPPER, CABLE
-
37GU5-6146K-10-00 HOLDER, STOPPERHOLDER, STOPPER
-
389572R-06300-00 NUT, NYLONNUT, NYLON
-
39F0D-6822E-00-00 GROMMETGROMMET
-
40F0D-6822E-00-00 GROMMETGROMMET
-
41F0D-6773E-00-00 TUBE, 2TUBE, 2
-
4290601-200U1-00 BAND HOSE 50BAND HOSE 50
-
4390464-32801-00 CLAMPCLAMP
-
44GJ1-U7578-11-00 PACKING, HOSE 2PACKING, HOSE 2
-
4590480-38800-00 GROMMETGROMMET
-
4690600-917U4-00 CLAMP COMP.CLAMP COMP.
-
4790464-32801-00 CLAMPCLAMP
-
4890267-48802-00 RIVET, BLINDRIVET, BLIND
