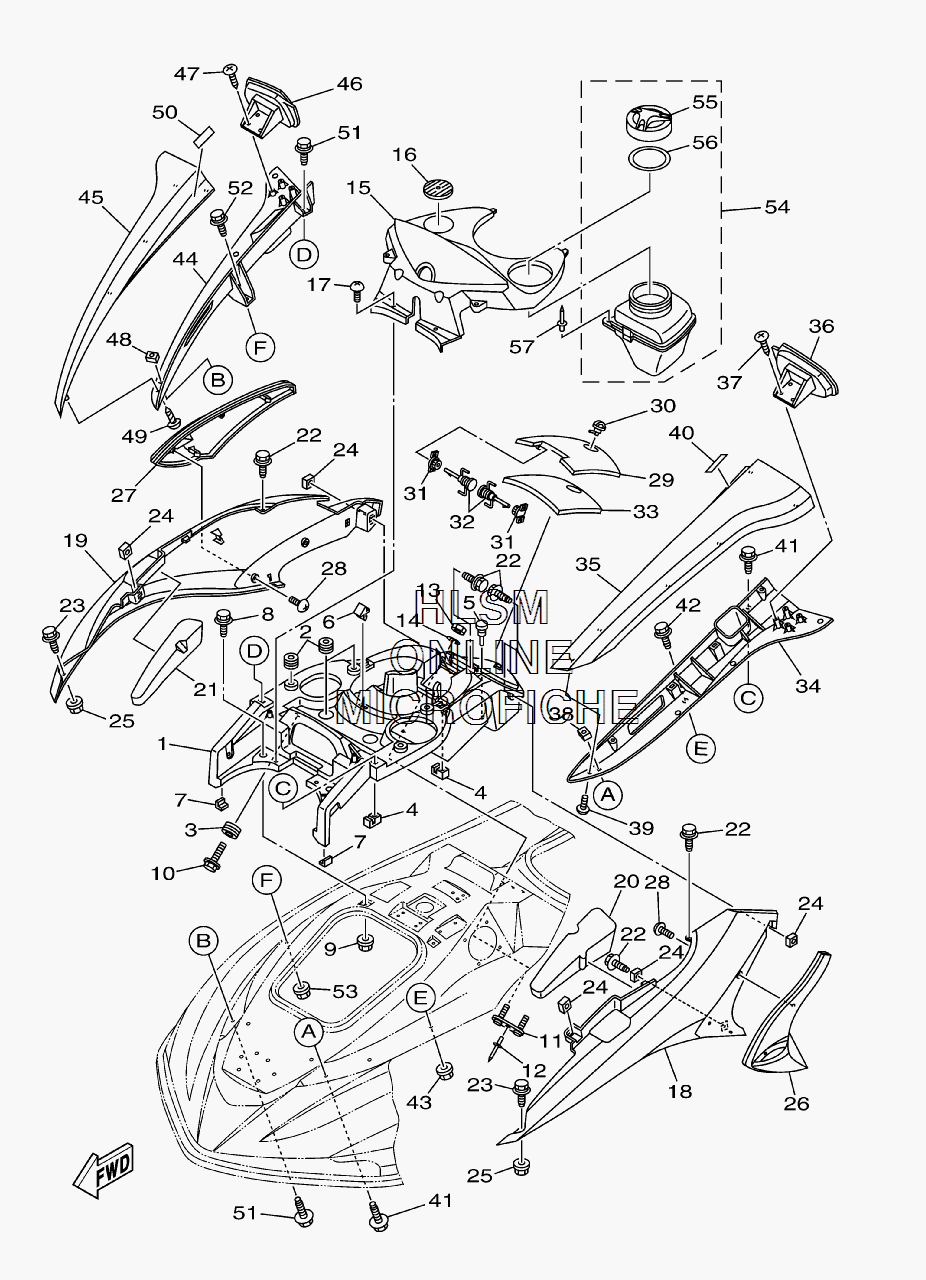

SIDE COVERS для Yamaha FX CRUISER HO 3-PASS - 2008 года выпуска
-
№АртикулНазвание
-
1F1X-U550A-00-00 CENTER COVER COMP.CENTER COVER COMP.
-
2F1X-U828E-01-00 DAMPER 1DAMPER 1
-
390480-19800-00 GROMMETGROMMET
-
4F1X-U517E-01-00 NUTNUT
-
590605-502U2-00 PLUGPLUG
-
6F1K-U266C-00-00 PACKING 4PACKING 4
-
7F1B-U5115-00-00 TRIM, HATCH 1TRIM, HATCH 1
-
890119-06872-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090119-05803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
11F1X-U5372-00-00 BRACKETBRACKET
-
1290267-489U1-00 RIVET,BLINDRIVET,BLIND
-
139572R-06300-00 NUT, NYLONNUT, NYLON
-
149299R-06200-00 WASHERWASHER
-
15F1X-U8262-10-P0 COVER METER (CARBON)COVER METER (CARBON)
-
16F1X-U3844-01-00 MATMAT
-
1790149-05903-00 SCREWSCREW
-
18F1X-U377B-10-P0 COVER,SIDE 1 (LIGHT GRAY)COVER,SIDE 1 (LIGHT GRAY)
-
19F1X-U377C-10-P0 COVER,SIDE 2 (LIGHT GRAY)COVER,SIDE 2 (LIGHT GRAY)
-
20F1X-U377H-01-00 INNER, COVER SIDE 1INNER, COVER SIDE 1
-
21F1X-U377J-01-00 INNER, COVER SIDE 2INNER, COVER SIDE 2
-
2290119-06872-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2390119-06872-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
24F1X-U517E-01-00 NUTNUT
-
2590185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
26F1X-U377F-00-00 ORNAMENT, SIDE LHORNAMENT, SIDE LH
-
27F1X-U377G-00-00 ORNAMENT, SIDE RHORNAMENT, SIDE RH
-
2890149-05903-00 SCREWSCREW
-
29F1X-U517H-00-00 LID HATCHLID HATCH
-
30F1X-62875-00-00 LOCKLOCK
-
31F1B-60210-00-00 GEAR ASSYGEAR ASSY
-
32F1B-6517R-00-00 PIN, HINGEPIN, HINGE
-
33F1X-U519D-01-00 PACKING CASEPACKING CASE
-
34F1X-U596K-20-P0 COVER, MIRROR LOWER (LIGHT GRAY)COVER, MIRROR LOWER (LIGHT GRAY)
-
35F1X-U596H-20-P0 COVER, MIRROR UPPER (LIGHT GRAY)COVER, MIRROR UPPER (LIGHT GRAY)
-
36F1X-U596B-10-00 MIRROR LH (GRAY)MIRROR LH (GRAY)
-
3790149-05903-00 SCREWSCREW
-
38F1X-U517E-01-00 NUTNUT
-
3990149-05903-00 SCREWSCREW
-
40F1K-U266B-00-00 PACKING 3PACKING 3
-
4190119-06872-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4290119-06872-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4390185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
44F1X-U596L-20-P0 COVER, MIRROR LOWER (LIGHT GRAY)COVER, MIRROR LOWER (LIGHT GRAY)
-
45F1X-U596J-20-P0 COVER, MIRROR UPPER (LIGHT GRAY)COVER, MIRROR UPPER (LIGHT GRAY)
-
46F1X-U596C-10-00 MIRROR RHMIRROR RH
-
4790149-05903-00 SCREWSCREW
-
48F1X-U517E-01-00 NUTNUT
-
4990149-05903-00 SCREWSCREW
-
50F1K-U266B-00-00 PACKING 3PACKING 3
-
5190119-06872-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5290119-06872-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5390185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
54F1X-U591A-02-00 CASE, ASSY 1CASE, ASSY 1
-
55F1X-U591C-01-00 ...CAP, CASE...CAP, CASE
-
56F1X-U591D-02-00 ...PACKING,CASE...PACKING,CASE
-
5790267-489UP-00 RIVET, BLINDRIVET, BLIND
