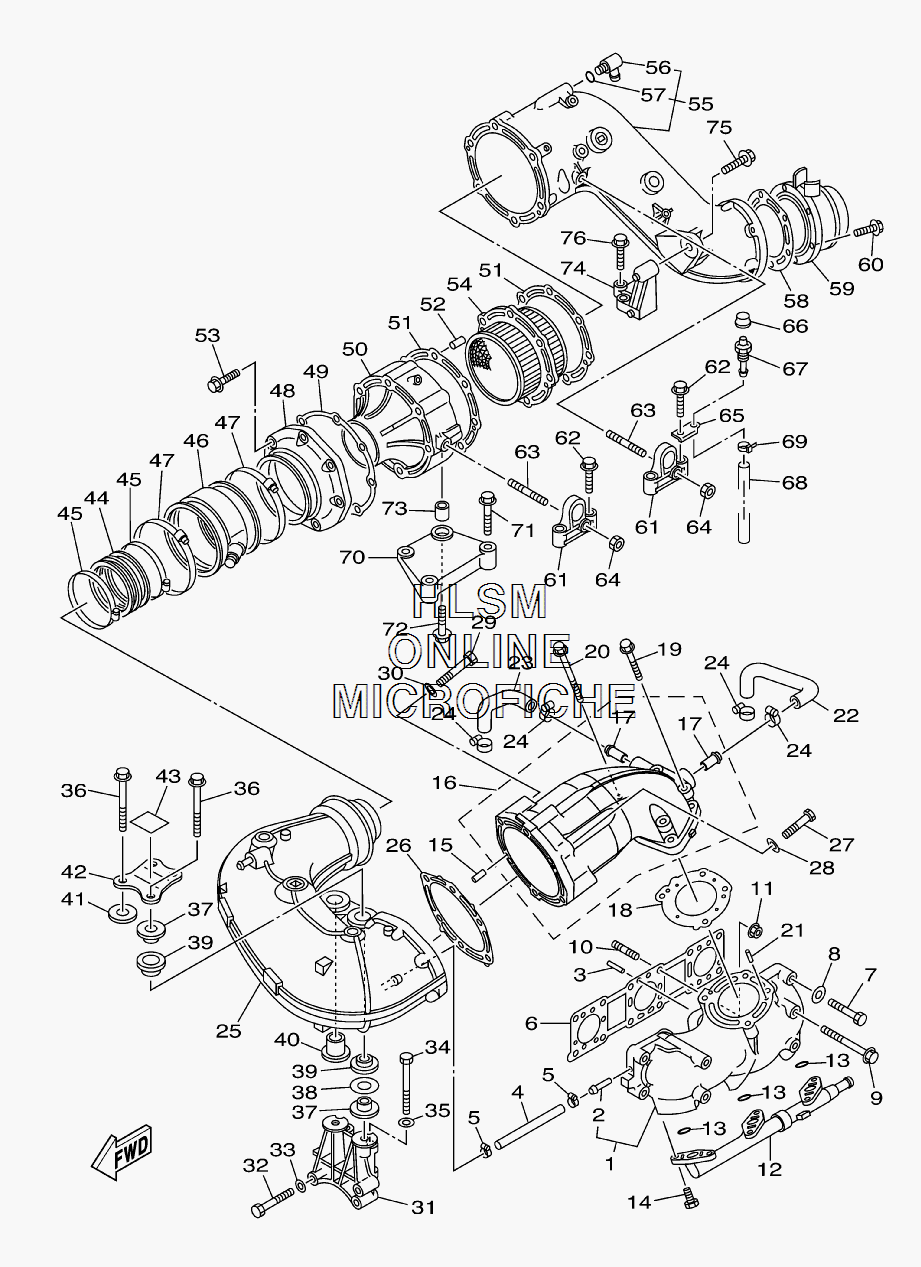

EXHAUST SYSTEM для Yamaha GP1300R - 2008 года выпуска
-
№АртикулНазвание
-
166V-14711-00-94 MUFFLER 1MUFFLER 1
-
265U-14251-00-00 ...NIPPLE...NIPPLE
-
393606-12019-00 PIN, DOWELPIN, DOWEL
-
490445-12M10-00 HOSE (L125)HOSE (L125)
-
590460-11M17-00 CLAMP, HOSECLAMP, HOSE
-
666V-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
797013-10055-00 BOLTBOLT
-
892903-10600-00 WASHER, PLATEWASHER, PLATE
-
990119-10M11-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090116-10M68-00 BOLT, STUDBOLT, STUD
-
1190179-10M36-00 NUTNUT
-
1266V-24377-00-00 PIPE, JOINT 2PIPE, JOINT 2
-
1393210-17MA4-00 O-RINGO-RING
-
1490109-06M99-00 BOLTBOLT
-
1593606-12019-00 PIN, DOWELPIN, DOWEL
-
1660T-14712-10-94 RING, JOINTRING, JOINT
-
1766E-51129-00-00 ...NIPPLE...NIPPLE
-
1866V-14739-01-00 GASKET, MUFFLER DAMPER 1GASKET, MUFFLER DAMPER 1
-
1990119-10M20-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090119-10M19-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2193606-12019-00 PIN, DOWELPIN, DOWEL
-
2260T-12576-00-00 HOSE 1HOSE 1
-
2360T-12577-00-00 HOSE 2HOSE 2
-
2490450-22M14-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2566V-14721-A0-94 MUFFLER 2MUFFLER 2
-
2666V-14749-01-00 GASKET, MUFFLER DAMPER 2GASKET, MUFFLER DAMPER 2
-
2797013-10065-00 BOLTBOLT
-
2892903-10600-00 WASHER, PLATEWASHER, PLATE
-
2997013-10085-00 BOLT W/WASHERBOLT W/WASHER
-
3092903-10600-00 WASHER, PLATEWASHER, PLATE
-
3166V-14771-01-94 STAY, MUFFLER 1STAY, MUFFLER 1
-
3297013-10060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3392903-10600-00 WASHER, PLATEWASHER, PLATE
-
3497013-10090-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3592903-10600-00 WASHER, PLATEWASHER, PLATE
-
3690119-10M23-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3790387-12M05-00 COLLARCOLLAR
-
3890201-28008-00 WASHER, PLATEWASHER, PLATE
-
3990480-30M78-00 GROMMETGROMMET
-
4066V-14779-00-00 COLLARCOLLAR
-
4166V-1477L-00-00 PLATE 2PLATE 2
-
4266V-11152-00-00 BRACKET, CYLINDER HEAD COVERBRACKET, CYLINDER HEAD COVER
-
4366V-14488-00-00 LABEL, CAUTIONLABEL, CAUTION
-
4466V-14625-00-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
4590450-99009-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4666V-14615-02-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
4790460-99M20-00 CLAMP, HOSECLAMP, HOSE
-
4868N-41113-00-94 OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
4966V-41114-01-00 GASKET, EXHAUST OUTER COVERGASKET, EXHAUST OUTER COVER
-
5068N-41111-00-94 INNER COVER, EXHAUSTINNER COVER, EXHAUST
-
5166V-41124-01-00 GASKET, EXHAUST OUTER COVERGASKET, EXHAUST OUTER COVER
-
5293606-14081-00 PIN, DOWELPIN, DOWEL
-
5390119-08M63-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5460T-14740-01-00 CATALYST ASSY.CATALYST ASSY.
-
5568N-41123-00-94 OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
5667X-12481-00-00 ...PIPE 1...PIPE 1
-
5793210-17001-00 ...O-RING...O-RING
-
5868N-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
5968N-14784-00-94 PIPE, TAILPIPE, TAIL
-
6090105-08M22-00 BOLT, FLANGEBOLT, FLANGE
-
6166E-14771-01-94 STAY, MUFFLER 1STAY, MUFFLER 1
-
6290119-10M18-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6390116-10M66-00 BOLT, STUDBOLT, STUD
-
6490179-10M35-00 NUTNUT
-
6566V-1477K-00-00 PLATE 1PLATE 1
-
66663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
6761L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
-
6890445-09M33-00 HOSE (L580)HOSE (L580)
-
6990465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
7066V-14782-00-94 STAY 5STAY 5
-
7190105-10M87-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
7297513-10545-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
7399590-14016-00 PIN, DOWELPIN, DOWEL
-
7468N-14791-00-94 STAY, MUFFLERSTAY, MUFFLER
-
7590119-10M00-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
7690119-10M13-00 BOLT, WITH WASHERBOLT, WITH WASHER
