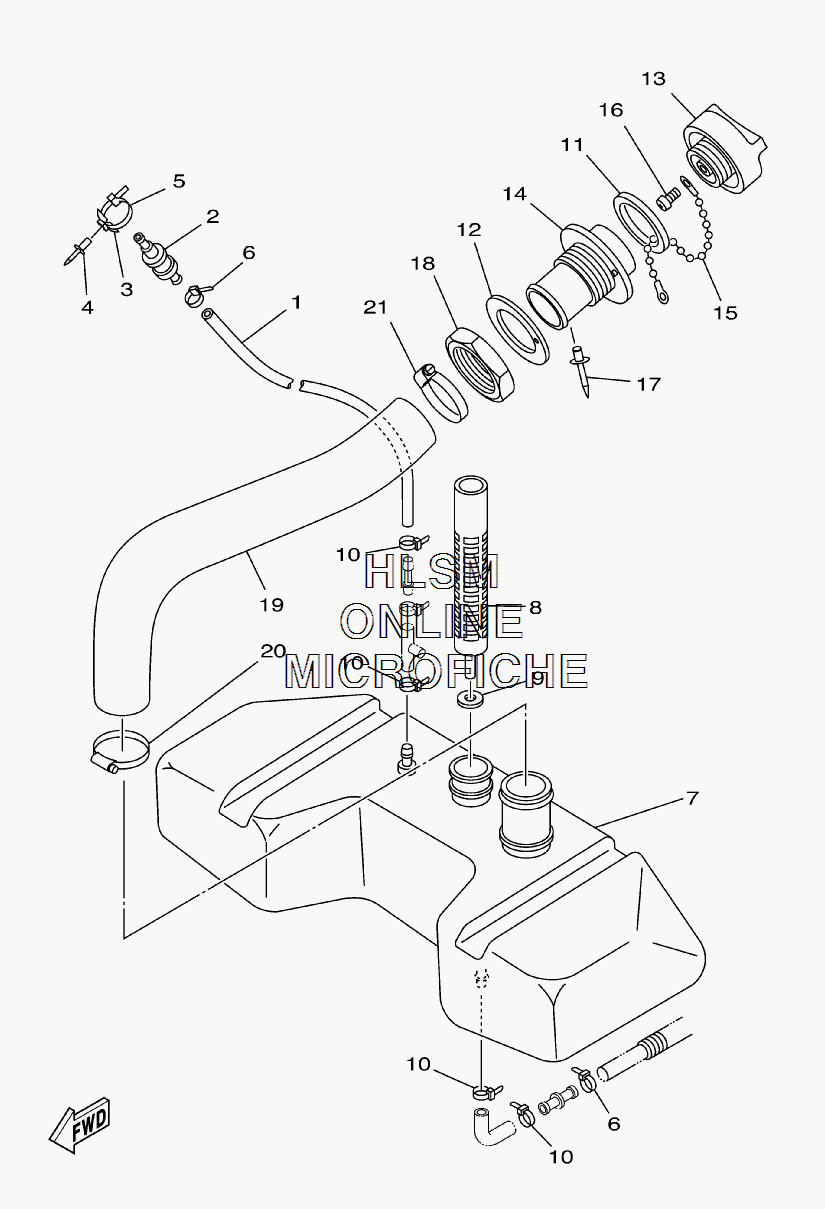

OIL TANK для Yamaha GP1300R - 2008 года выпуска
-
№АртикулНазвание
-
1F0X-U7856-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
2FJ0-67766-00-00 ROLL OVER VALVEROLL OVER VALVE
-
390600-917U4-00 CLAMP COMP.CLAMP COMP.
-
490267-489U6-00 RIVET, BLINDRIVET, BLIND
-
590464-32801-00 CLAMPCLAMP
-
690465-11829-00 CLAMPCLAMP
-
7F0D-U775B-02-00 TANK, OILTANK, OIL
-
8F0D-6775C-01-00 FILTERFILTER
-
9F0D-6775E-01-00 PACKINGPACKING
-
1090465-11829-00 CLAMPCLAMP
-
11GJ3-U778C-00-00 PACKING, OIL CAPPACKING, OIL CAP
-
12F0X-U778E-01-00 PACKING, OIL FILLERPACKING, OIL FILLER
-
13F0X-U778B-00-00 CAP, OIL FILLERCAP, OIL FILLER
-
14F0X-U778D-00-00 SOCKET, OIL FILLERSOCKET, OIL FILLER
-
15EU0-U7835-00-00 CHAIN BALLCHAIN BALL
-
1697780-04110-00 SCREW, TAPPINGSCREW, TAPPING
-
1790267-40935-00 RIVET, BLINDRIVET, BLIND
-
18F0X-U778H-01-00 NUT, OIL FILLERNUT, OIL FILLER
-
19F0X-U776C-10-00 HOSE, OIL FILLERHOSE, OIL FILLER
-
2090601-152U3-00 BAND, HOSE 52BAND, HOSE 52
-
2190464-99803-00 CLAMPCLAMP
