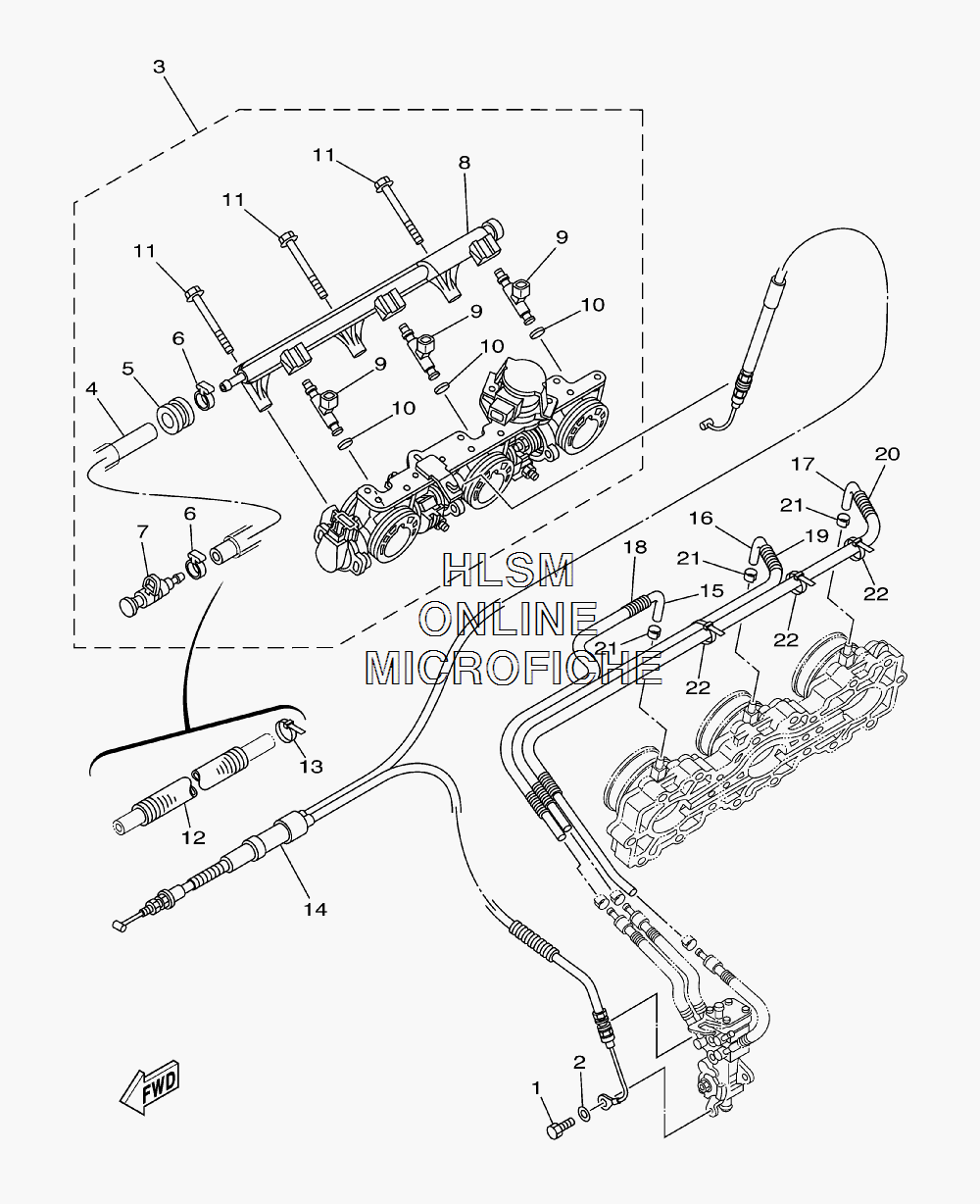

THROTTLE BODY ASSY. для Yamaha GP1300R - 2008 года выпуска
-
№АртикулНазвание
-
197095-05010-00 BOLTBOLT
-
292995-05600-00 WASHERWASHER
-
360T-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
460T-14294-00-00 ...HOSE...HOSE
-
590480-24003-00 ...GROMMET...GROMMET
-
690450-17M17-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
760E-24300-01-00 ...FUEL PIPE JOINT...FUEL PIPE JOINT
-
860T-14295-00-00 ...PIPE, FUEL...PIPE, FUEL
-
960T-13761-00-00 ...INJECTOR...INJECTOR
-
1060T-13766-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
1160T-14428-00-00 ...BOLT...BOLT
-
1290446-24M54-00 HOSE (L260)HOSE (L260)
-
1390465-13M36-00 CLAMPCLAMP
-
1460T-67252-00-00 CABLE, THROTTLECABLE, THROTTLE
-
1590446-07001-00 HOSE (L230)HOSE (L230)
-
1690446-07002-00 HOSE (L360)HOSE (L360)
-
1790446-07003-00 HOSE (L600)HOSE (L600)
-
1890447-07008-00 HOSE, WITH SPRING (L200)HOSE, WITH SPRING (L200)
-
1990447-07009-00 HOSE, WITH SPRING (L320)HOSE, WITH SPRING (L320)
-
2090447-07010-00 HOSE, WITH SPRING (L520)HOSE, WITH SPRING (L520)
-
2190468-02001-00 CLIPCLIP
-
2290465-13M36-00 CLAMPCLAMP
