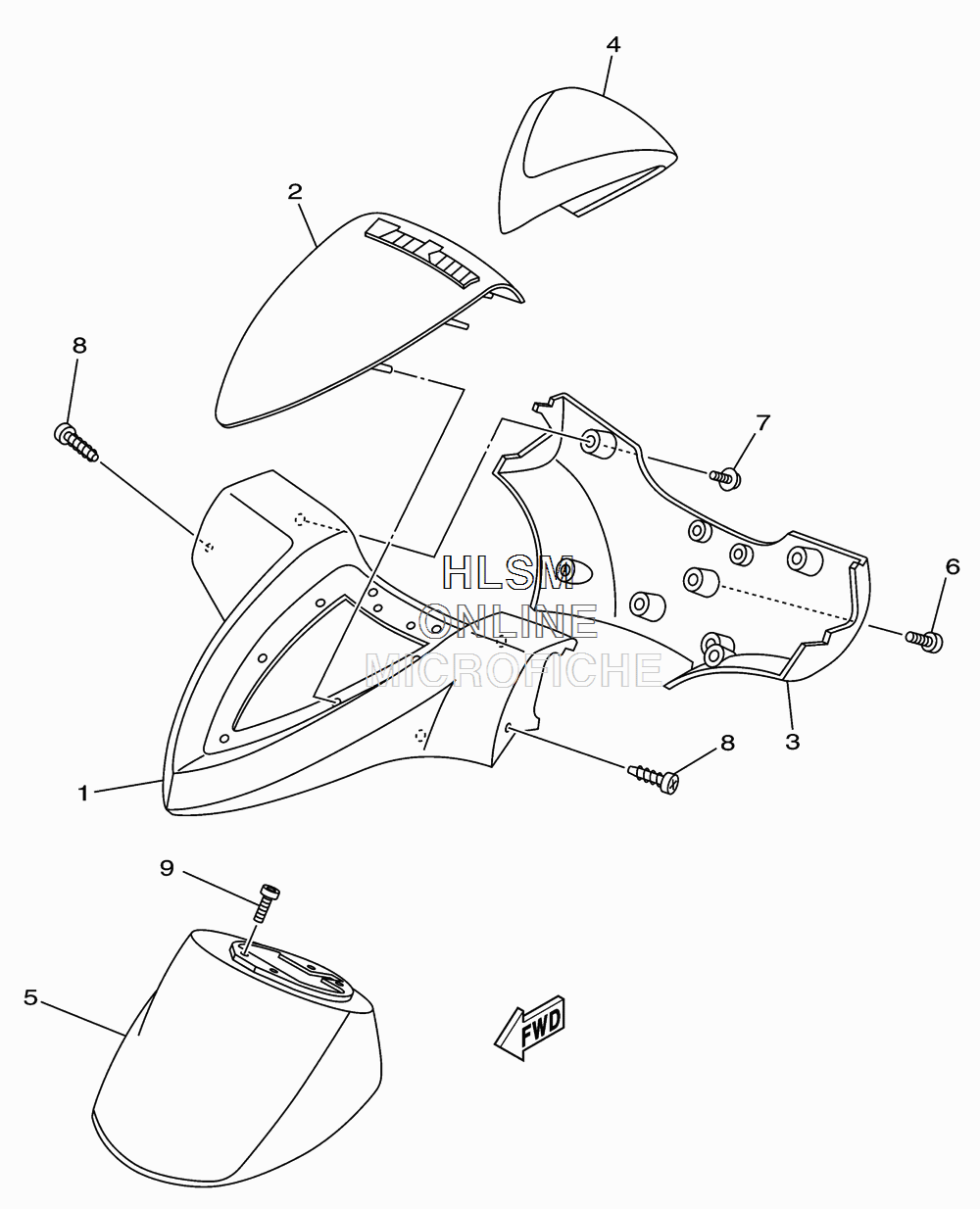

HANDLEBAR PAD для Yamaha FX HO - 2010 года выпуска
-
№АртикулНазвание
-
1F1W-U143D-01-00 PAD, STEERING 1PAD, STEERING 1
-
2F1W-U142D-00-00 COVER, PADCOVER, PAD
-
3F1W-U143E-01-00 PAD, STEERING 2PAD, STEERING 2
-
4F1W-U156E-00-00 PAD 1PAD 1
-
5F1S-U143L-02-00 PAD, STEERING 3PAD, STEERING 3
-
690154-06017-00 SCREW, BINDINGSCREW, BINDING
-
790149-05903-00 SCREWSCREW
-
890167-04003-00 SCREW, TAPPINGSCREW, TAPPING
-
990154-06030-00 SCREW, BINDINGSCREW, BINDING
