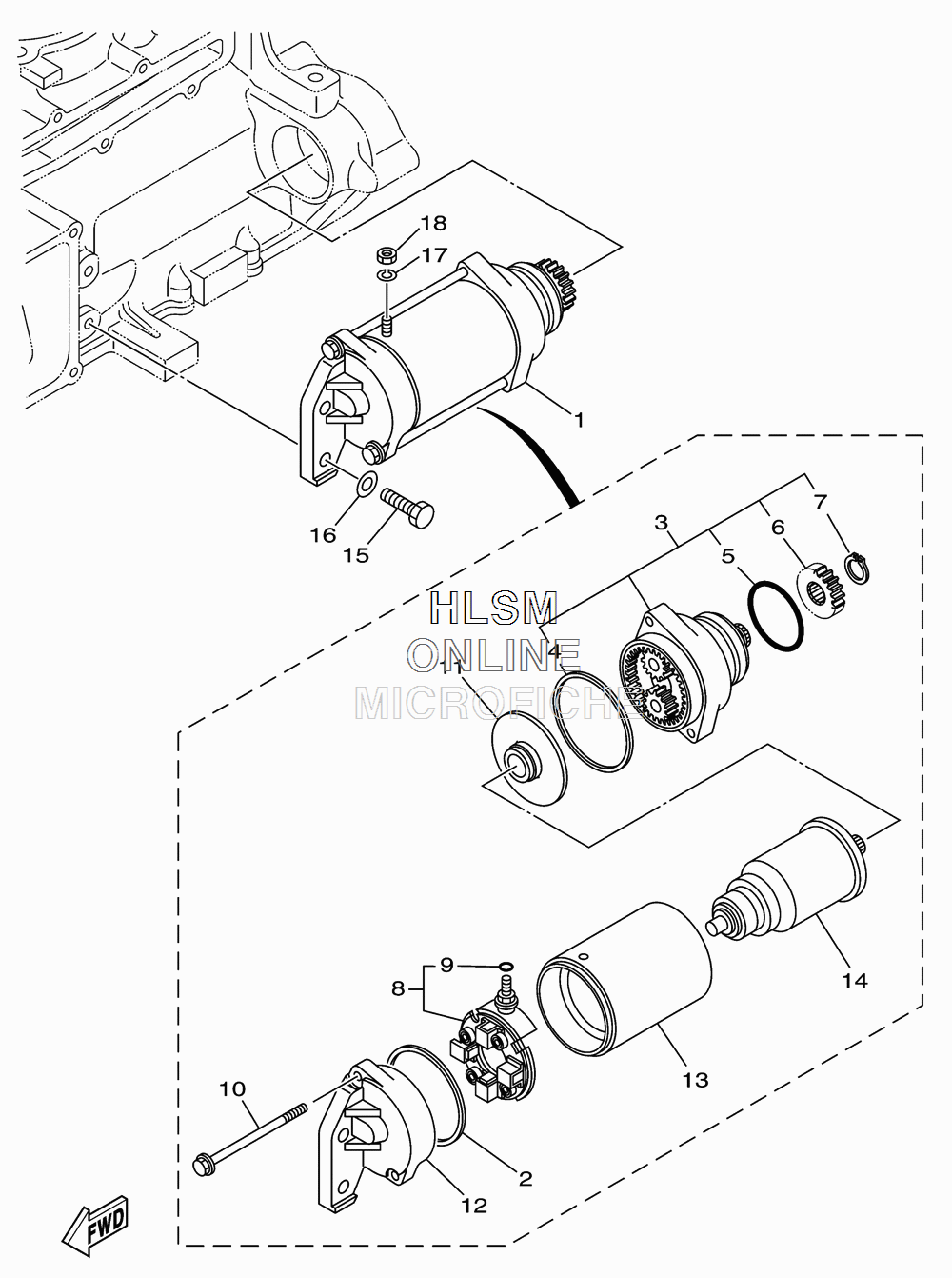

STARTING MOTOR для Yamaha FX HO - 2010 года выпуска`
-
№АртикулНазвание
-
16S5-81800-00-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
211H-81844-00-00 GASKETGASKET
-
36S5-81830-00-00 FRONT BRACKET ASSYFRONT BRACKET ASSY
-
44G0-81844-00-00 GASKETGASKET
-
51J7-81847-60-00 O-RINGO-RING
-
65EL-15511-00-00 GEAR, STARTING MOTORGEAR, STARTING MOTOR
-
793410-12003-00 CIRCLIPCIRCLIP
-
86S5-81840-00-00 BRUSH HOLDER ASSYBRUSH HOLDER ASSY
-
93TB-81847-00-00 O-RINGO-RING
-
106S5-81826-00-00 BOLTBOLT
-
115EL-81845-00-00 PLATEPLATE
-
126S5-81820-00-00 REAR BRACKET ASSYREAR BRACKET ASSY
-
136S5-81810-00-00 STATOR ASSYSTATOR ASSY
-
145A8-81850-10-00 ARMATURE ASSYARMATURE ASSY
-
1597013-08030-00 BOLTBOLT
-
1692903-08600-00 WASHER, PLATEWASHER, PLATE
-
1792990-06100-00 WASHER, SPRINGWASHER, SPRING
-
1895380-06700-00 NUTNUT
