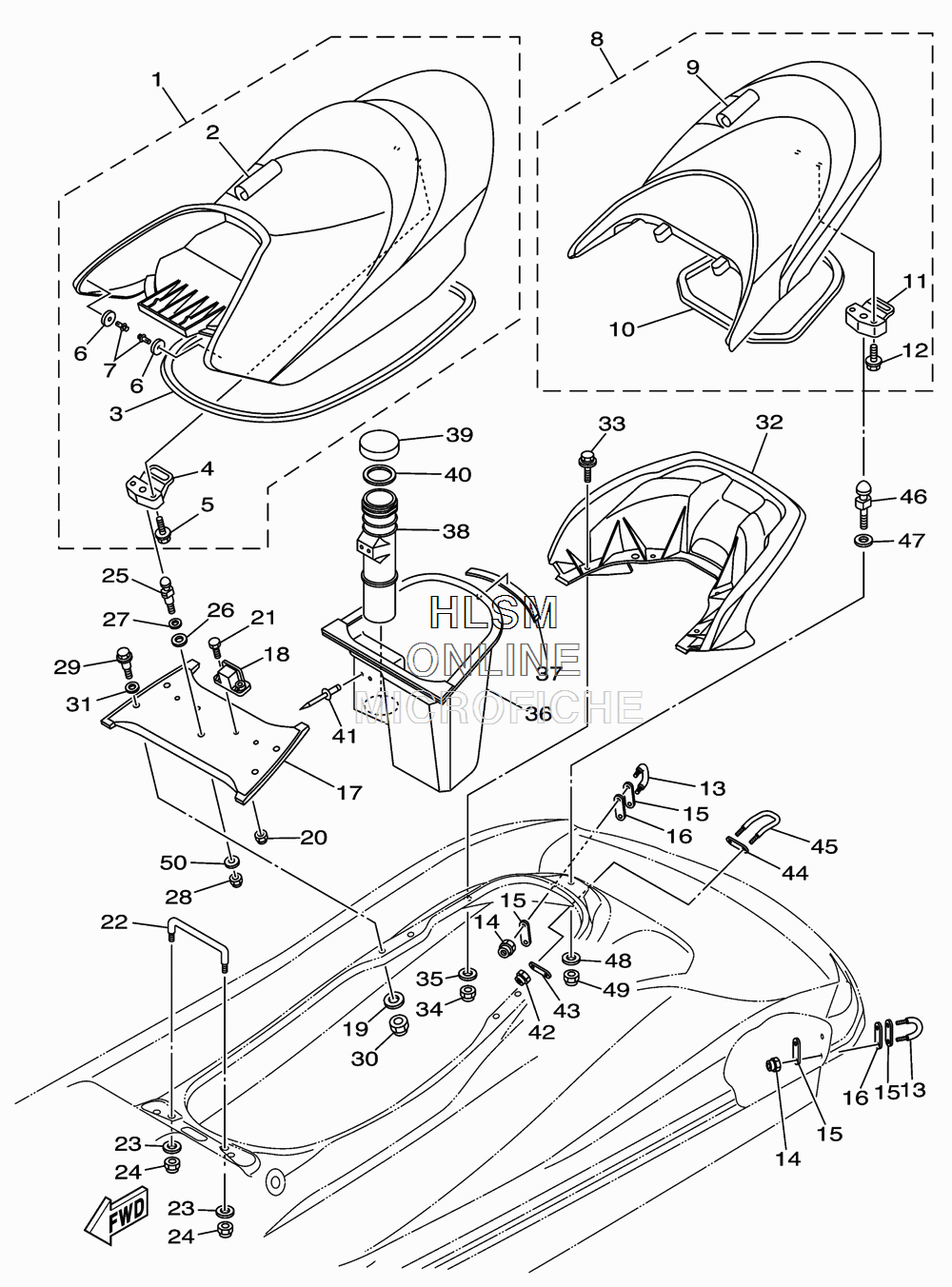

SEAT W/ UNDER LOCKER для Yamaha FX HO - 2010 года выпуска
-
№АртикулНазвание
-
1F1W-U371A-50-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
2F1W-U371B-50-00 COVER, SEAT 1COVER, SEAT 1
-
3F1W-U2664-01-00 PACKINGPACKING
-
4F1B-U3850-02-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
590119-069UP-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6F1W-U251C-00-00 BUMPER, SIDEBUMPER, SIDE
-
790267-48834-00 RIVET, BLINDRIVET, BLIND
-
8F1W-U372A-50-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
9F1W-U372B-50-00 COVER, SEATCOVER, SEAT
-
10F1W-U266D-00-00 PACKING 5PACKING 5
-
11F1B-U3850-02-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1290119-069UP-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
13F1K-61628-00-00 STERN EYESTERN EYE
-
149572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
15GP7-U4953-10-00 PLATE APLATE A
-
16F1B-U1653-01-00 PACKINGPACKING
-
17F1B-U8952-01-00 BEAM, DECK 1BEAM, DECK 1
-
18GU2-6378D-02-00 STAY,SEAT 2STAY,SEAT 2
-
199299R-08200-00 WASHERWASHER
-
209572R-06300-00 NUT, NYLONNUT, NYLON
-
2190101-069U0-00 BOLTBOLT
-
22F0X-6378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
2390201-099U3-00 WASHER, PLATEWASHER, PLATE
-
249572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
25F1B-U3774-00-00 PINPIN
-
26F0X-6375E-00-00 PACKING 1PACKING 1
-
2792990-12200-00 WASHER, PLAINWASHER, PLAIN
-
289572R-10300-00 NUT, NYLONNUT, NYLON
-
29F1B-U2624-00-00 BOLTBOLT
-
309572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
319299R-10200-00 WASHERWASHER
-
32F1B-U271B-00-00 GRIP, HAND (BLACK)GRIP, HAND (BLACK)
-
3390119-08942-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
349572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
359299R-08200-00 WASHERWASHER
-
36F1B-U4742-01-00 LOCKER, UNDER 2LOCKER, UNDER 2
-
37F0X-U266E-01-00 PACKING,6PACKING,6
-
38F0X-U5983-01-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
39EW2-U5912-01-00 CAP, CASECAP, CASE
-
40EW2-U5913-01-00 PACKING, CASEPACKING, CASE
-
4190267-489UP-00 RIVET, BLINDRIVET, BLIND
-
429572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
43GP7-U4953-10-00 PLATE APLATE A
-
44GP7-U4953-10-00 PLATE APLATE A
-
45F1B-U1629-00-00 SKI TOWSSKI TOWS
-
46GH1-U3774-00-00 PINPIN
-
4790201-109U6-00 WASHER, PLATEWASHER, PLATE
-
489299R-10200-00 WASHERWASHER
-
499572R-10300-00 NUT, NYLONNUT, NYLON
-
509299R-10200-00 WASHERWASHER
